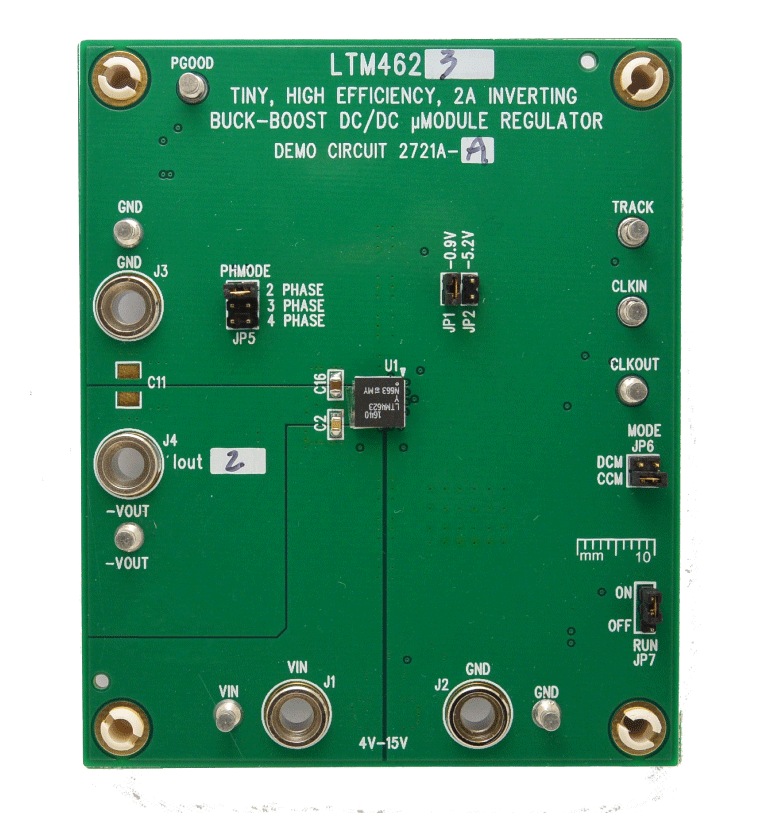

デモ回路 2721A-A では、小型の高性能・高効率降圧レギュレータである LTM4623 µModule^® レギュレータが反転昇降圧レギュレータとして構成されています。DC2721A-A は、4 V ～ 15 V の入力電圧範囲で動作し、最大 2 A の出力電流を供給することができます。出力電圧は、–0.6 V ～ –5.5 V の範囲でプログラムできます。LTM4623 は、すべての機能を熱強化型 6.25 mm × 6.25 mm × 1.82 mm LGA パッケージにまとめた DC/DC ポイント・オブ・ロード・レギュレータで、ほんの数個の入出力コンデンサしか必要としません。デモ回路 2721A-A を使用または変更する場合は、このデモ・マニュアルと併せて LTM4623 データシートを参照してください。

• Allows evaluation and prototyping of 60 GHz wireless data links to replace traditional mechanical connectors in moving joints
• 1 Gbps Ethernet interface on both sides of the wireless data link
• Fully programmable system allowing ultimate flexibility for custom developments
• Open-source software stack for firmware development
• Open-source GUI for system configuration, monitoring, and control

The ADMV96S-WGBE-EK1 is a complete evaluation and prototyping system for 60 GHz wireless data links. It consists of a pair of receiver and transmitter boards with a 1Gbp Ethernet interface on each side of the wireless link.

The 60 GHz wireless link is implemented by the ADMV9615 and ADMV9525 modules. These are coupled with a SerDes device which translates the modules’ SGMII interface to RGMII so that it can be connected to an ADIN1300 industrial low latency and low power 1 Gbps Ethernet PHY. This enables each side of the wireless link to act as an Ethernet port and essentially create a seamless wire-like connection between two ends of an Ethernet cable.

The on-board MAX32650 ultralow power ARM^® Cortex^®-M4 microcontroller controls the system’s operation and implements the algorithms to configure the wireless link in real time so that optimal link quality is constantly maintained over temperature and various operating conditions. An open-source software stack is provided for firmware development as well as reference applications. The MAX32650 can be programmed through a programming port which can also be used for firmware debugging.

The two sides of the wireless link are mounted on an adjustable rail so that the system can be configured and tested for various distances between the links. Each side of the link is powered from an external 12 V power supply.

An open-source GUI is provided for system configuration, monitoring, and control from a host PC.

APPLICATIONS

• 60 GHz wireless data links for industrial and medical high data rate applications
• High speed data for rotating applications, such as slip rings and magnetic resonance imaging systems
• Autonomous guided vehicles
• Mechanical Connector replacement

• 3D and 2D sensing
• AI Edge processing capability
• WiFi and Gigabit Ethernet connectivity
• Open Source SDK with Windows and Linux support

The AD-3DSMARTCAM1-PRZ is a 2D & 3D machine vision solution with AI edge processing capabilities. It can be used for implementing advanced machine vision applications for different industry segments including logistics, robotics, agriculture and people activity monitoring.

An open-source SDK that accompanies the hardware platform enables configuring the camera and extracting depth, IR and RGB data from the camera on the host system of your choice. Windows and Linux support are built into the SDK as well as sample code and wrappers for various languages including Python, C/C++ and MATLAB. The SDK also integrates with 3rd party technologies like OpenCV, Open3D and RoS.

APPLICATIONS

• Logistics
• Robotics
• Agriculture
• Building Management
• People Activity Monitoring

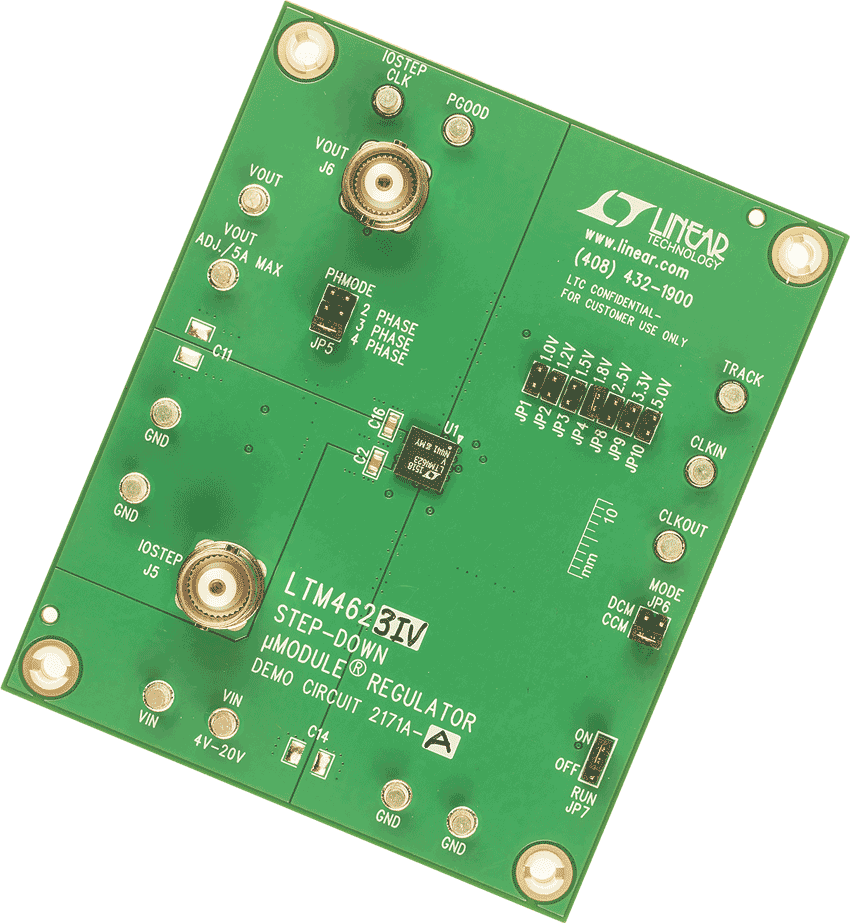

Demonstration circuit 2171A-A features the LTM4623 μModule^® regulator, a tiny low profile high performance step-down regulator. The LTM4623 has an operating input voltage range of 4V to 20V and is able to provide an output current of up to 3A. The output voltage is programmable from 0.6V to 5V. The LTM4623 is a complete DC/DC point of load regulator in a 6.25mm × 6.25mm × 1.82mm round pad LGA package requiring only a few input and output capacitors. Output voltage tracking is available through the TRACK/SS pin for supply rail sequencing.

• Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
• Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
• Our reference designs are supported by an intuitive design tool set and IP.
• ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
• For a complete list power designs and use cases, please contact your local FAE.

• Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
• Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
• Our reference designs are supported by an intuitive design tool set and IP.
• ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
• For a complete list power designs and use cases, please contact your local FAE.

• The ZCU104 Evaluation Kit enables designers to jumpstart designs for embedded vision applications such as surveillance, Advanced Driver Assisted Systems (ADAS), machine vision, Augmented Reality (AR), drones and medical imaging.


• The ADI Power delivery solutions support multiple reference designs using DC/DC module and monolithic solutions. ADI offers several options for powering the Zu7 FPGA.


• Our module-based solutions combine a small footprint, while maximizing efficiency and tight regulation. Our monolithic based solutions support a lower cost optimized power delivery solution for mass production.


• ADI provides supporting documentation to enable you to validate the power solution for your application seamlessly.


• For a complete list power designs and use cases, please contact your local FAE.


• Please refer to the circuit descriptions below that best support your design.
