MAX16910

量产

200mA、汽车、超低静态电流、线性稳压器

200mA汽车线性稳压器非常适合低静态电流、不间断应用

数据手册 (Rev. 8) 产品选型表

产品模型: 32

Viewing:

产品详情

帮助系统设计人员满足100μA静态电流的严格模块要求
- 低静态电流：20µA
- 高达200mA的输出电流能力

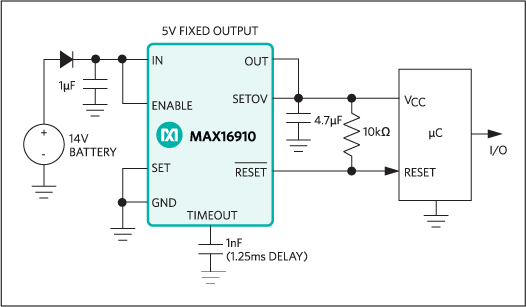

- 用户可选输出电压（+3.3V或+5V固定，通过外部电阻分压器的可调范围：+1.5V至+11V）
小型输出电容可减少电路板空间并降低BOM成本
- 采用4.7µF输出电容便可稳定工作
具有可调延迟的准确低电平有效RESET输出无需单独的复位IC
- 具有可调延迟的开漏低电平有效RESET输出
- 固定复位阈值选项：87.5%或92.5%
在冷启动条件下工作
- 200mA时低压差电压为280mV
- +3.5V至+30V宽输入电压范围，+45V容差
在汽车环境中性能稳定
- 热保护和短路保护
- 高压使能输入(+45V)
- 工作温度范围：-40°C至+125°C
- 符合汽车应用标准

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
MAX16910CASA8+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA8+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA8/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA8/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA9+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA9+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA9/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CASA9/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA8+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA8+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA8/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA8/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA9+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA9+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA9/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910CATA9/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DASA8/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DASA8/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DASA9/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DASA9/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DATA8/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DATA8/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DATA9/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910DATA9/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EASA8/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EASA8/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EASA9/V+	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EASA9/V+T	8-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EATA8/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EATA8/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EATA9/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16910EATA9/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

4月 17, 2017 - 1562_CANCELLATION DESIGN
		pcn_1562_cancellation
MAX16910CASA8+	量产
MAX16910CASA8+T	量产
MAX16910CASA8/V+	量产
MAX16910CASA8/V+T	量产
MAX16910CASA9+	量产
MAX16910CASA9+T	量产
MAX16910CASA9/V+	量产
MAX16910CASA9/V+T	量产
MAX16910CATA8+	量产
MAX16910CATA8+T	量产
MAX16910CATA8/V+	量产
MAX16910CATA8/V+T	量产
MAX16910CATA9+	量产
MAX16910CATA9+T	量产
MAX16910CATA9/V+	量产
MAX16910CATA9/V+T	量产
8月 11, 2015 - 1562 DESIGN
		pcn_1562
MAX16910CASA8+	量产
MAX16910CASA8+T	量产
MAX16910CASA8/V+	量产
MAX16910CASA8/V+T	量产
MAX16910CASA9+	量产
MAX16910CASA9+T	量产
MAX16910CASA9/V+	量产
MAX16910CASA9/V+T	量产
MAX16910CATA8+	量产
MAX16910CATA8+T	量产
MAX16910CATA8/V+	量产
MAX16910CATA8/V+T	量产
MAX16910CATA9+	量产
MAX16910CATA9+T	量产
MAX16910CATA9/V+	量产
MAX16910CATA9/V+T	量产
4月 27, 2024 - 2400 ASSEMBLY
		pcn_2400
MAX16910CATA8+	量产
MAX16910CATA8+T	量产
MAX16910CATA8/V+	量产
MAX16910CATA8/V+T	量产
MAX16910CATA9+	量产
MAX16910CATA9+T	量产
MAX16910CATA9/V+	量产
MAX16910CATA9/V+T	量产
MAX16910DATA8/V+	量产
MAX16910DATA8/V+T	量产
MAX16910DATA9/V+	量产
MAX16910DATA9/V+T	量产
MAX16910EATA8/V+	量产
MAX16910EATA8/V+T	量产
MAX16910EATA9/V+	量产
MAX16910EATA9/V+T	量产
6月 20, 2016 - 1612 ASSEMBLY
		pcn_1612
MAX16910CATA8+	量产
MAX16910CATA8+T	量产
MAX16910CATA9+	量产
MAX16910CATA9+T	量产
6月 18, 2021 - 2161 ASSEMBLY
		pcn_2161
MAX16910CATA8/V+	量产
MAX16910CATA8/V+T	量产
MAX16910CATA9/V+	量产
MAX16910CATA9/V+T	量产
MAX16910DATA8/V+	量产
MAX16910DATA8/V+T	量产
MAX16910DATA9/V+	量产
MAX16910DATA9/V+T	量产
MAX16910EATA8/V+	量产
MAX16910EATA8/V+T	量产
MAX16910EATA9/V+	量产
MAX16910EATA9/V+T	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
产品 1
MAX15006	不推荐用于新设计	40V、超低静态电流线性稳压器，6引脚TDFN/8引脚SO封装
正线性稳压器(LDO) 2
MAX15007	量产	40V、超低静态电流线性稳压器，6引脚TDFN/8引脚SO封装
MAX25210	量产	汽车超低静态电流线性稳压器系列
