LTM4601
LTM4601-1

PRODUCTION

12A µModule (Power Module) Regulator with PLL, Output Tracking and Margining

Data Sheet Product Selection Table
Part Models
10
1ku List Price
Starting From $18.78
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Hardware Ecosystem
  • Tools & Simulations
  • Evaluation Kits
  • Reference Designs
  • Latest Discussions
    •

    Part Details

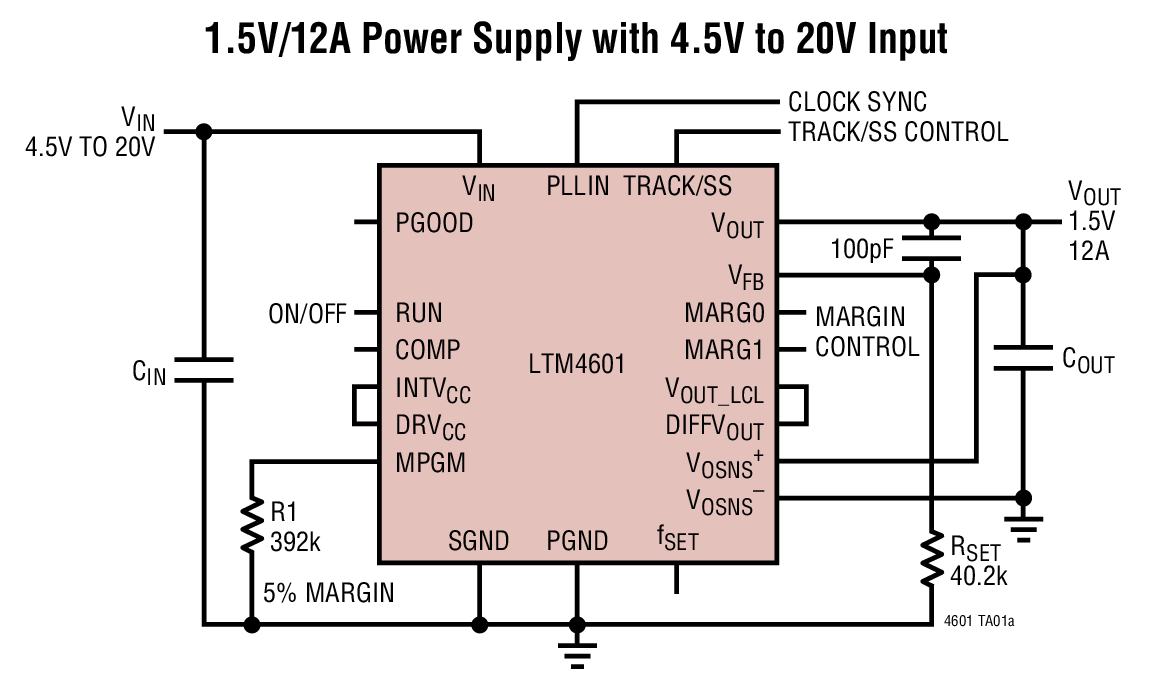

    • Complete Switch Mode Power Supply
    • Wide Input Voltage Range: 4.5V to 20V
    • 12A DC Typical, 14A Peak Output Current
    • 0.6V to 5V Output Voltage
    • Output Voltage Tracking and Margining
    • Parallel Multiple μModule Regulators for Current Sharing
    • Differential Remote Sensing for Precision Regulation (LTM4601 Only)
    • PLL Frequency Synchronization
    • ±1.5% Regulation
    • Current Foldback Protection (Disabled at Start-Up)
    • SnPb or RoHS Compliant Finish
    • UltraFast™ Transient Response
    • Current Mode Control

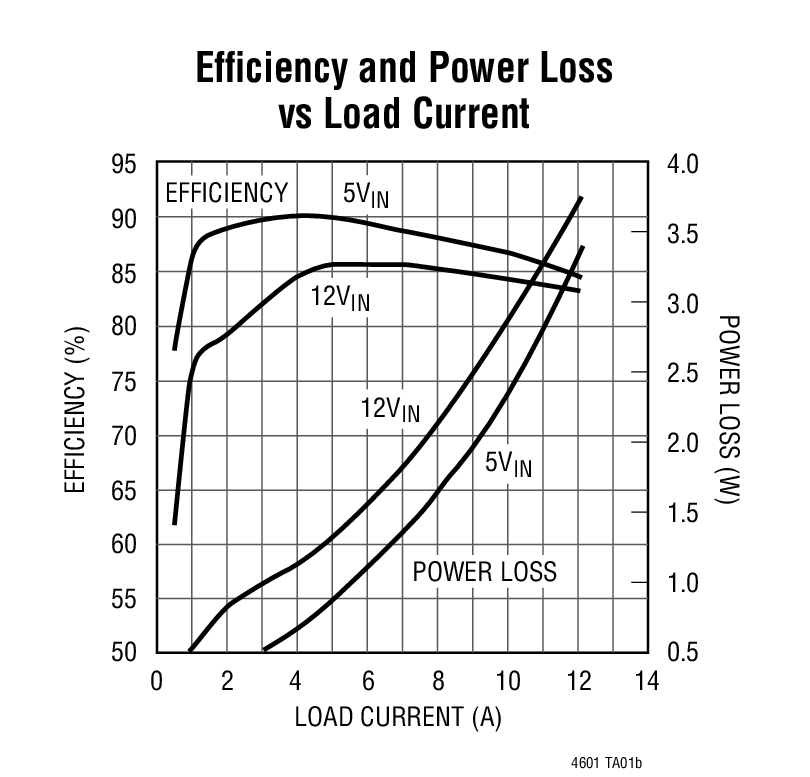

    • Up to 95% Efficiency at 5VIN, 3.3VOUT
    • Programmable Soft-Start
    • Output Overvoltage Protection

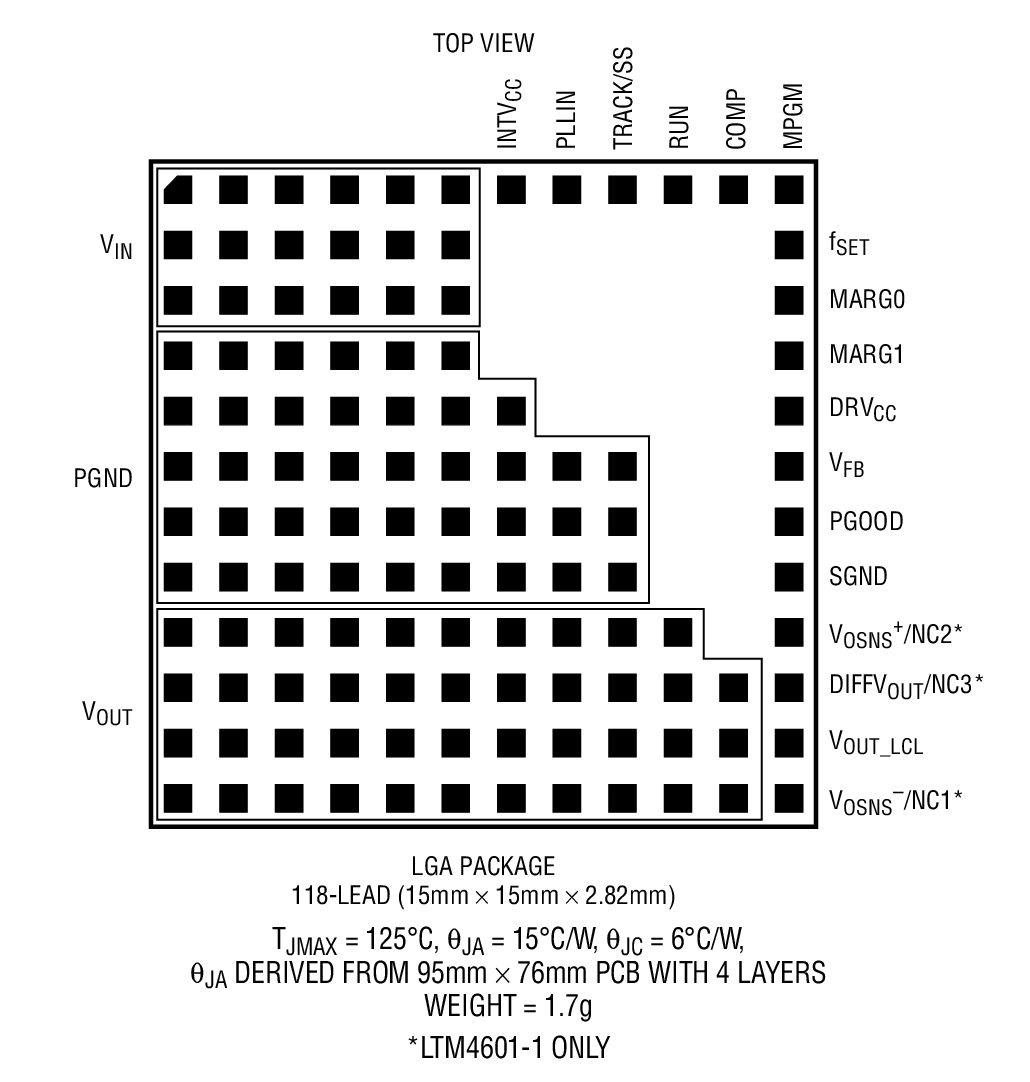

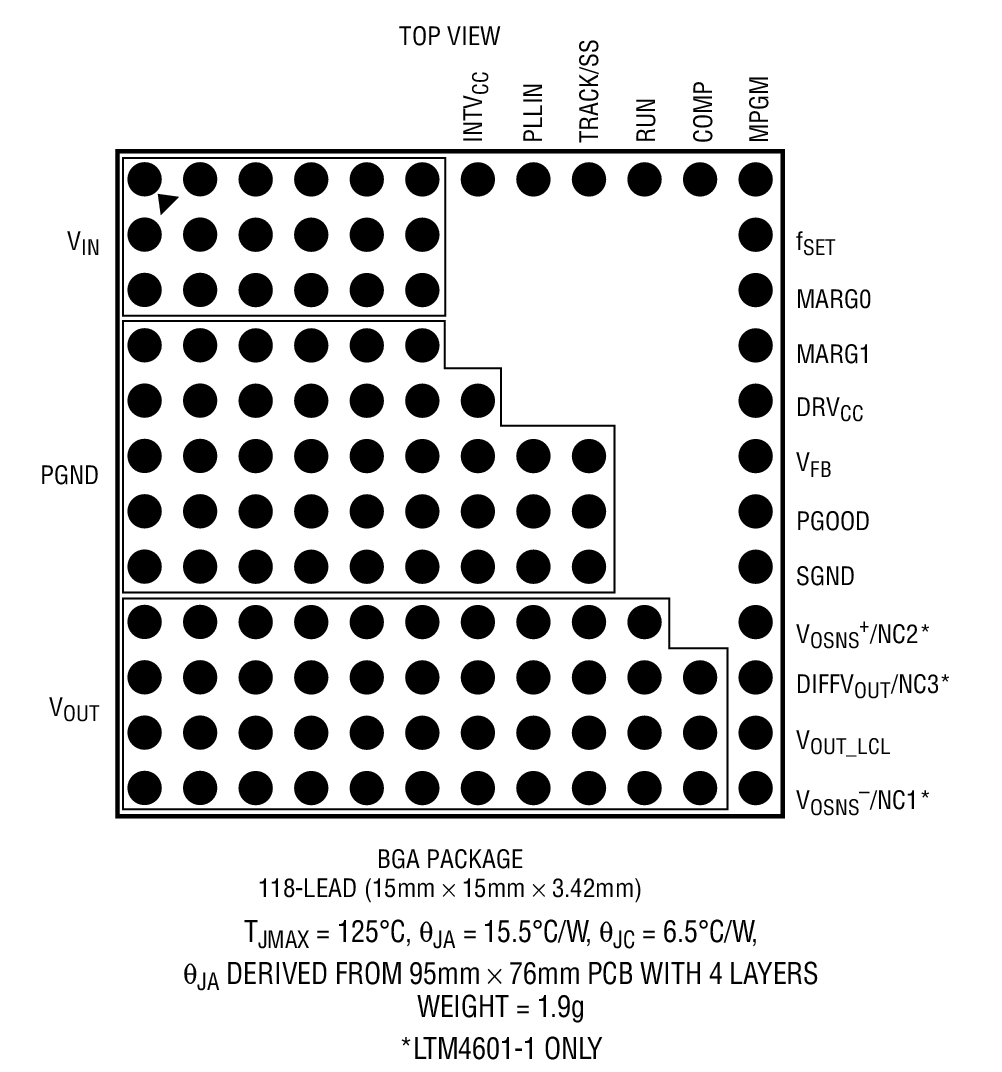

    • Small Footprint, Low Profile (15mm × 15mm × 2.82mm) Surface Mount LGA and (15mm × 15mm × 3.42mm) BGA Packages
    LTM4601
    LTM4601-1
    12A µModule (Power Module) Regulator with PLL, Output Tracking and Margining
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    User Guide 5

    Application Note 3

    Design Note 1

    Technical Articles 1

    Data Sheet

    This is the most up-to-date revision of the Data Sheet.

    Learn More
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Hardware Ecosystem

    Parts Product Life Cycle Description
    µModule Buck Regulators 1
    LTM4620A
    		PRODUCTION Dual 13A or Single 26A DC/DC μModule (Power Module) Regulator
    Digital Power System Managers 1
    LTC2974
    		RECOMMENDED FOR NEW DESIGNS 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
    Dual-Supply Monitors 1
    LTC2960
    		RECOMMENDED FOR NEW DESIGNS 36V Nano-Current Two-Input Voltage Monitor
    High Voltage Hot Swap Controllers 1
    LTC4364
    		RECOMMENDED FOR NEW DESIGNS Surge Stopper with Ideal Diode
    Silicon Oscillators 1
    LTC6908
    		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
    Modal heading
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Tools & Simulations

    LTspice 5

    Models for the following parts are available in LTspice:

    • LTM4601
    • LTM4601-1
    • LTM4601A
    • LTM4601A-1
    • LTM4601AHV
    • LTM4601HV
    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    Evaluation Kits

    eval board

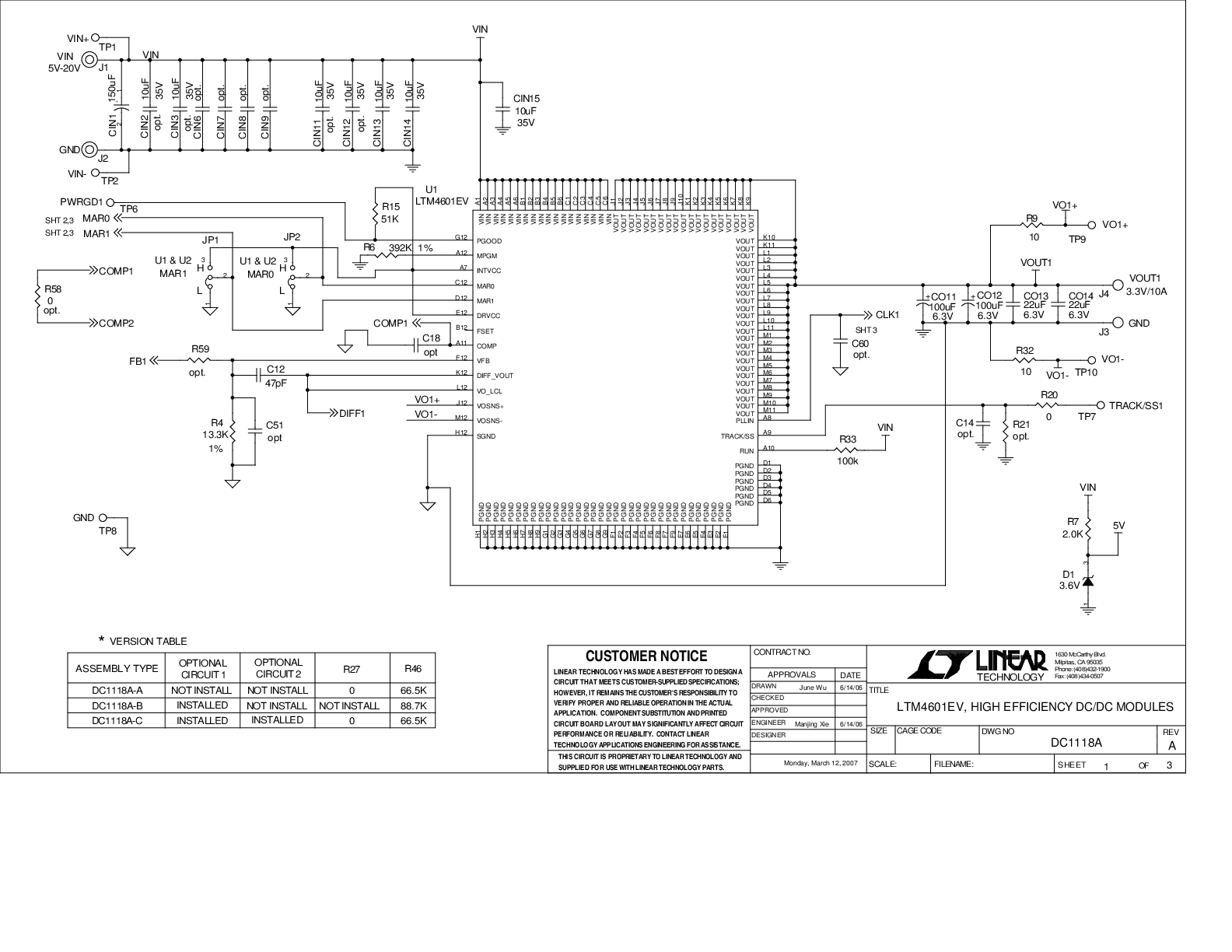

    schematic 1
    DC1118A-A

    LTM4601EV Demo Board | LTM4601(x2), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A

    Buy Now View Details

    Product Details

    Demonstration circuit 1118A-A features two independent LTM4601EV high efficiency, high density switch mode step-down power modules. The input voltage range is from 5V to 20V. The output voltages are 3.3V and 2.5V; refer to step down ratio curve in the LTM4601 datasheet. The rated load currents are 10A for the 3.3V output and 12A for the 2.5V output, while derating is necessary for certain VIN and thermal conditions. The output of U2 is set to coincidentally track with the 3.3V output. Margining function is provided for the user who wants to stress their system by varying supply voltages during testing. Integrated input and output filters enable a simple PCB layout. Only bulk input and output capacitors are needed.





    eval board
    schematic 2
    DC1041A-A

    LTM4601 Demo Board | 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 5V @ 12A

    Buy Now View Details

    Product Details

    Demonstration circuit DC1041A-A features the LTM4601EV, a 12A high efficiency, high density switch mode step-down converter. The input voltage range is from 4.5V to 20V. The output voltage is jumper selectable for popular voltages from 0.6V to 5V. The PLLIN pin supports synchronizing the μModule® regulator to an external clock. The TRACK/SS pin allows the user to program output ramp-up and ramp-down rates which may coincidentally or ratiometrically track with another supply’s output if desired. Output voltage margining of ±5% from the nominal value is available via the margin control pins MARG0 and MARG1.

    eval board
    schematic 3
    DC1043A-C

    LTM4601 Demo Board | LTM4601(×4), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 40A

    Buy Now View Details

    Product Details

    Demonstration circuit DC1043A-C features four LTM4601EV high efficiency, high density switch mode step-down power modules in parallel (the LTM4601-1 can be substituted for the slave devices). The input voltage range is from 5.0V to 20V. The output voltage is programmable from 0.6V to 3.3V; refer to step down ratio curve in the LTM4601 datasheet. The rated load current is 40A, while de-rating is necessary for certain VIN, VOUT, and thermal conditions. Master module U1 provides differential remote sensing to accurately regulate output voltage independent of load current. Integrated input and output filters enable a simple PCB layout. Only bulk input and output capacitors are needed externally.

    eval board
    schematic 4
    DC1118A-C

    LTM4601EV Demo Board | LTM4601(x4), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A, VOUT3 = 1.8V @ 12A, VOUT4 = 1.5V @ 12A

    Buy Now View Details

    Product Details

    Demonstration circuit 1118A-C features four independent LTM4601EV high efficiency, high density switch mode step-down power modules. The input voltage range is from 5V to 20V. The output voltages are 3.3V, 2.5V,1.8V and 1.5V; refer to step down ratio curve in the LTM4601 datasheet. The rated load currents are 10A for the 3.3V output, and 12A for the 2.5V, 1.8V and 1.5V outputs, while derating is necessary for certain VIN and thermal conditions. The output of U2 is set to coincidentally track with the 3.3V output. Margining function is provided for the user who wants to stress their system by varying supply voltages during testing. Integrated input and output filters enable a simple PCB layout; only bulk input and output capacitors are needed.





    eval board
    schematic 5
    DC1118A-B

    LTM4601EV Demo Board | LTM4601(x3), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A, VOUT3 = 1.8V @ 12A

    Buy Now View Details

    Product Details

    Demonstration circuit 1118A-B features three independent LTM4601EV high efficiency, high density switch mode step-down power modules. The input voltage range is from 5V to 20V. The output voltages are 3.3V, 2.5V and 1.8V; refer to step down ratio curve in the LTM4601 datasheet. The rated load currents are 10A for the 3.3V output, 12A for the 2.5V output and 12A for the 1.8V output, while derating is necessary for certain VIN and thermal conditions. The output of U2 is set to coincidentally track with the 3.3V output. Margining function is provided for the user who wants to stress their system by varying supply voltages during testing. Integrated input and output filters enable a simple PCB layout; only bulk input and output capacitors are needed.

    eval board
    schematic 6
    DC1043A-B

    LTM4601 Demo Board | LTM4601(×3), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 30A

    Buy Now View Details

    Product Details

    Demonstration circuit DC1043A-B features three LTM4601EV high efficiency, high density switch mode step-down power modules in parallel (the LTM4601-1 can be substituted for the slave devices). The input voltage range is from 5.0V to 20V. The output voltage is programmable from 0.6V to 3.3V; refer to step down ratio curve in the LTM4601 datasheet. The rated load current is 30A, while de-rating is necessary for certain VIN, VOUT, and thermal conditions. Master module U1 provides differential remote sensing to accurately regulate output voltage independent of load current. Integrated input and output filters enable a simple PCB layout. Only bulk input and output capacitors are needed externally.

    eval board

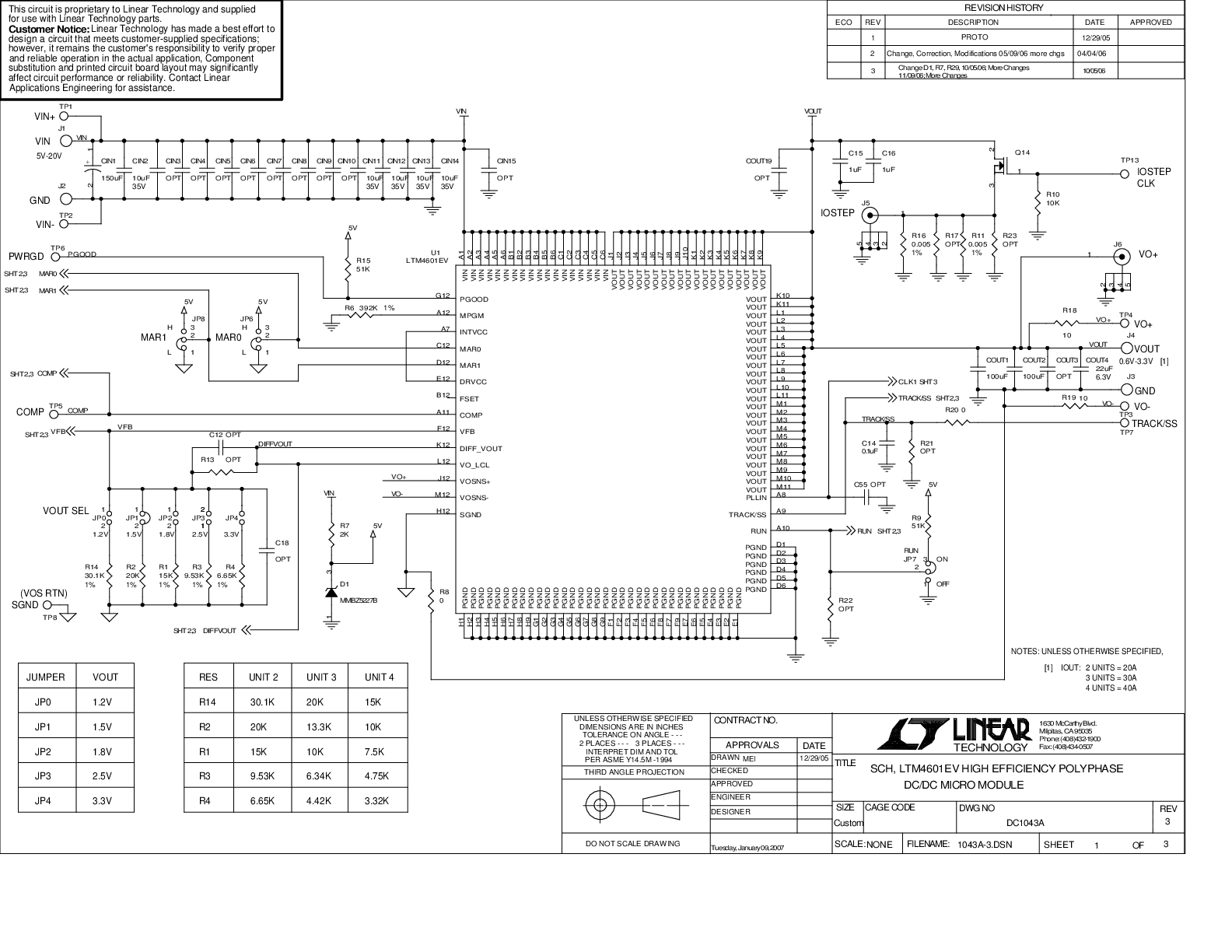

    schematic 7
    DC1043A-A

    LTM4601 Demo Board | LTM4601(×2), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 20A

    Buy Now View Details

    Product Details

    Demonstration circuit DC1043A-A features the LTM4601EV and LTM4601-1EV, the high efficiency, high density switch mode step-down power modules. The input voltage range is from 5.0V to 20V. The output voltage is programmable from 0.6V to 3.3V; refer to step down ratio curve in the LTM4601 datasheet. The rated load current is 20A, while de-rating is necessary for certain VIN, VOUT, and thermal conditions. 24A load current can be achieved by applying forced airflow convection or attaching heatsinks. Master module U1 provides differential remote sensing to accurately regulate output voltage independent of load current. Integrated input and output filters enable a simple PCB layout. Only bulk input and output capacitors are needed externally. The DC1043A-A has on-board 180 degree interleaving clock generator.
    DC1118A-A
    LTM4601EV Demo Board | LTM4601(x2), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A
    DC1041A-A
    LTM4601 Demo Board | 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 5V @ 12A
    DC1043A-C
    LTM4601 Demo Board | LTM4601(×4), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 40A
    DC1118A-C
    LTM4601EV Demo Board | LTM4601(x4), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A, VOUT3 = 1.8V @ 12A, VOUT4 = 1.5V @ 12A
    DC1118A-B
    LTM4601EV Demo Board | LTM4601(x3), 5V ≤ VIN ≤ 20V, VOUT1 = 3.3V @ 10A, VOUT2 = 2.5V @ 12A, VOUT3 = 1.8V @ 12A
    DC1043A-B
    LTM4601 Demo Board | LTM4601(×3), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 30A
    DC1043A-A
    LTM4601 Demo Board | LTM4601(×2), 5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 20A

    Reference Designs

    DK-DEV-5AGXB3NES Dev Kit
    DK-DEV-5AGXB3NES Dev Kit
    LTC Parts List
    DK-DEV-5AGXB3NES Block Diagram
    DK-DEV-5AGXB3NES Power Tree
    Altera Arria V GX FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-VIDEO-4SGX230N Dev Kit
    DK-VIDEO-4SGX230N Dev Kit
    LTC Parts List
    DK-VIDEO-4SGX230N Block Diagram
    DK-VIDEO-4SGX230N Power Tree
    Altera Audio Video Development Kit, Stratix IV GX Edition Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-DEV-3C120N Dev Kit
    DK-DEV-3C120N Dev Kit
    LTC Parts List
    DK-DEV-3C120N Block Diagram
    DK-DEV-3C120N Power Tree
    Altera Cyclone III FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-DSP-3C120N Dev Kit
    DK-DSP-3C120N Dev Kit
    LTC Parts List
    DK-DSP-3C120N Block Diagram
    DK-DSP-3C120N Power Tree
    Altera DSP Development Kit, Cyclone III Edition Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-EMB-3C120N Dev Kit
    DK-EMB-3C120N Dev Kit
    DK-EMB-3C120N Block Diagram
    DK-EMB-3C120N Power Tree
    Altera Embedded Systems Development Kit, Cyclone III Edition Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-DEV-4SE530N Dev Kit
    DK-DEV-4SE530N Dev Kit
    LTC Parts List
    DK-DEV-4SE530N Block Diagram
    DK-DEV-4SE530N Block Diagram
    Altera Stratix IV E FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-DEV-4SGX230N Dev Kit
    DK-DEV-4SGX230N Dev Kit
    LTC Parts List
    DK-DEV-4SGX230N Block Diagram
    DK-DEV-4SGX230N Power Tree
    Altera Stratix IV GX FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-SI-4SGX230N Kit
    DK-SI-4SGX230N Kit
    LTC Parts List
    DK-SI-4SGX230N Block Diagram
    DK-SI-4SGX230N Power Tree
    Altera Transceiver Signal Integrity Kit, Stratix IV GX Edition Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DE4 Dev Kit
    DE4 Dev Kit
    DE4 Block Diagram
    DE4 Power Tree
    Terasic DE4 Development and Education Board Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DE5-Net Dev Kit
    DE5-Net Dev Kit
    LTC Parts List
    DE5-Net Block Diagram
    DE5-Net Power Tree
    Terasic DE5-Net Stratix V Board Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

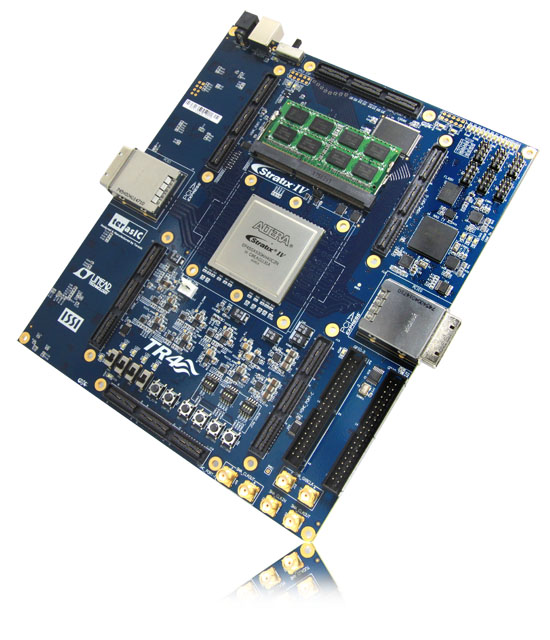

    TR4 Stratix IV Board
    TR4 Stratix IV Board
    LTC Parts List
    TR4 Stratix IV Block Diagram

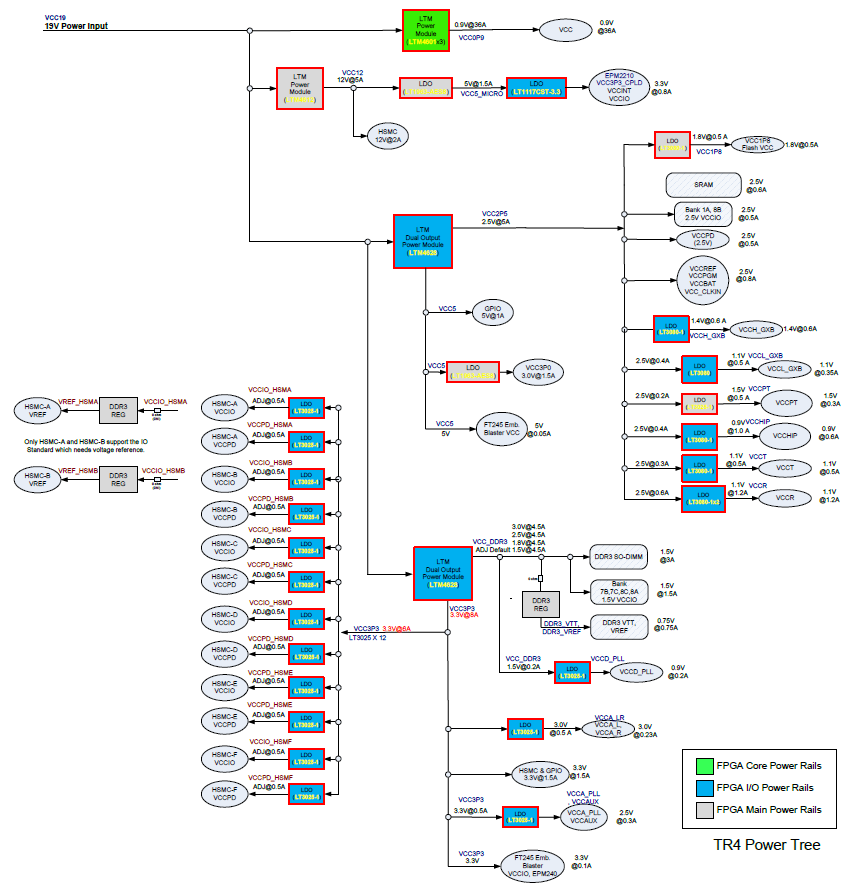

    TR4 Stratix IV Power Tree
    Terasic TR4 Stratix IV Board Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    TR5-F40W Dev Kit
    TR5-F40W Dev Kit

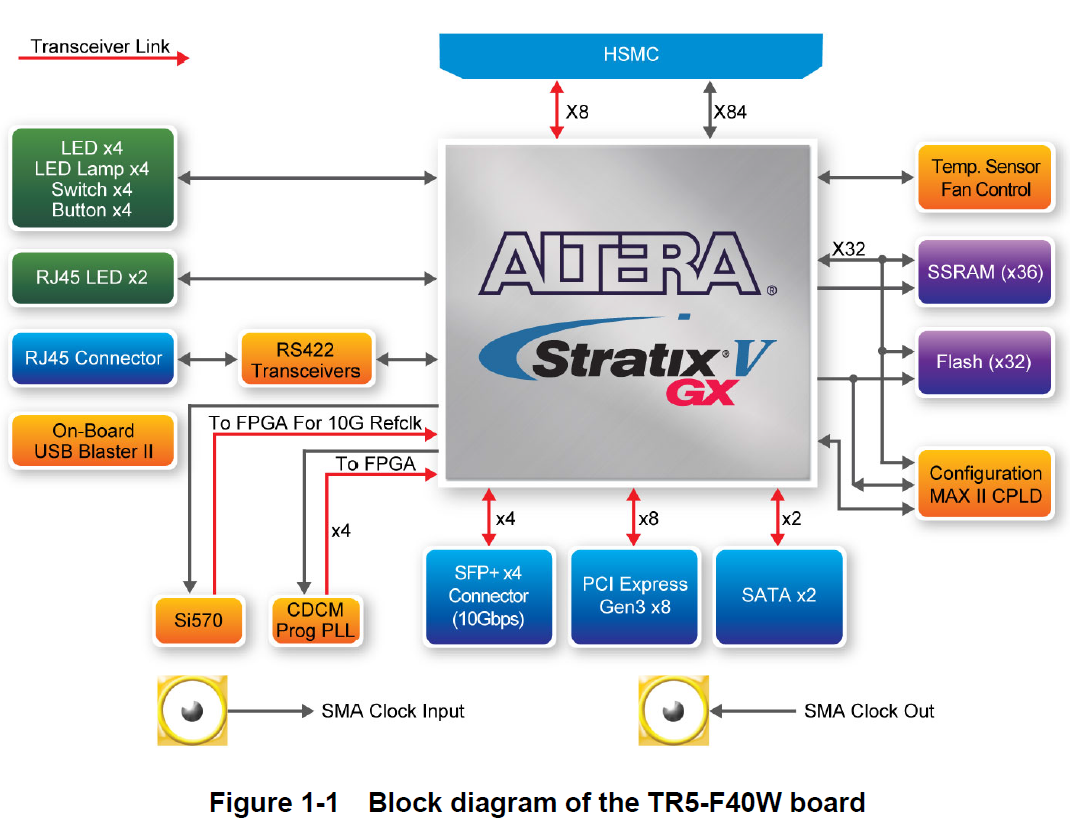

    TR5-F40W Block Diagram
    TR5-F40W Power Tree
    Terasic TR5-F40W Stratix V GX FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-100G-5SGXEA7N Dev Kit
    DK-100G-5SGXEA7N Dev Kit
    DK-100G-5SGXEA7N Parts List
    DK-100G-5SGXEA7N Block Diagram
    DK-100G-5SGXEA7N Block Diagram
    DK-100G-5SGXEA7N Power Tree
    Altera 100G Development Kit, Stratix V Edition Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    DK-DEV-5AGTD7N Dev Kit
    DK-DEV-5AGTD7N Dev Kit
    LTC Parts List
    DK-DEV-5AGTD7N Block Diagram
    DK-DEV-5AGTD7N Block Diagram
    DK-DEV-5AGTD7N Power Tree
    Altera Arria V GT FPGA Development Kit Circuits from the lab

    View Detailed Reference Design

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    Altera Arria V GX FPGA Development Kit
    Altera Audio Video Development Kit, Stratix IV GX Edition
    Altera Cyclone III FPGA Development Kit
    Altera DSP Development Kit, Cyclone III Edition
    Altera Embedded Systems Development Kit, Cyclone III Edition
    Altera Stratix IV E FPGA Development Kit
    Altera Stratix IV GX FPGA Development Kit
    Altera Transceiver Signal Integrity Kit, Stratix IV GX Edition
    Terasic DE4 Development and Education Board
    Terasic DE5-Net Stratix V Board
    Terasic TR4 Stratix IV Board
    Terasic TR5-F40W Stratix V GX FPGA Development Kit
    Altera 100G Development Kit, Stratix V Edition
    Altera Arria V GT FPGA Development Kit

    Latest Discussions

    2 Years Ago
    RE: LTM4601-Output voltage is 5V
    3 Years Ago
    RE: What is the difference between LTM4601A and LTM4601?
    View related discussion on EngineerZone®

    Recently Viewed

    LT3028
    RECOMMENDED FOR NEW DESIGNS
    Dual 100mA/500mA Low Dropout, Low Noise, Micropower Regulators with Independent Inputs
    AD5112
    PRODUCTION
    Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer
    LT1025
    PRODUCTION
    Micropower Thermocouple Cold Junction Compensator
    AD9850
    PRODUCTION
    CMOS, 125 MHz Complete DDS Synthesizer
    LT3572
    PRODUCTION
    Dual Full-Bridge Piezo Driver with 900mA Boost Converter
    LT1611
    PRODUCTION
    Inverting 1.4MHz Switching Regulator in 5-Lead SOT-23
