MAX96717F

新規設計に推奨

CSI-2 to GMSL2 Serializer

Industry Leading Automotive Grade 2 SerDes for Low to Mid Resolution Cameras (Up to 4MP)

データシート (Rev. 6) 製品セレクション・テーブル

製品モデル: 4
1Ku当たりの価格: 最低価格：$5.01

Viewing:

製品の詳細

Automotive Grade High Speed Link
- -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
- Auto Adapt for Changes in Channel Conditions
- Operates at -40°C to +105°C Ambient
Four-Lane D-PHY MIPI CSI-2 v1.3 Input Port
- 16 Virtual Channels
- Supports any CSI-2 Data Type in Tunneling Mode
Advanced MIPI D-PHY v1.2 Receivers Rated at 2.5Gbps
- Polarity Flip and Data Lane Reassignment
Full-Duplex Capability Over a Single Wire
- 3Gbps Forward-Link Rate
- 187.5Mbps Reverse-Link Rate
CSI-2 ECC, Checksum Local, Remote Error Detection, and Flagging

ASIL-B Compliant
- End-to-End Data Integrity through CRC in Tunneling Mode
- R-S FEC for Protection of Forward Video and Control-Channel Data
- CRC Protection of Side-Channel and Video Data
Concurrent Side Channel for Device Configuration and Communication with Peripherals
- I²C/UART, Pass-Through I2C/UART, SPI, GPIO, and Register-Programmable GPIO
Reference Over Reverse (RoR) Clocking Supports Crystal-Free Operation
Generates Reference Clock for Image Sensor
Die Temperature Monitor, Internal and External Supply Voltage Monitor
Compact 5mm x 5mm TQFN Side-Wettable Package with 0.5mm Pitch

The MAX96717F GMSL^™ serializer receives video on a MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded-Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I²C/UART interface or across the link from a matching deserializer. The MAX96717F includes two I²C/UART pass-through channels, flexible GPIO, SPI tunnel, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100 Grade 2 qualified.

Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Table 1 in the data sheet provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 channel specification.

Table 1. Typical Maximum Cable Length vs. Attenuation
	3.2mm Ø 50Ω Coax, Foam Dielectric	2.7mm Ø 50Ω Coax, Solid Dielectric	100Ω Shielded Twisted Pair, AWG26
Attenuation at 3GHz (Typ, Room Temp)	0.9dB/m	1.6dB/m	1.8dB/m
Attenuation at 3GHz (Max, Aged, +105°C)	1.1dB/m	2.0dB/m	2.2dB/m
GMSL Fwd/Rev Data Rate	Typical Maximum Cable Length at +105°C (m)
3Gbps/187.5Mbps	20	10	11

Applications

Advanced Driver Assistance Systems (ADAS)
- LiDAR Systems
- RADAR Systems
4Mp 40fps Forward-Vision Camera (FVC) Systems
Surround View Systems (SVS)
Driver Monitor Systems (DMS)
Rear-View Camera (RVC)
Systems with Multiple Synchronized Cameras

製品モデル: 4
1Ku当たりの価格: 最低価格：$5.01

ドキュメント

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
MAX96717FGTJ/V+	32-TQFN-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/V+T	32-TQFN-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/VY+	32-TQFN_SW-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/VY+T	32-TQFN_SW-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys

製品モデル	製品ライフサイクル	PCN

12 20, 2024 - 2451 ASSEMBLY
		pcn_2451
MAX96717FGTJ/V+	製造中
MAX96717FGTJ/VY+	製造中
MAX96717FGTJ/VY+T	製造中
2 25, 2024 - 2409 TEST
		pcn_2409
MAX96717FGTJ/V+	製造中
MAX96717FGTJ/VY+	製造中
MAX96717FGTJ/VY+T	製造中
4 10, 2020 - 1950 ASSEMBLY
		pcn_1950
MAX96717FGTJ/VY+	製造中	pcn_1950

これは最新改訂バージョンのデータシートです。

ツールおよびシミュレーション

ソフトウェア開発 2

IBISモデル 1

MAX96717F IBIS Model

評価用キット

GMSL EV Kit Adapter Board

今すぐ購入詳細を表示

機能と利点

Allows utilization of GMSL serializer EV kits with a wide range of cameras having 15-pin or 22-pin ribbon cable connectors such as the RPI Camera
Allows utilization of GMSL deserializer EV kits with various processing platforms supporting the 15-pin or 22-pin ribbon cable camera connector, such as the Raspberry Pi or the Nvidia development platforms

製品詳細

The AD-GMSLCAMRPI-ADP# enables connecting GMSL serializer and deserializer EV kits to a wide range of cameras and processing platforms supporting industry standard ribbon cable connectors. The adapter consists of three sections that can be broken apart from each other, having with the following functionalities:

Two ribbon cable adapters containing a 15-pin and a 22-pin connector routed to each other. The 15-pin connector supports 2 MIPI lanes, while the 22-pin connector supports 4 MIPI lanes.
A GMSL serializer EV kit adapter with two 22-pin ribbon cable connectors, for connecting cameras to either of the input MIPI ports of the GMSL serializers
A GMSL deserializer EV kit adapter with a22-pin ribbon cable connector connected to each of the output MIPI ports, for connecting to Raspberry Pi and Nvidia development platforms, or other processing platform supporting the 15-pin or 22-pin ribbon cable connector. A USB Type-A connector is available to supply 5V @ 4A.

For a detailed look at all GMSL-2 features, including information on how to use the parts, see the newest GMSL-2 User Guide found in Analog Devices’ GMSL customer portal folder. For more information on how to design customized hardware with GMSL2 devices, see the newest GMSL2 Hardware Design Guide in Analog Devices’ GMSL customer portal folder. Finally, in the similar folders, evkit documentation and guides can be found.

APPLICATIONS

High-Resolution Camera Systems
Autonomous Guided Vehicles
Advanced Driver Assistance Systems (ADAS)

資料

AD-GMSLCAMRPI-ADP# Design & Integration Files
12.54 M

AD-GMSLCAMRPI-ADP# User Guide

ソフトウェア

AD-GMSLCAMRPI-ADP# Software

Evaluation Kit for the MAX96717, MAX96717F, and MAX96717R

今すぐ購入詳細を表示

機能と利点

Ability for Serializer to send GMSL data to Deserializer, converting it into MIPI CSI-2
Windows 10 or Higher Compatible Software Support
USB Controlled Interface (Cable Included)
Powerful and Simple GUI for Comprehensive Device Feature Evaluation
Board Powered by USB, 12V Wall Adapter or External Power Supply
Proven PCB Layout
Fully Assembled and Tested

製品詳細

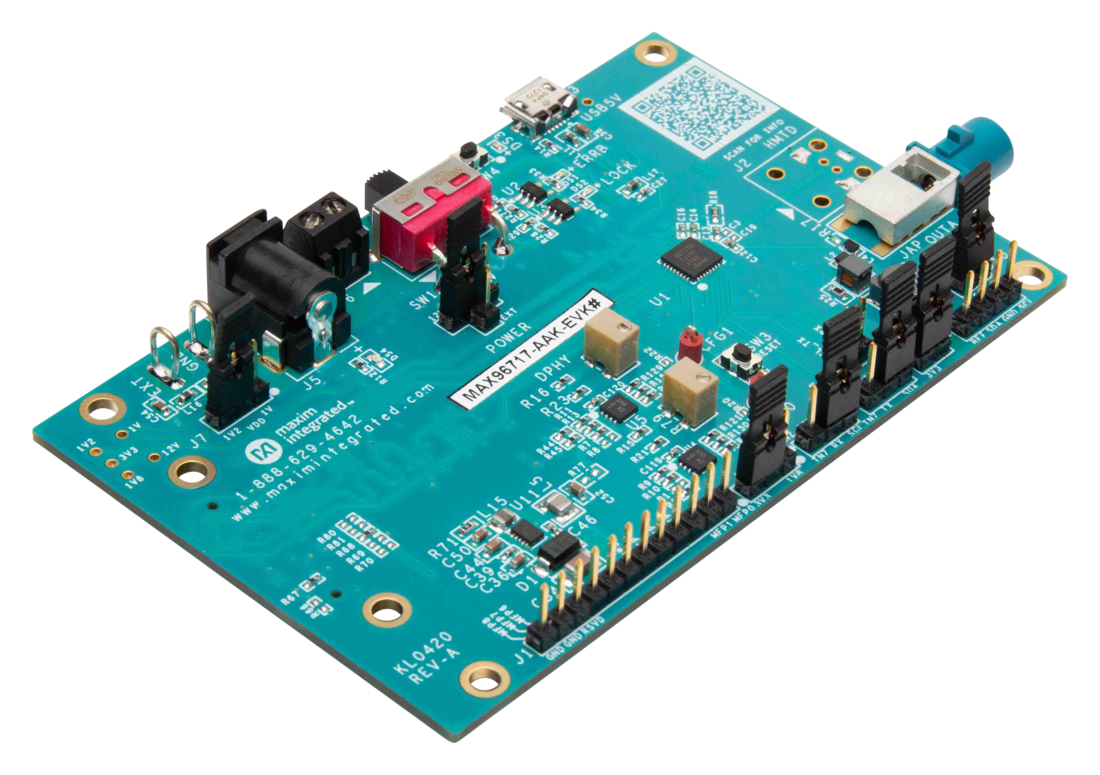

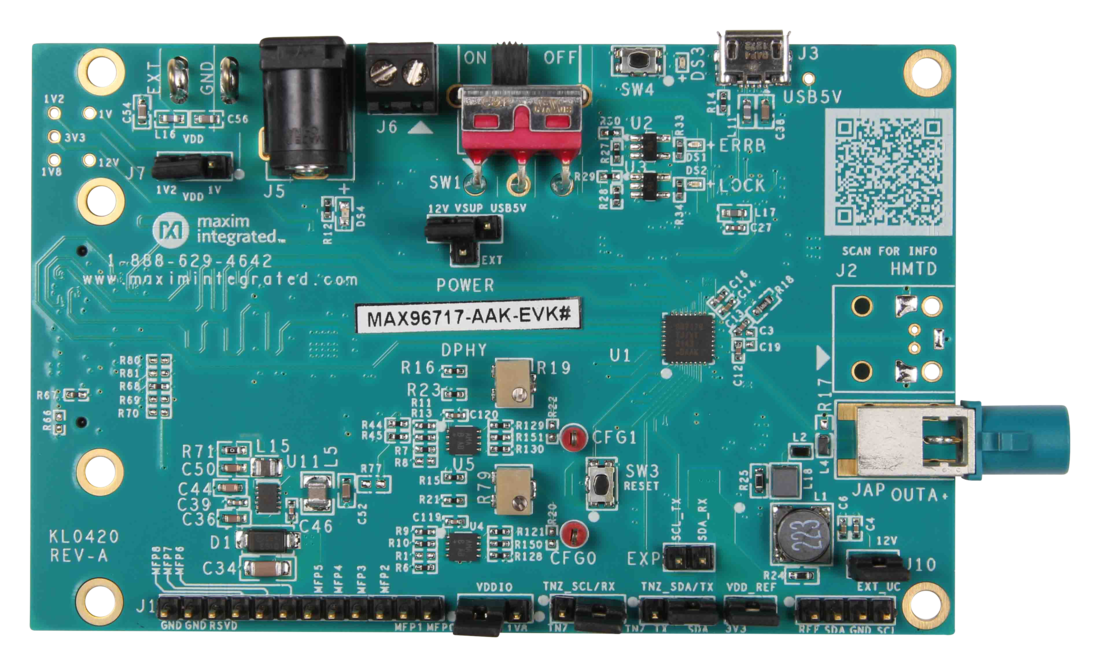

The MAX96717 DPHY evaluation kit (EV kit) provides a proven design to evaluate the MAX96717 high-bandwidth gigabit multimedia serial link (GMSL) serializer with spread spectrum and full-duplex control channel using a standard FAKRA coaxial (Coax) or HMTD cable. The EV kit also includes Windows^® 7 and Windows^® 10 software that provides a simple graphical user interface (GUI) for exercising features of the device. The EV kit comes with a MAX96717, MAX96717F, or MAX96717R IC installed.

For complete GMSL evaluation using a standard FAKRA coaxial cable or HMTD cable, order the MAX96717 Coax EV kit and a companion deserializer board (MAX96716 Coax EV kit referenced in the data sheet).

資料

MAX96717F-AAK-EVK ODB Files
1.87 M

MAX96717 DPHY Evaluation Kit ODB Files
1.87 M

MAX96717F Gerber Files
1.8 K
