AD3301

新規設計に推奨

10BASE-T1S Ethernet to the Edge Bus (E²B) Transceiver

データシート (Rev. SpB)

製品モデル: 4
1Ku当たりの価格: 価格は未定

Viewing:

製品の詳細

10BASE-T1S IEEE 802.3-2022 compliant PHY with support for PLCA and an integrated MAC
10BASE-T1S PHY operating modes
- Point-to-point half-duplex (≥ 15 m)
- Multidrop configuration half-duplex (≥ 25 m, ≥ 8 nodes)
PLCA features: PLCA coordinator, burst mode, precedence mode, and multiple PLCA IDs
MAC Features
- AD3300 only: OPEN Alliance 10BASE-T1x MAC-PHY serial interface
- AD3300 only: Transmit priority queues
- 16 MAC address filters
IEEE 802.1AS / IEEE 1588 support for TSN using the gPTP combined with sensor timestamping and actuator synchronization
Low Complexity Ethernet Engine
- Provides a deterministic, low-latency data path between 10BASE-T1S to the SAIF
- 12 SAIF pins support simultaneous operation of several common sensor/actuator interface standards and functions, including SPI, I²C, UART, PWM, GPIO, Flexible I/O, and bridge to LIN
- SMC enables periodic read and write functions on all interfaces
- AD3300 supports dual mode: MAC-PHY and LCE operation simultaneously
- AD3304/5 only: Bridge to ISELED and ILaS
OPEN Alliance features sleep/wake-up, topology discovery, and advanced diagnostics

Enable output pin (EN) to power down the regulated supply inputs in sleep mode
Support for local (WAKE input pin) and network (wake-up pulse) wake

Suitable for 12 V, 24 V, 48 V automotive electrical systems or operating from 5 V levels only
Detection capability for overvoltage and undervoltage events when monitoring the VBAT pin
General-purpose ADC
SSC for handling fault conditions
Low-current 3.3 V LDO using the LVDD pin as an output
Compatible with power delivery over data cable
Provides robust EMC/EMI performance
- Low cost bus interface network with no external ESD components required
- Enhanced noise immunity providing additional performance for noisy environments
Low power consumption: maximum current of 50 mA in functional modes of operation and 40 μA in sleep mode
1.8 V to 3.3 V I/O logic levels with support for 5 V inputs
−40°C to +150°C junction temperature range
Small package: 4 mm x 4 mm 24-lead LFCSP (QFN) package
AEC-Q100 qualified for automotive applications

製品モデル: 4
1Ku当たりの価格: 価格は未定

ドキュメント

データシート 1

AD3300/1/4/5: Optimized all Hardware Edge Node, 10BASE-T1S Ethernet to the Edge Bus (E²B) Transceiver Data Sheet (Rev.SpB) 03/13/2025

秘密保持契約（NDA）をリクエスト

技術文書一式は、秘密保持契約（NDA）の締結後にご利用いただけます。

秘密保持契約（NDA）をリクエスト

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
AD3301WBCPZ	24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD3301WBCPZ-RL	24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD3301WBCSZ	24-lead LFCSP-CS (Side Solderable) (4 mm x 4 mm x 0,95 mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD3301WBCSZ-RL	24-lead LFCSP-CS (Side Solderable) (4 mm x 4 mm x 0,95 mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

製品モデル	製品ライフサイクル	PCN

6 30, 2025 - 25_0169 AD3300/AD3301/AD3304/AD3305 Data Sheet Change
		PCN25_0169_Form Material_Report Delta Qualification Matrix
AD3301WBCPZ
AD3301WBCPZ-RL
AD3301WBCSZ
AD3301WBCSZ-RL
2 10, 2025 - 25_0015 AD3300/AD3301/AD3304/AD3305 Data Sheet Change
		PCN25_0015_Form Material_Report Delta Qualification Matrix
AD3301WBCPZ
AD3301WBCPZ-RL

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

必要なソフトウェア／ドライバが見つかりませんか？

ドライバ／ソフトウェアをリクエスト

評価用キット

AD3301 E2B RCP Evaluation Kit

今すぐ購入詳細を表示

機能と利点

Full featured evaluation board for the 10BASE-T1S AD3301 E2B RCP remote node
10 Mbps short-reach single-pair Ethernet physical layer transceiver with Analog Devices E2B remote control protocol (RCP)
- Half-duplex point-to-point link segments
- Half-duplex multidrop mixing segments
- Configurable on-board 50 Ω 10BASE-T1S bus termination
- Physical Layer Collision Avoidance (PLCA)
Supply voltages: 12 V to 48 V, on-board voltage regulators
Breakout signal inputs and outputs through 2.54 mm connectors
GPIO LED and GPIO pushbutton

製品詳細

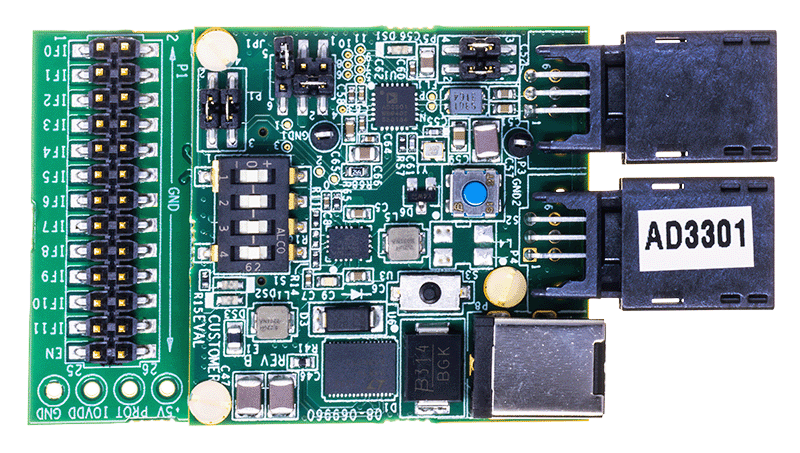

The AD3301 E²B RCP Evaluation Kit is provided by Analog Devices Inc., to facilitate demonstration and flexible evaluation of the Analog Devices E2B remote control protocol (RCP) technology. The AD3301 eval platform provides a system solution for 10 Mbps half-duplex automotive communications between a controller node and the AD3301 remote edge nodes. Flexible interfaces can be configured and implemented on each remote node. The remote nodes are controlled from a controller node where the E²B software application is executed on a microcontroller or the Host PC. Analog Device’s evaluation graphical user interface software EdgeStudio is used on the Host PC for creating an E²B network and piloting E²B applications. The EdgeStudio GUI enables you to build an E²B network graphically, configure various E²B nodes, evaluate the E2B network using the GUI as the controller, and export the network configurations to be used in a microcontroller application.
