LTM4624

RECOMMENDED FOR NEW DESIGNS

14VIN, 4A Step-Down DC/DC μModule (Power Module) Regulator

Data Sheet (Rev. E) Product Selection Table
Part Models
3
1ku List Price
Starting From $7.01
Viewing:

Part Details

  • Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
  • Wide Input Voltage Range: 4V to 14V
  • Input Voltage Down to 2.375V with External Bias
  • 0.6V to 5.5V Output Voltage
  • 4A DC, 5A Peak Output Current
  • ±2% Total DC Output Voltage Error
  • Current Mode Control, Fast Transient Response
  • Output Voltage Tracking
  • Selectable Discontinuous Mode
  • Power Good Indicator
  • Overvoltage, Overcurrent and Overtemperature Protection
  • 6.25mm × 6.25mm × 5.01mm BGA Package
LTM4624
14VIN, 4A Step-Down DC/DC μModule (Power Module) Regulator

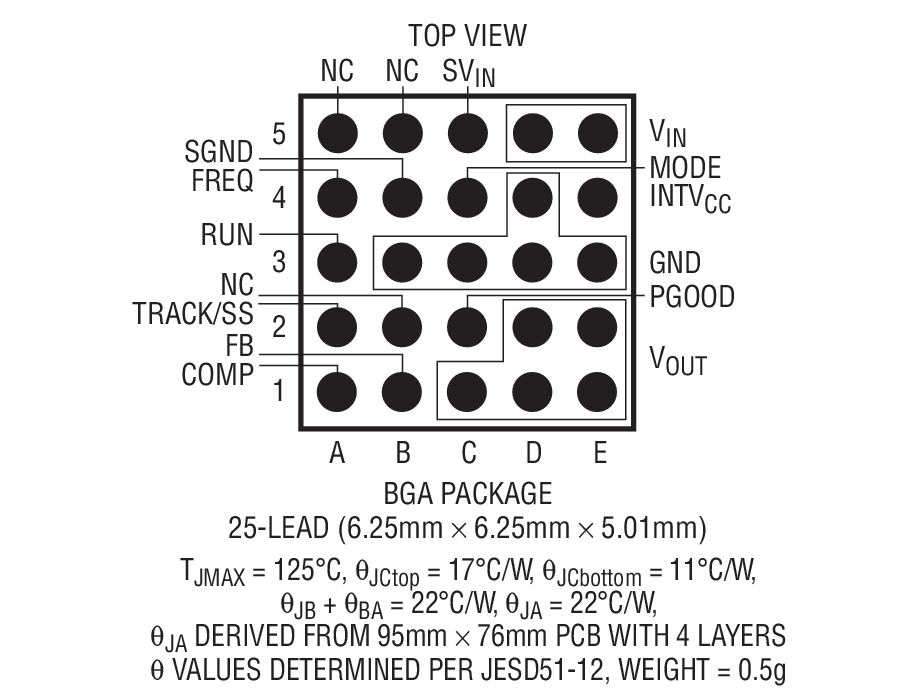

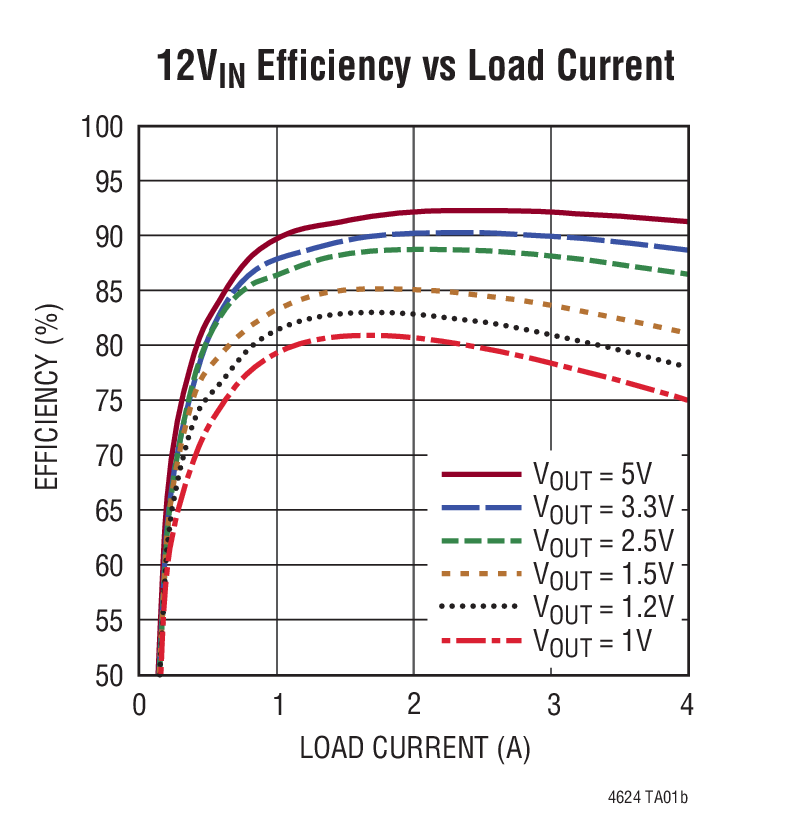

4A, 1.5V Output DC/DC μModule Step-Down Regulator 12VIN Efficiency vs Load Current Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 2

User Guide 1

Design Note 1

Technical Articles 1

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
µModule Buck Regulators 1
LTM4604A
PRODUCTION Low Voltage, 4A DC/DC μModule (Power Module) Regulator with Tracking
Multiple Output Buck Regulators 1
LTM4644
LTM4644-1
Quad DC/DC μModule (Power Module) Regulator with Configurable 4A Output Array
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

  • LTM4624

LTpowerCAD 1

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD

LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC1889A

LTM4624Y Demo Board | Buck μModule, 4V ≤ VIN ≤ 14V, VOUT = 0.6V to 5V @ 4A

Buy Now View Details

Product Details

Demonstration circuit 1889A features the LTM4624EY μModule regulator, a tiny high performance high efficiency step-down regulator. The LTM4624EY has an operating input voltage range of 4V to 14V and is able to provide an output current of up to 4A. The output voltage is programmable from 0.6V to 5V. The LTM4624EY is a complete DC-DC point of load regulator in a thermally enhanced 6.25mm × 6.25mm × 5.01mm BGA package requiring only a few input and output capacitors. Output voltage tracking is available through the TRACK/SS pin for supply rail sequencing. The LTM4624 datasheet must be read in conjunction with this demo manual for working on or modifying demo circuit 1889A.
