LTC4281

推荐新设计使用

具 I2C 兼容型监视功能的热插拔控制器

数据手册 (Rev. C) 产品选型表
产品模型
6
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 订购定制编程器件
  • 允许在带电背板上安全地进行电路板的插拔操作
  • 具 ±0.7% 总未调整误差的 12 / 16 位 ADC
  • 可监视电流、电压、功率和能量
  • 内部 EEPROM用于非易失性配置
  • 宽工作电压范围：2.9V 至 33V
  • I2C/SMBus 数字接口 (可与 PMBus 器件共存)
  • 12V 栅极驱动用于较低的 MOSFET RDS(ON)
  • 具 2% 准确度的可编程电流限值
  • 具电流折返功能的 MOSFET 功率限制
  • 可连续监察 MOSFET 的健康状况
  • 可存储最小和最大测量值
  • 当超过报警门限时发出警示信号
  • 按照 I2C 命令执行重启
  • 输入过压 / 欠压保护
  • 三个通用输入 / 输出
  • 内部 ±5% 时基或外部时基
  • 28 引脚 4mm x 5mm QFN 封装
LTC4281
具 I2C 兼容型监视功能的热插拔控制器
12V, 65A Plug-In Board Resident Application Start-Up Waveforms Product Package 1
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 2

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

硬件生态系统

部分模型 产品周期 描述
LTC4280
推荐新设计使用 具 I2C 兼容型监视功能的热插拔控制器
LTC4282
推荐新设计使用 具 I2C 兼容型监视功能的高电流热插拔控制器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 1

LTspice中提供以下器件型号：

  • LTC4281

LTpowerPlay®

LTpowerPlay®是一款功能强大且基于Windows的开发环境，支持凌力尔特的数字电源系统管理(PSM)产品。

打开工具
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1

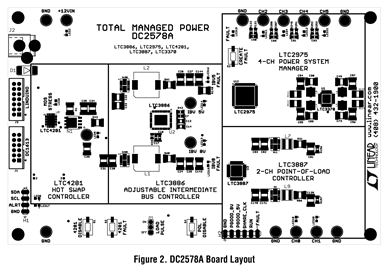

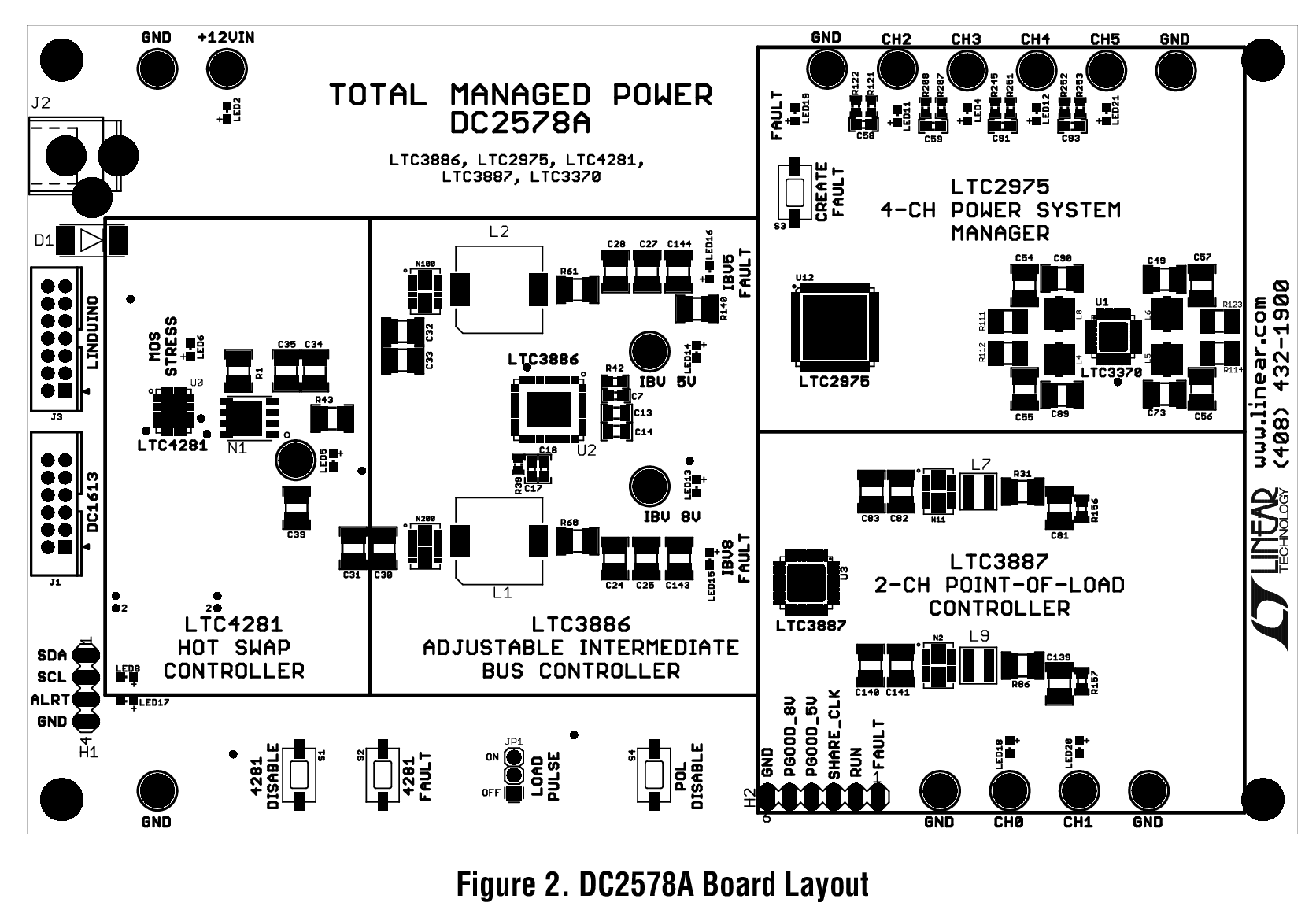

DC2578A

整体电源管理：热插拔、中间总线电压、负载点（集成LTC4281、LTC3886、LTC3887、LTC2975）[需要DC1613]

立即购买 更多内容

产品详情

DC2578A是一款完整的电源链，包括一个热插拔控制器、一个中间总线控制器和六个负载点通道，具有电源系统管理功能。该板演示如何通过LTC4281热插拔控制器和LTC3886降压中间总线控制器(IBC)安全从背板传输电源，并通过调节负载电压的负载点转换器(POL)输出。它全面展示了ADI解决方案的电源管理、协作和安全功能，并展示了如何轻松配置和管理整个电源层次结构。每个稳压电源能够进行时序控制、微调、裕量调节、监控、测量和协作响应故障，并将故障信息记录在非易失性存储器中。此外，板载负载脉冲发生器有助于优化可调LTC3886控制回路响应。整个系统提供的各种状态和遥测信息在一个GUI接口——LTpowerPlay下进行合并和呈现。

eval board
schematic 2
schematic 3
DC2278A-A

LTC4281 Demo Board | 12V, 50A Hot Swap Controller with Telemetry [Requires DC1613]

立即购买 更多内容

产品详情

Demonstration circuit 2278A features the LTC4281 hot swap controller. The LTC4281 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduces the extremes in which both loads and power supplies must safely operate. Non-volatile configuration allows for flexibility in the autonomous generation of alerts and response to faults.

eval board
schematic 4
schematic 5
DC2278A-B

LTC4281 Demo Board with Programming Socket | 12V, 50A Hot Swap Controller with Telemetry [Requires DC1613]

立即购买 更多内容

产品详情

Demonstration circuit 2278A features the LTC4281 hot swap controller. The LTC4281 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduces the extremes in which both loads and power supplies must safely operate. Non-volatile configuration allows for flexibility in the autonomous generation of alerts and response to faults.
DC2578A
整体电源管理：热插拔、中间总线电压、负载点（集成LTC4281、LTC3886、LTC3887、LTC2975）[需要DC1613]
DC2578A
DC2278A-A
LTC4281 Demo Board | 12V, 50A Hot Swap Controller with Telemetry [Requires DC1613]

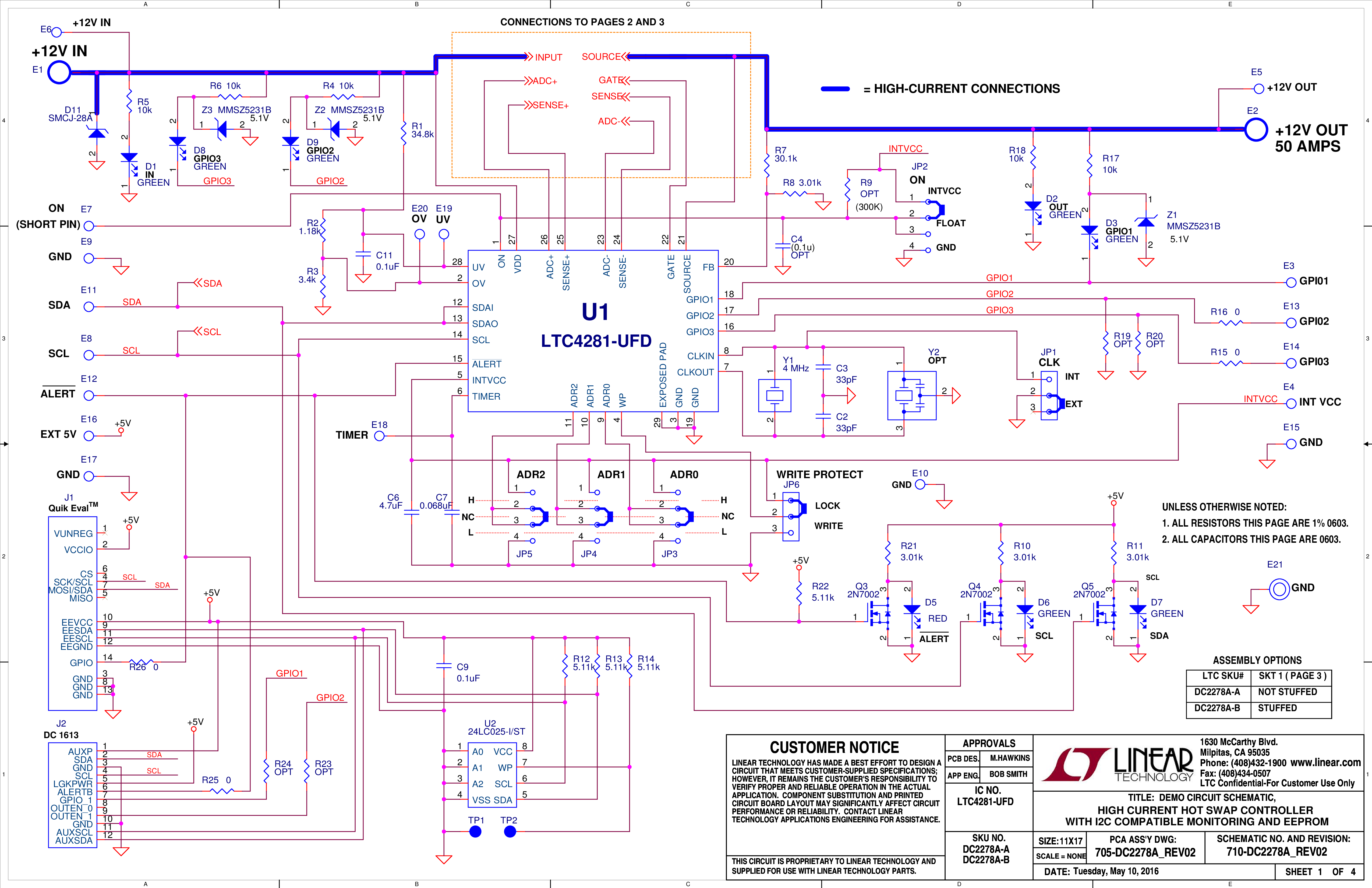

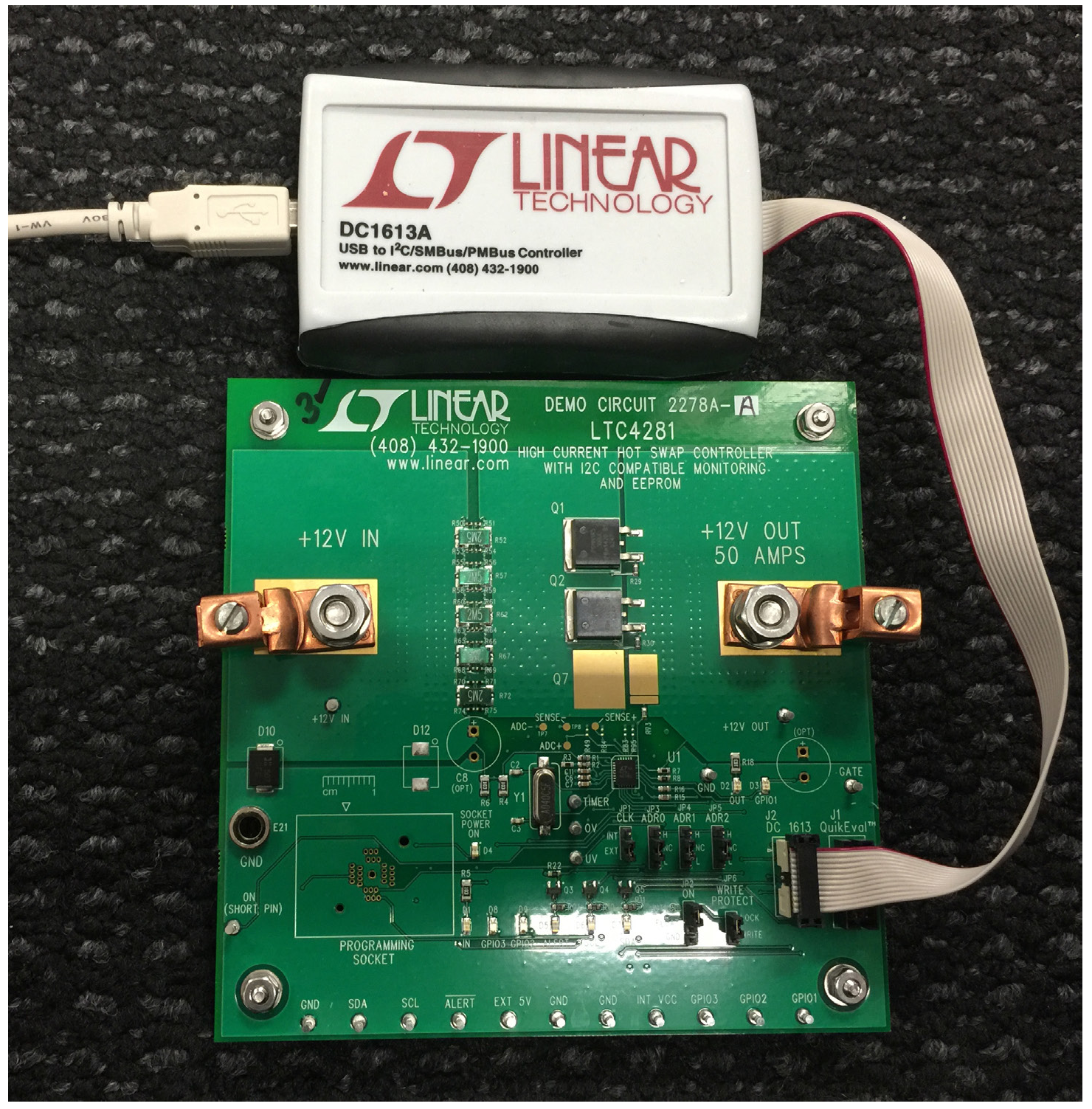

DC2278A - Schematic DC2278A-A - Demo Board Image
DC2278A-B
LTC4281 Demo Board with Programming Socket | 12V, 50A Hot Swap Controller with Telemetry [Requires DC1613]
DC2278A - Schematic DC2278A-A - Demo Board Image

参考电路

Stratix 10 GX Signal Integrity Development Kit
Stratix 10 GX Signal Integrity Development Kit
Stratix 10 GX Signal Integrity Development Kit Block Diagram
Stratix 10 GX Signal Integrity Development Kit (Actual Power Tree representative of components used on board)
Stratix 10 GX Signal Integrity Development Kit (updated alternate Simplified Power Tree: 12Vin to required I/O voltages)
Stratix 10 GX Signal Integrity Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
  • The actual power tree represents the best solution at time of design.
  • A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX SI development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations for an alternate power tree that allows for direct power conversion from 12V input is provided below.
Stratix 10 GX Signal Integrity Development Kit
Stratix 10 GX Signal Integrity Development Kit
Stratix 10 GX Signal Integrity Development Kit Block Diagram
Stratix 10 GX Signal Integrity Development Kit (Actual Power Tree representative of components used on board)
Stratix 10 GX Signal Integrity Development Kit (updated alternate Simplified Power Tree: 12Vin to required I/O voltages)
