ADF4212

PRODUCTION

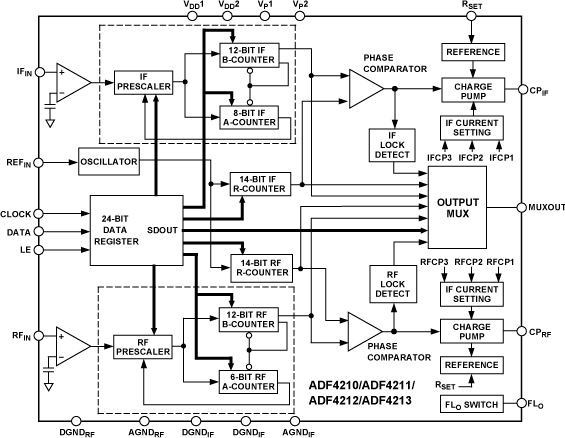

Dual, Integer-N 0.5 GHz / 3.0 GHz PLL

Data Sheet (Rev. A) Product Selection Table

Part Models: 3
1ku List Price: Starting From $3.02

Viewing:

Part Details

ADF4210: 550 MHz/1.2 GHz
ADF4211: 550 MHz/2.0 GHz
ADF4212: 1.0 GHz/2.7 GHz
ADF4213: 1.0 GHz/3 GHz
2.7 V to 5.5 V Power Supply
Separate Charge Pump Supply (VP) Allows Extended Tuning Voltage in 3 V Systems
Programmable Dual Modulus Prescaler RF and IF: 8/9, 16/17, 32/33, 64/65
Programmable Charge Pump Currents
3-Wire Serial Interface
Analog and Digital Lock Detect
Fastlock Mode
Power-Down Mode

Part Models: 3
1ku List Price: Starting From $3.02

Documentation

Data Sheet 1

ADF4210/ADF4211/ADF4212/ADF4213: Dual RF/IF PLL Frequency Synthesizer 1.0 GHz/3 GHz Data Sheet (Rev.A) 11/15/2000

Application Note 2

AN-873: Lock Detect on the ADF4xxx Family of PLL Synthesizers (Rev.0) 12/06/2006

AN-30: Ask the Applications Engineer - PLL Synthesizers 12/06/2004

Frequently Asked Question 1

FAQ 03/03/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4212BRUZ	20-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4212BRUZ-RL	20-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4212BRUZ-RL7	20-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
ADF4212BRUZ	PRODUCTION
ADF4212BRUZ-RL	PRODUCTION
ADF4212BRUZ-RL7	PRODUCTION
Oct 28, 2009 - 08_0008 Qualification of 8" 0.6um BiCMOS wafer fab process at Analog Devices, Limerick, Ireland.
		Material_Report PCN08_0008_Form
ADF4212BRUZ	PRODUCTION
ADF4212BRUZ-RL	PRODUCTION
ADF4212BRUZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
I/Q Demodulators 1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators 1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Internal Power Switch Boost Regulators 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit

Positive Linear Regulators (LDO) 3
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers 2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool
