ADF4193

PRODUCTION

Low Phase Noise, Fast Settling PLL Frequency Synthesizer

Data Sheet (Rev. G) Product Selection Table

Part Models: 4
1ku List Price: Starting From $6.00

Viewing:

Part Details

New, fast settling, fractional-N PLL architecture
Single PLL replaces ping-pong synthesizers
Frequency hop across GSM band in 5 µs with phase settled by 20 µs
0.5° rms phase error at 2 GHz RF output
Digitally programmable output phase
RF input range up to 3.5 GHz
3-wire serial interface
On-chip, low noise differential amplifier
Phase noise figure of merit: –216 dBc/Hz
Loop filter design possible using ADIsimPLL™
Qualified for automotive applications

Part Models: 4
1ku List Price: Starting From $6.00

Documentation

Frequently Asked Question 1

FAQ 03/03/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

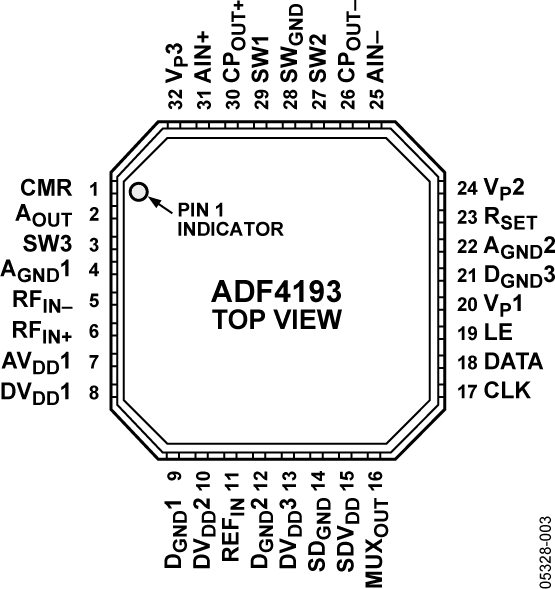

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4193BCPZ	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4193BCPZ-RL	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4193BCPZ-RL7	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4193WCCPZ-RL7	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 5, 2022 - 21_0271 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN21_0271_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4193BCPZ	PRODUCTION
ADF4193BCPZ-RL	PRODUCTION
ADF4193BCPZ-RL7	PRODUCTION
Oct 18, 2016 - 16_0036 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products
		PCN16_0036_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADF4193BCPZ	PRODUCTION
ADF4193BCPZ-RL	PRODUCTION
ADF4193BCPZ-RL7	PRODUCTION
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADF4193BCPZ	PRODUCTION
ADF4193BCPZ-RL	PRODUCTION
ADF4193BCPZ-RL7	PRODUCTION
Mar 7, 2012 - 10_0241 Conversion of LFCSP package outline from Punch to Sawn of package sizes 4x4, 5x5, 6x6 and 7x7mm and a transfer of assembly site.
		PCN10_0241_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADF4193BCPZ	PRODUCTION
ADF4193BCPZ-RL	PRODUCTION
ADF4193BCPZ-RL7	PRODUCTION
May 4, 2016 - 14_0178 Conversion of 3x3mm, 4x4mm and 5x5mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
		PCN14_0178_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADF4193WCCPZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
I/Q Demodulators 1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators 1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Internal Power Switch Boost Regulators 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit

Positive Linear Regulators (LDO) 3
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers 2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

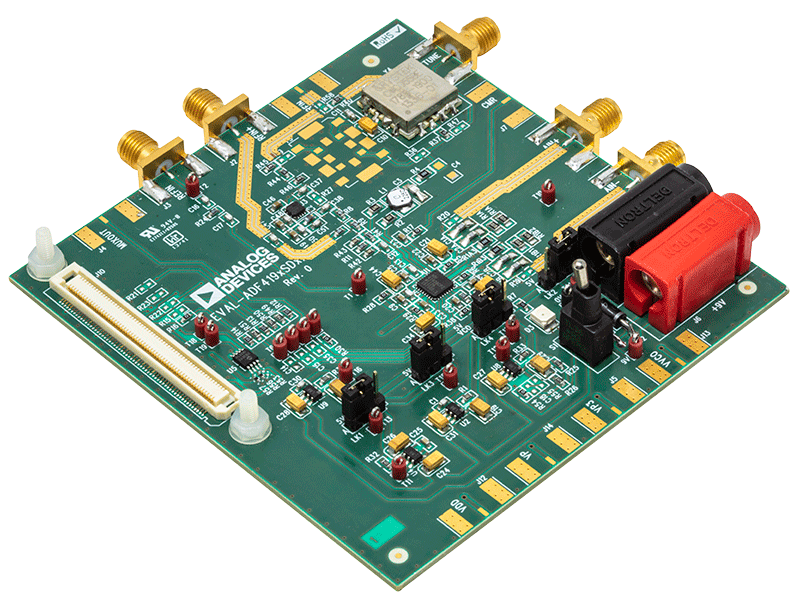

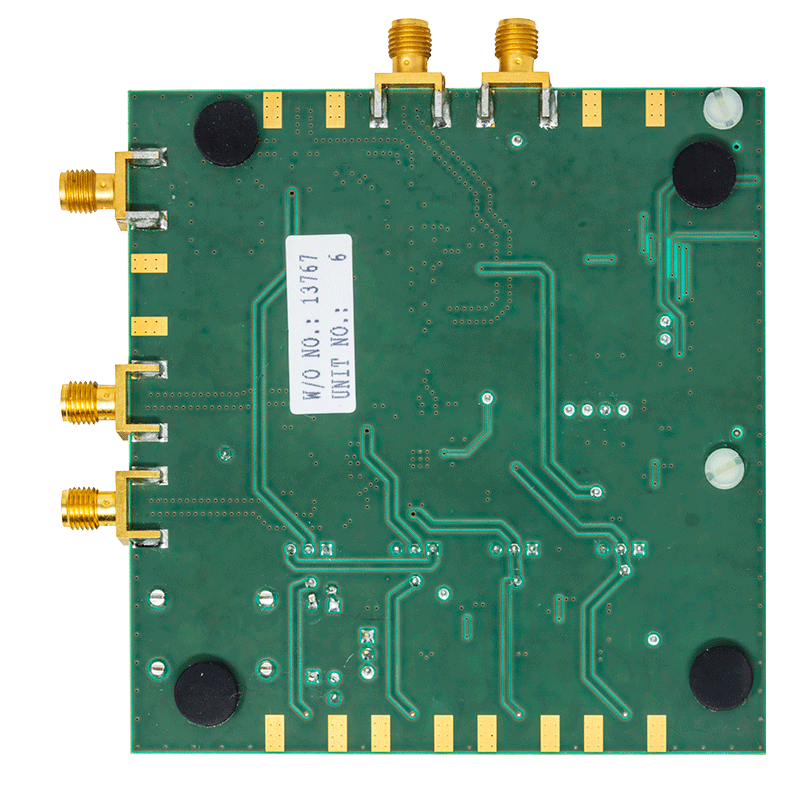

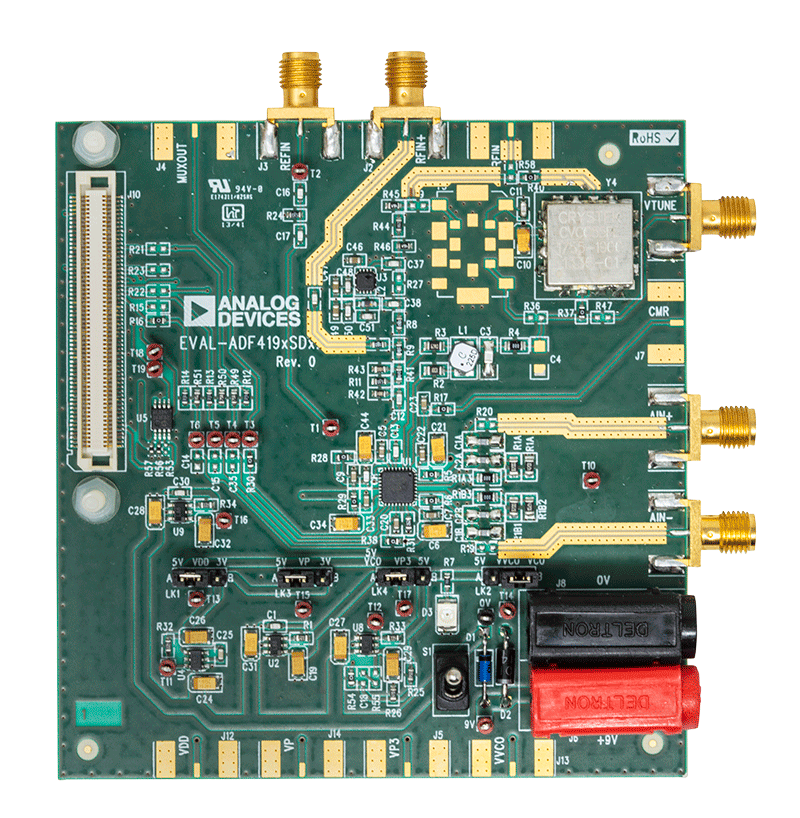

ADF4193 Evaluation Boards

Buy Now View Details

Product Details

This page contains ordering information for the evaluation board used to evaluate the ADF4193 Low Phase Noise, Fast Settling PLL Frequency Synthesizer.

This evaluation board requires an SDP Controller board for connection to the PC. The SDP controller board connects to the PC via USB 2.0. The evaluation board will connect to the SDP controller board. The evaluation board cannot be connected directly to the PC. The evaluation software running on the PC will communicate through the SDP Controller board, to the evaluation board. The SDP Controller board is a separate list item in the ordering guide below (EVAL-SDP-CS1Z). If you have not previously purchased an SDP Controller board, please do so to ensure a full evaluation setup.
