ADF4153A

RECOMMENDED FOR NEW DESIGNS

Fractional-N Frequency Synthesizer

Data Sheet (Rev. A) Product Selection Table

Part Models: 4
1ku List Price: Starting From $2.63

Viewing:

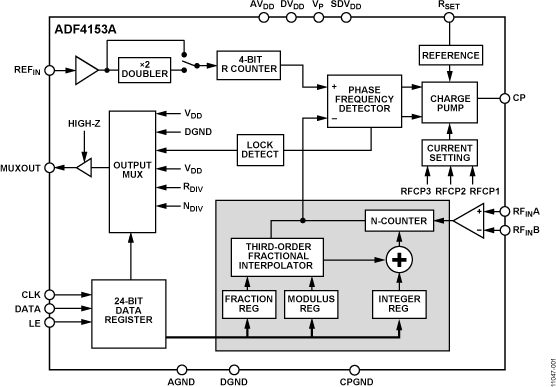

Part Details

RF bandwidth to 4 GHz
2.7 V to 3.3 V power supply
Separate V_P allows extended tuning voltage
Programmable fractional modulus
Programmable charge pump current
3-wire serial interface
Analog and digital lock detect
Power-down mode
Pin-compatible with ADF4106/ADF4110/ADF4111/ADF4112/ ADF4113 and ADF4153
Consistent RF output phase
Loop filter design possible with ADIsimPLL

Part Models: 4
1ku List Price: Starting From $2.63

Documentation

Data Sheet 1

ADF4153A: Fractional-N Frequency Synthesizer Data Sheet (Rev.A) 10/23/2012

User Guide 1

UG-485: Evaluation Board for the ADF4153A Fractional-N PLL Frequency Synthesizer 12/14/2012

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

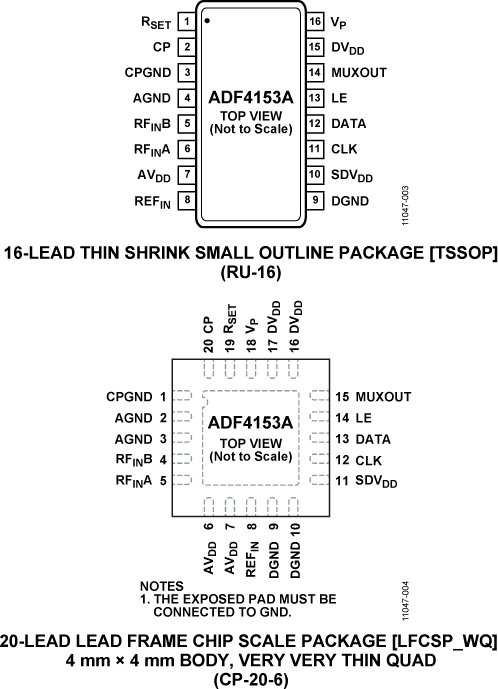

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4153ABCPZ	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153ABCPZ-RL7	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153ABRUZ	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153ABRUZ-RL7	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 5, 2022 - 21_0271 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN21_0271_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4153ABCPZ	PRODUCTION
ADF4153ABCPZ-RL7	PRODUCTION
Oct 18, 2016 - 16_0036 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products
		PCN16_0036_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADF4153ABCPZ	PRODUCTION
ADF4153ABCPZ-RL7	PRODUCTION
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADF4153ABCPZ	PRODUCTION
ADF4153ABCPZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
I/Q Demodulators 1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators 1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Internal Power Switch Boost Regulators 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit

Positive Linear Regulators (LDO) 3
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers 2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Tools & Simulations

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

ADF4153A Evaluation Board

Buy Now View Details

Product Details

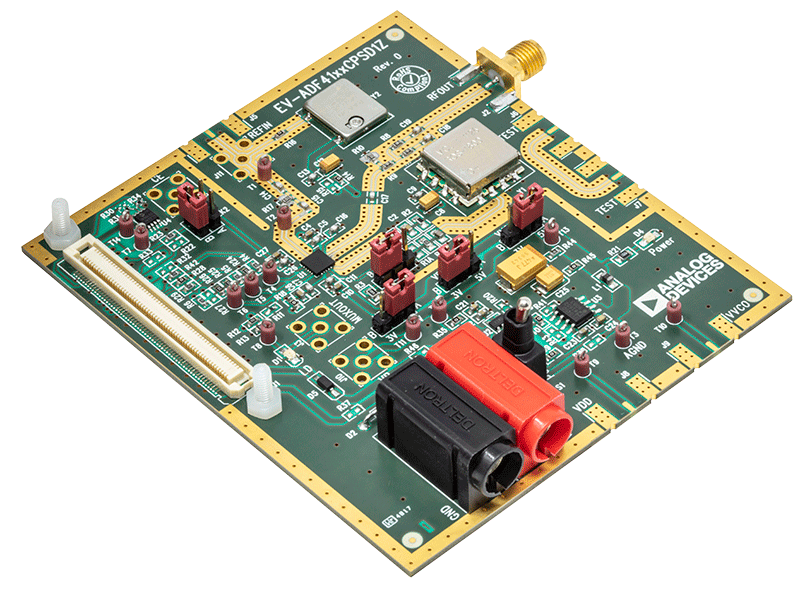

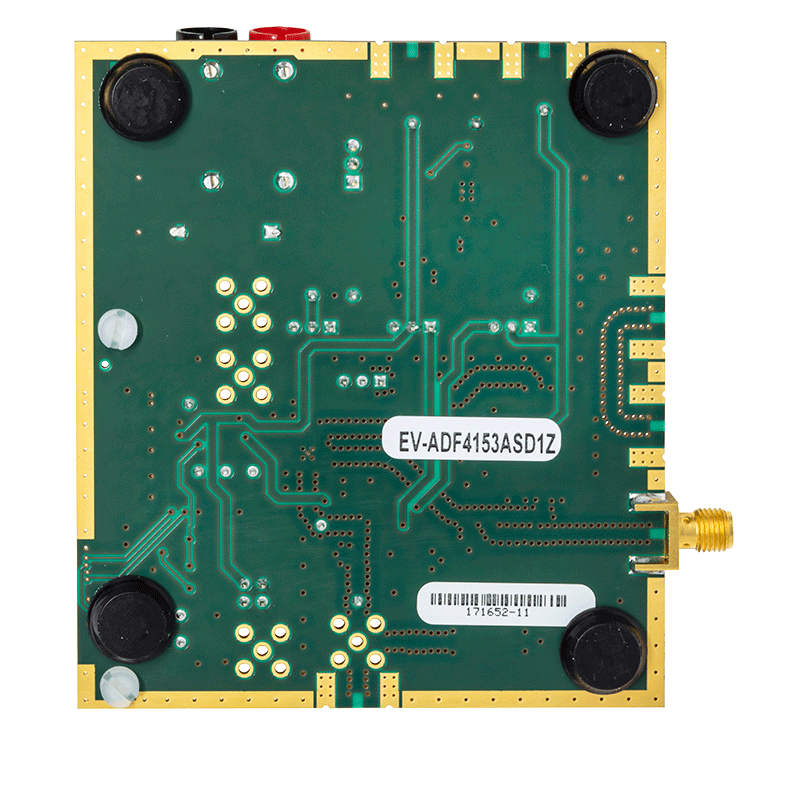

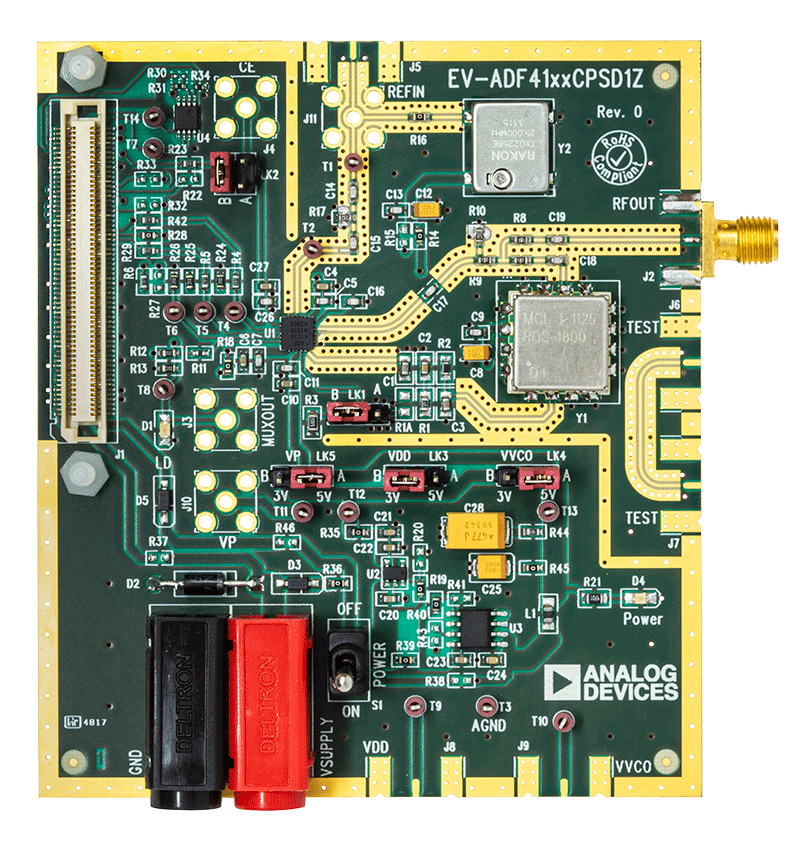

The ADF4153A evaluation board is designed to allow the user to evaluate the performance of the ADF4153A frequency synthesizer for phase-locked loops (PLLs). The board contains the ADF4153A synthesizer, an edge mounted SMA connector for the RF output signal, power supply connectors, a temperature compensated reference oscillator (TCXO) of 25 MHz frequency, and an SDP connector. There is also a loop filter (50 kHz) and a VCO (Mini-Circuits ROS-1800+) on board.

This evaluation board requires an SDP Controller Board for connection to the PC. The SDP Controller Board connects to the PC via USB 2.0. The evaluation board will connect to the SDP controller board. The evaluation board cannot be connected directly to the PC. The evaluation software running on the PC will communicate through the SDP Controller Board to the evaluation board. The SDP Controller Board is a separate list item in the ordering guide below (EVAL-SDP-CS1Z). If you have not previously purchased an SDP Controller Board, please do so to ensure a full evaluation setup.
