ADF4153

PRODUCTION

Fractional-N Frequency Synthesizer

Data Sheet (Rev. G) Product Selection Table

Part Models: 13
1ku List Price: Starting From $3.08

Viewing:

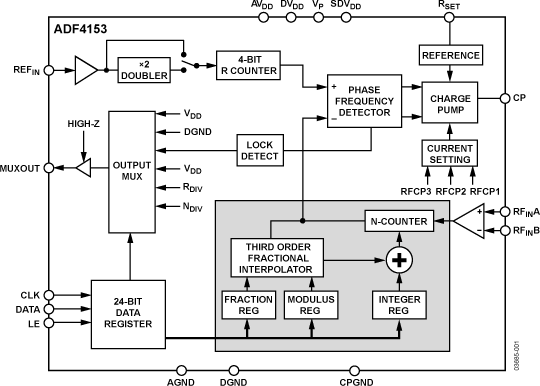

Part Details

RF bandwidth to 4 GHz
2.7 V to 3.3 V power supply
Separate V_P allows extended tuning voltage
Y version available: -40°C to +125°C
Programmable fractional modulus
Programmable charge pump currents
3-wire serial interface
Analog and digital lock detect
Power-down mode
Pin compatible with the ADF4110/ADF4111/ADF4112/ADF4113 and ADF4106
Consistent RF output phase
Loop filter design possible with ADIsimPLL
Qualified for automotive applications

Part Models: 13
1ku List Price: Starting From $3.08

Documentation

Frequently Asked Question 1

FAQ 03/03/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

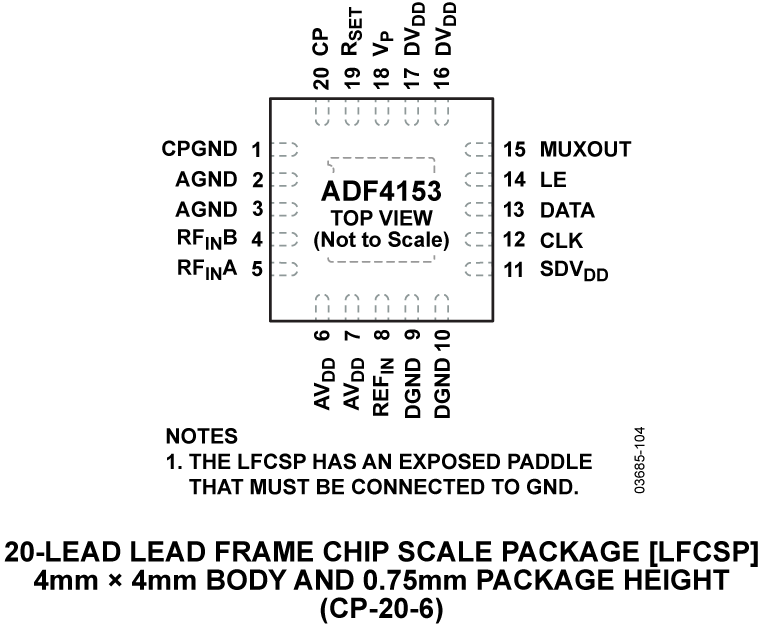

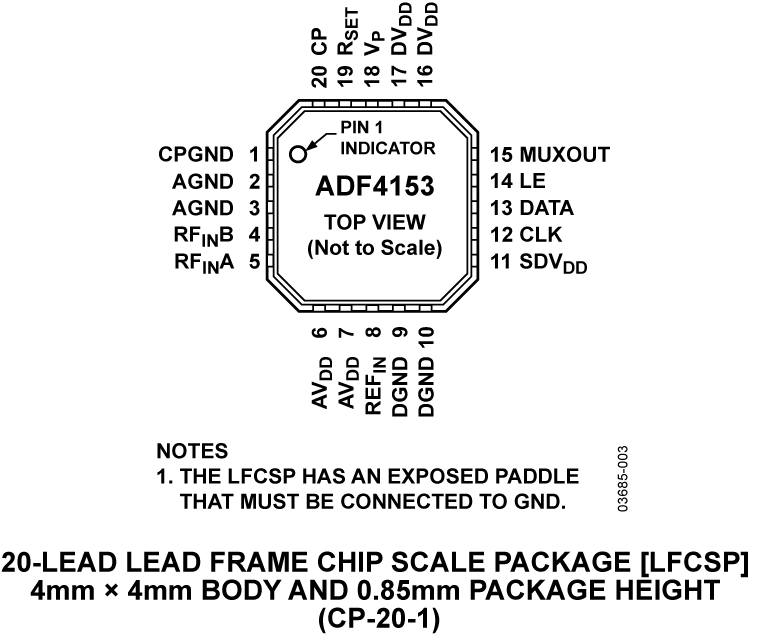

ADF4153BCPZ	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153BCPZ-RL	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153BCPZ-RL7	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

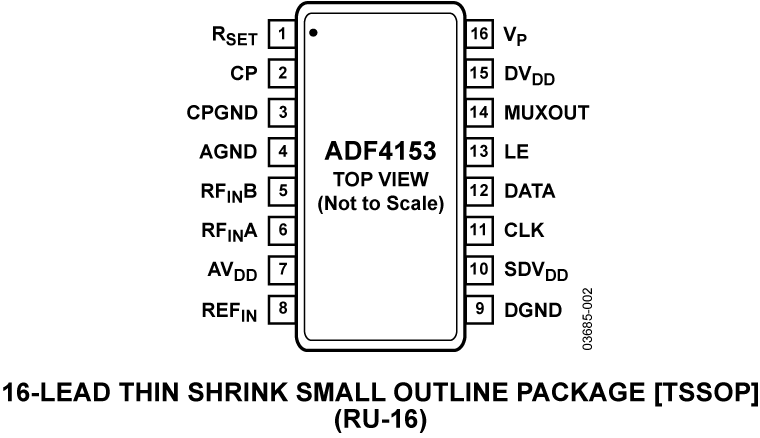

ADF4153BRUZ	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153BRUZ-RL	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153BRUZ-RL7	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153WYRUZ-RL7	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YCPZ	20-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YCPZ-RL	20-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YCPZ-RL7	20-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YRUZ	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YRUZ-RL	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4153YRUZ-RL7	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 5, 2022 - 21_0271 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN21_0271_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
Oct 18, 2016 - 16_0036 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products
		PCN16_0036_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
Jun 25, 2014 - 13_0266 Test Transfer of Select LFCSP Products to STATS ChipPAC China
		PCN13_0266_Form Material_Report Test Correlation Report
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
Jun 12, 2014 - 13_0231 Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.
		PCN13_0231_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
May 5, 2014 - 14_0020 Conversion of 4x4mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0020_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
Oct 26, 2011 - 11_0020 Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to StatsChippac Malaysia.
		PCN11_0020_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
ADF4153YCPZ	PRODUCTION
ADF4153YCPZ-RL	Obsolete
ADF4153YCPZ-RL7	PRODUCTION
Mar 14, 2011 - 11_0045 Addition of STATSChipPAC Malaysia as an Alternate Test Site for LFCSP packages.
		PCN11_0045_Form Material_Report
ADF4153BCPZ	PRODUCTION
ADF4153BCPZ-RL	PRODUCTION
ADF4153BCPZ-RL7	PRODUCTION
ADF4153YCPZ	PRODUCTION
ADF4153YCPZ-RL	Obsolete
ADF4153YCPZ-RL7	PRODUCTION
Jan 16, 2012 - 11_0244 Halogen Free Material Change for Select TSSOP Products Assembled at Amkor
		PCN11_0244_Form Material_Report Qualification Report Summary
ADF4153BRUZ	PRODUCTION
ADF4153BRUZ-RL	PRODUCTION
ADF4153BRUZ-RL7	PRODUCTION
ADF4153WYRUZ-RL7	PRODUCTION
Jul 18, 2022 - 21_0271 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN21_0271_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4153YCPZ	PRODUCTION
ADF4153YCPZ-RL7	PRODUCTION
Dec 4, 2016 - 15_0094 Assembly Transfer of Small Body Punched LFCSP Products to Amkor Philippines
		PCN15_0094_Form Material_Report Qualification Results Summary Qualification Results Summary
ADF4153YCPZ	PRODUCTION
ADF4153YCPZ-RL7	PRODUCTION
Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
ADF4153YRUZ	PRODUCTION
ADF4153YRUZ-RL	Obsolete
ADF4153YRUZ-RL7	PRODUCTION
Jan 29, 2014 - 14_0014 ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
		PDN14_0014_Form Material_Report
ADF4153YCPZ-RL	Obsolete
ADF4153YRUZ-RL	Obsolete

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Hardware Ecosystem

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
I/Q Demodulators 1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators 1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Internal Power Switch Boost Regulators 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit

Positive Linear Regulators (LDO) 3
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers 2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

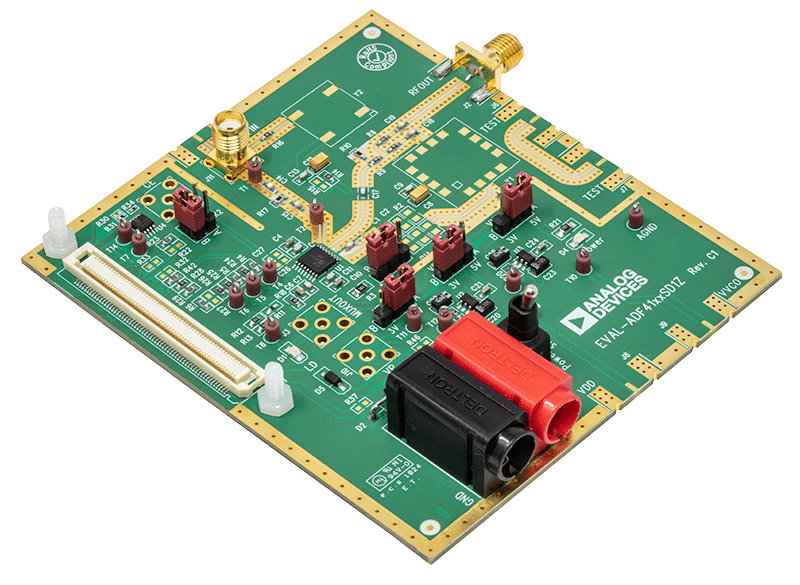

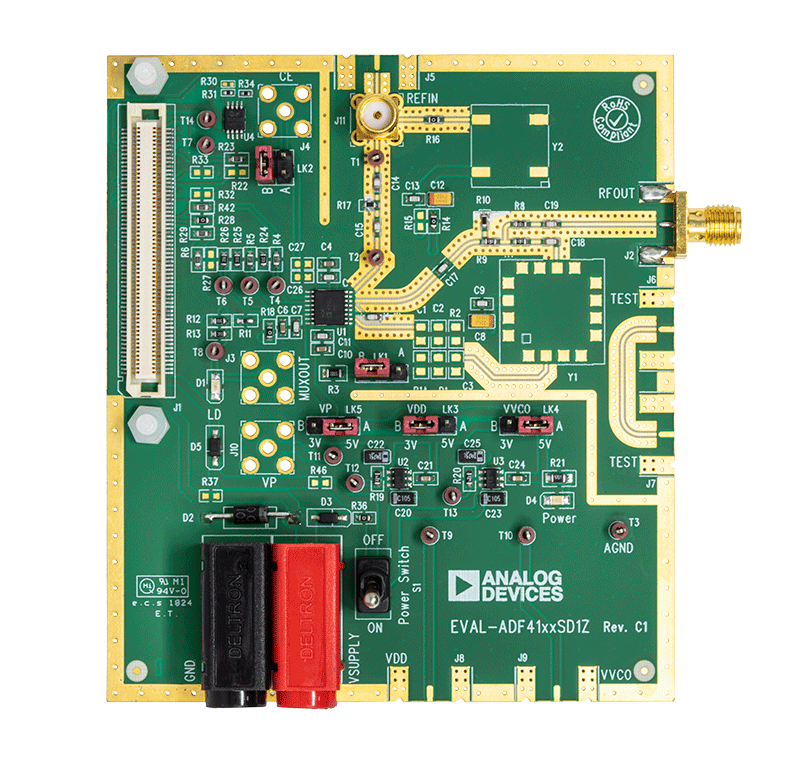

ADF4153 Evaluation Board

Buy Now View Details

Product Details

This page contains ordering information for the evaluation board used to evaluate the ADF4153 Fractional-N Frequency Synthesizer.

This evaluation board requires an SDP Controller board for connection to the PC. The SDP controller board connects to the PC via USB 2.0. The evaluation board will connect to the SDP controller board. The evaluation board cannot be connected directly to the PC. The evaluation software running on the PC will communicate through the SDP Controller board, to the evaluation board. The SDP Controller board is a separate list item in the ordering guide below (EVAL-SDP-CS1Z). If you have not previously purchased an SDP Controller board, please do so to ensure a full evaluation setup.
