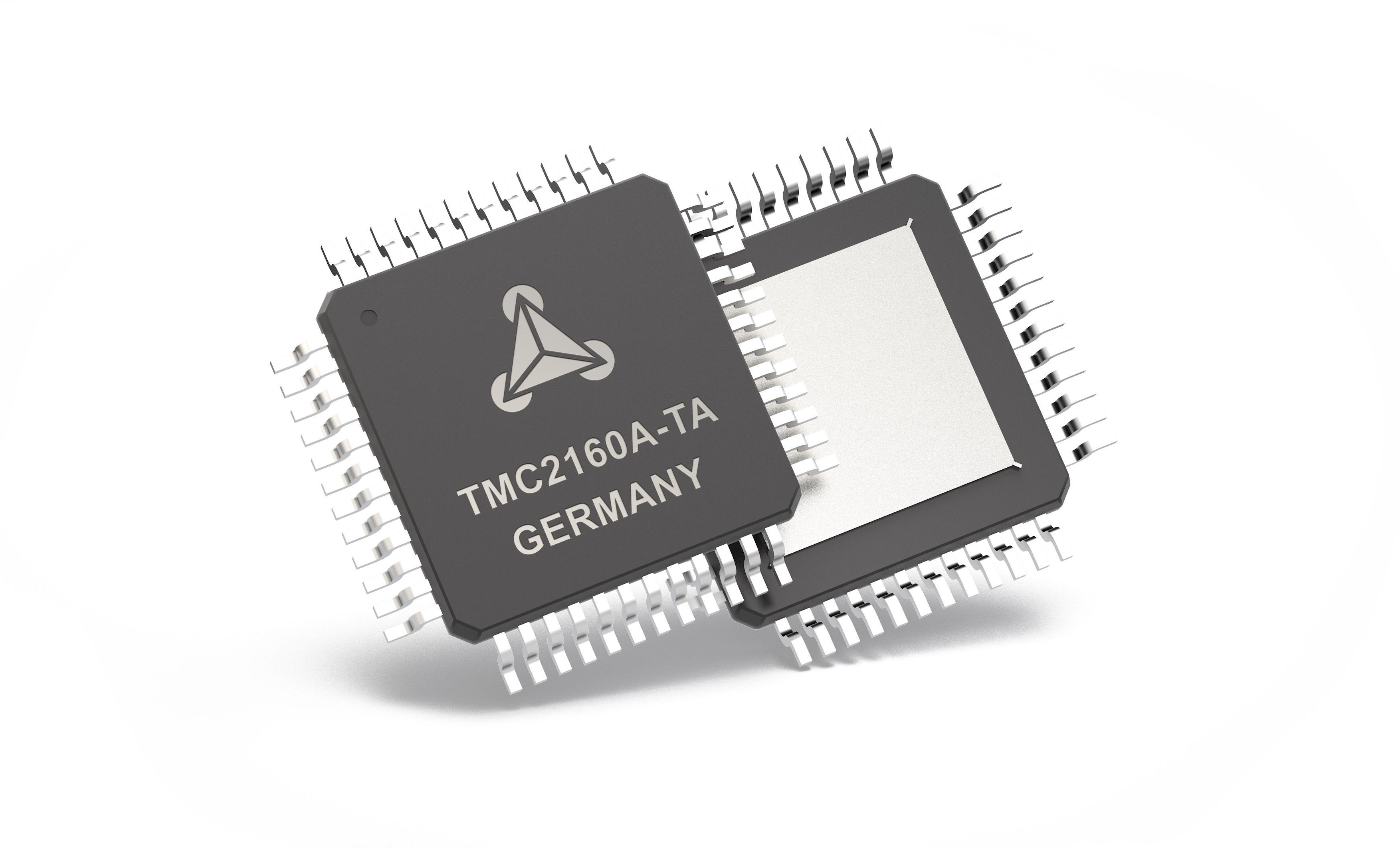

TMC2160

推荐新设计使用

Stepper motor driver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2, SpreadCycle and StealthChop2

数据手册 (Rev. 1.10) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 2-phase stepper motors from 1A to several 10A coil current
  • Step/Dir Interface with microstep interpolation MicroPlyer™
  • Voltage Range 8 to 60V DC
  • SPI Interface
  • Highest Resolution 256 microsteps per full step
  • StealthChop2™ for quiet operation and smooth motion
  • Resonance Dampening for mid-range resonances
  • SpreadCycle™ highly dynamic motor control chopper
  • DcStep™ load dependent speed control
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ current control for energy savings up to 75%
  • Passive Braking and freewheeling mode
  • Full Protection & Diagnostics
  • Compact Size 7x7mm2 (body) TQFP48 package
TMC2160
Stepper motor driver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2, SpreadCycle and StealthChop2
tmc2160 tmc2160-v2 tmc2160a-ta
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

应用笔记 3

轮廓图 2

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1

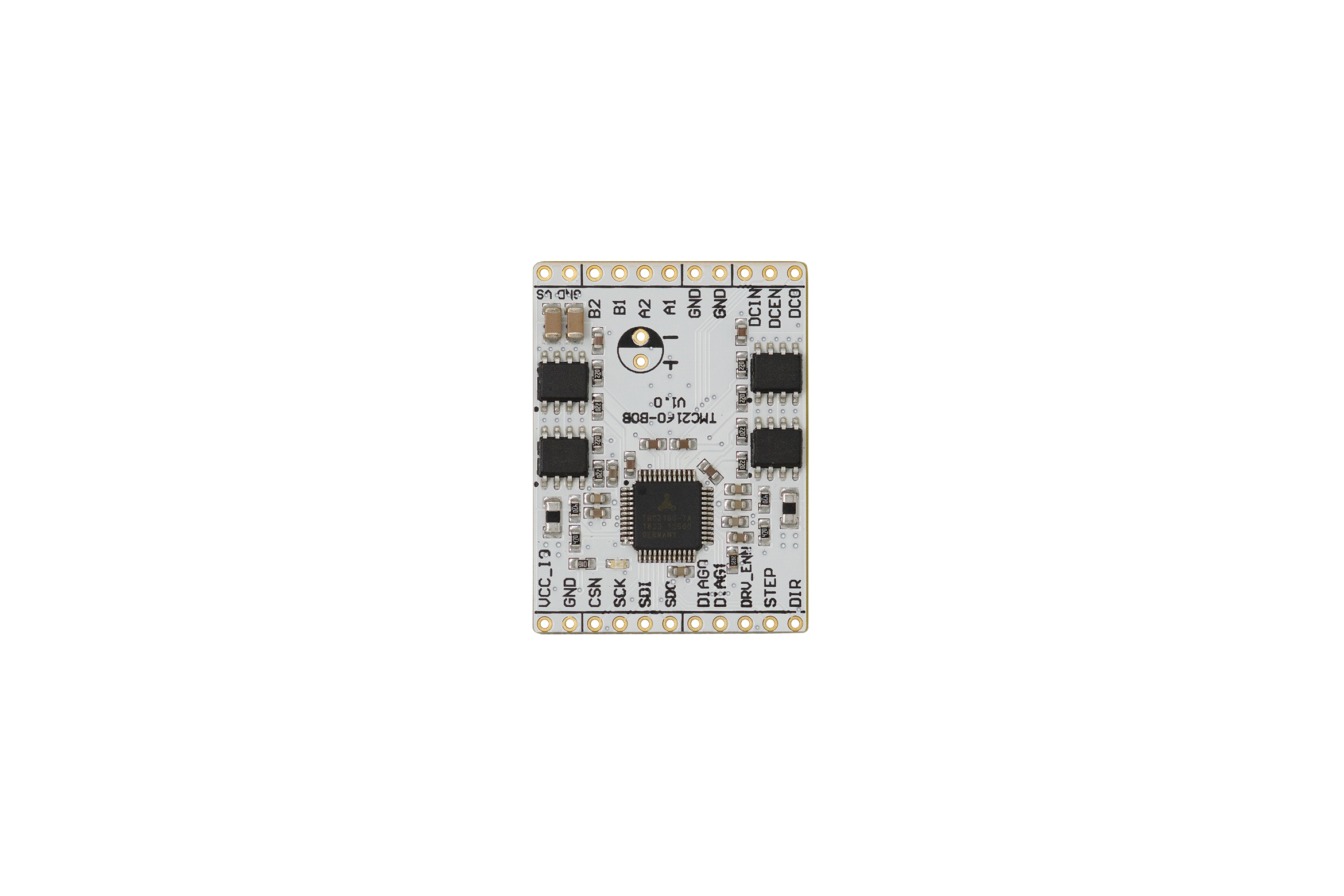

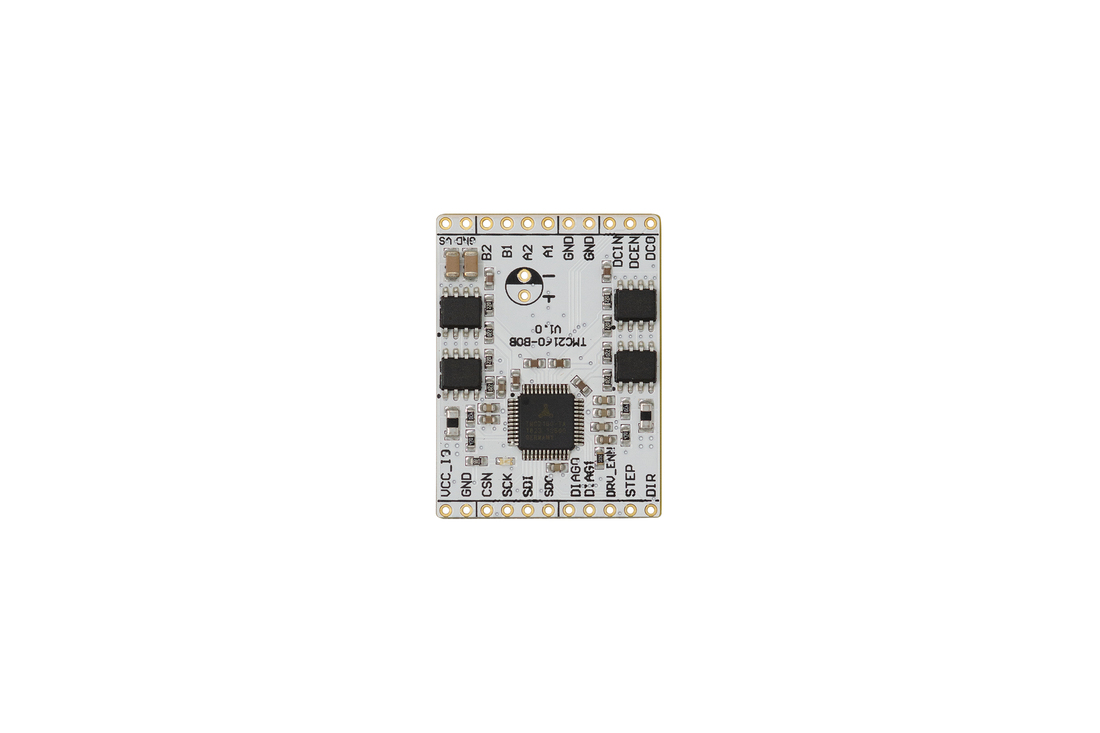

TMC2160-BOB

Evaluation Board for TMC2160

立即购买 更多内容

特性和优点

  • CoolStep™
  • Passive Braking
  • Short Detection
  • SpreadCycle™
  • Stall Detection
  • StallGuard2™
  • StealthChop2™
  • Microstep Table
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 3ARMS, 36V

产品详情

The TMC2160 breakout board is a development board with the dedicated TMC2160-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

eval board
schematic 2
schematic 3

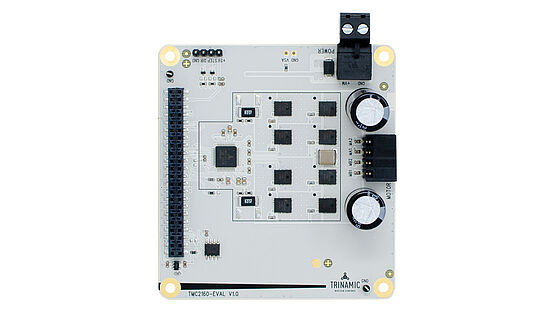

TMC2160-EVAL

Evaluation Board for TMC2160

立即购买 更多内容

特性和优点

  • 2-phase stepper motor up to 4.6A coil current (6.5A peak)
  • Supply Voltage 8 to 55V DC
  • SPI interface
  • Step/Direction interface with microstep interpolation MicroPlyer™
  • StealthChop™ silent PWM mode
  • SpreadCycle™ smart mixed decay
  • StallGuard2™ load detection
  • CoolStep™ automatic current scaling
  • 1 to 256 Microsteps
  • 4.6A RMS, 55V

产品详情

The TMC2160-EVAL allows you to explore all functions of the TMC2160-TA.

The TMC2160-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC2160-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2160 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
TMC2160-BOB
Evaluation Board for TMC2160
tmc2160-bob
TMC2160-EVAL
Evaluation Board for TMC2160
TMC2160-EVAL tmc2160-eval-v2
SILENTSTEPSTICK
Evaluation Board for SILENTSTEPSTICK
