LTC3026

PRODUCTION

1.5A Low Input Voltage VLDO Linear Regulator

5V, 1.5A, Low Noise, High PSRR, 100mV Dropout Linear Regulator with Boost Converter

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $2.66

Viewing:

Part Details

Input Voltage Range:

1.14V to 3.5V (with Boost Enabled)
1.14V to 5.5V (with External 5V Boost)

Low Dropout Voltage: 100mV at I_OUT = 1.5A
Adjustable Output Range: 0.4V to 2.6V
Output Current: Up to 1.5A
Excellent Supply Rejection Even Near Dropout
Shutdown Disconnects Load from V_IN and V_BST
Low Operating Current: I_IN = 950µA at V_IN = 1.5V
Low Shutdown Current:

I_IN < 1µA (Typ)
I_BST = 0.1µA (Typ)

Stable with 10µF or Greater Ceramic Capacitors
Short-Circuit, Reverse Current Protected
Overtemperature Protected
Available in 10-Lead MSOP and 10-Lead (3mm × 3mm) DFN Packages

The LTC3026 is a very low dropout (VLDO^™) linear regulator that can operate at input voltages down to 1.14V. The device is capable of supplying 1.5A of output current with a typical dropout voltage of only 100mV. To allow operation at low input voltages the LTC3026 includes a boost converter that provides the necessary headroom for the internal LDO circuitry.

Output current comes directly from the input supply to maximize efficiency. The boost converter requires only a small chip inductor and ceramic capacitor for operation. Additionally, the boosted output voltage of one LTC3026 can supply the boost voltage for other LTC3026s, thus requiring a single inductor for multiple LDOs. A user supplied boost voltage can be used eliminating the need for an inductor altogether.

The LTC3026 regulator is stable with 10μF or greater ceramic output capacitors. The device has a low 0.4V reference voltage which is used to program the output voltage via two external resistors. The device also has internal current limit, overtemperature shutdown, and reverse output current protection. The LTC3026 is available in a small 10-lead MSOP or low profile (0.75mm) 10-lead 3mm × 3mm DFN package.


	Features
LTC3026	Integrated boost converter
LTC3026-1	Boost converter internally disabled and required an external 5V supply to operate

Applications

High Efficiency Linear Regulator
Post Regulator for Switching Supplies
Microprocessor Supply

Part Models: 8
1ku List Price: Starting From $2.66

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3026EDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026EDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026EMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026EMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026IDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026IMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3026IMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 5, 2024 - 24_0004 Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
		PCN24_0004_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC3026EMSE#PBF	PRODUCTION
LTC3026EMSE#TRPBF	PRODUCTION
LTC3026IMSE#PBF	PRODUCTION
LTC3026IMSE#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC3026EMSE#PBF	PRODUCTION
LTC3026EMSE#TRPBF	PRODUCTION
LTC3026IMSE#PBF	PRODUCTION
LTC3026IMSE#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Digital Power System Managers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Tools & Simulations

LTspice 3

Models for the following parts are available in LTspice:

LTC3026
LTC3026-1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC3026EDD | Low VIN, VLDO Linear Regulator, 1.14V ≤ VIN ≤ 5.5V (3.5V Using Internal Boost), VOUT = 0.8V/1.2V/1.5V/1.8V/Adjustable @ 1.5A

Buy Now View Details

Product Details

Demonstration circuit 833 is an ultralow dropout voltage supply using the 1.5A output current LTC3026 linear regulator in a small 3mm × 3mm 10-Pin DFN package. The DC833 has an input voltage range from 1.14V to 3.5V when the internal boost converter is enabled, and a maximum input voltage of 5.5V when an external source is supplied. The output voltage jumper-selectable and can be set to 0.8V, 1.2V, 1.5V, 1.5V, 1.8V or a user-defined value between 0.4V and 2.6V. The 0.4V reference of the LTC3026 allows the DC833 to supply power to very low voltage applications. The DC833 is also an excellent choice for post regulation of step-down switching regulators, creating a high efficiency low-noise supply. The DC833 comes assembled with small ceramic capacitors, showing the LTC3026's ability to maintain stability with ceramic output capacitors.

Resources

DC833A - Schematic
9/24/2009

DC833A - Design File
9/24/2009

DC833A - Demo Manual
9/24/2009

Reference Designs

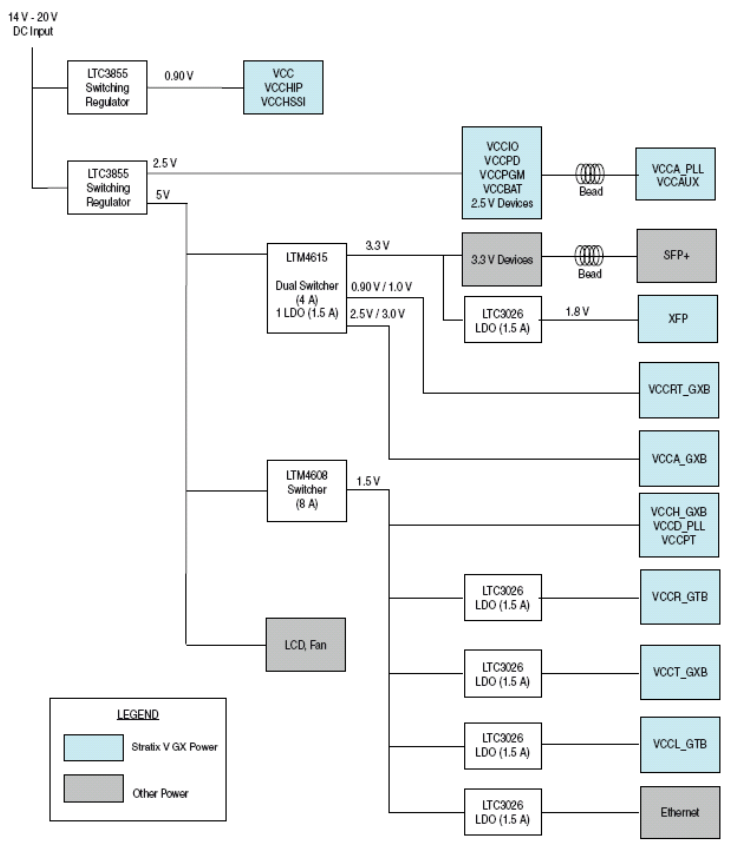

View Detailed Reference Design
