LTC9101-2B

推荐新设计使用

24-/48-Port IEEE 802.3bt PoE PSE Controller

数据手册 (Rev. 0) 产品选型表

产品模型: 2

Viewing:

产品详情

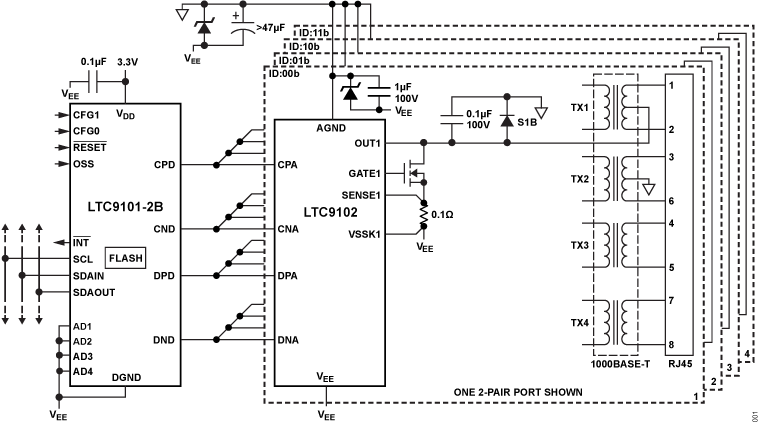

Fully Compliant IEEE 802.3bt Type 3 2-Pair PSE
Up to 48 PSE Ports with One Power Channel per Port
+80V/–20V Tolerant Port-Facing Pins
ECC-Protected eFlash and Data RAMs
Industry-Leading Power Path Efficiency
- 100mΩ Sense Resistance
- 30mΩ or Lower MOSFET R_DS(ON)
Chipset Provides Electrical Isolation
- Eliminates Optos and Isolated 3.3V Supply

Very High Reliability Multipoint PD Detection
Continuous Voltage, Temperature, and Current Monitoring
1MHz I²C Compatible Serial Control Interface
Pin or I²C Programmable PD Power
Available in a 24-Lead 4mm × 4mm (LTC9101-2B) and 64-Lead 7mm × 11mm (LTC9102) QFN Packages

参考资料

数据手册 1

LTC9101-2B/LTC9102: 24-/48-Port IEEE 802.3bt PoE PSE Controller Data Sheet (Rev.0) 01/21/2025

用户手册 1

UG-2131: Evaluating the LTC9101-2/LTC9101-2A/LTC9101-2B and LTC9102 48-Channel IEEE 802.3at/bt PSE (Rev.A) 01/21/2025

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC9101AUF-2B#PBF	24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC9101AUF-2B#TRPBF	24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

Evaluation Software 1

Software Interface Data Sheet

The software interface data sheet for this PSE may be requested from the Software Request Form (SRF). This data sheet describes the I²C interface and programming details for the respective PSE controller.

Software Interface Data Sheet 新

评估套件

Evaluating the LTC9101-2/LTC9101-2A/LTC9101-2B and LTC9102 48-Channel IEEE 802.3at/bt PSE

立即购买更多内容

产品详情

The EVAL-LTC9101-2 is a 48-channel IEEE 802.3at/bt compliant power sourcing equipment (PSE). The EVAL-LTC9101-2 includes the DC3159A-C, DC3159A-D, or DC3159A-E daughter card, the DC3017A-B motherboard, and features the LTC9101-2/ LTC9101-2A/LTC9101-2B and LTC9102 chipset.

In the EVAL-LTC9101-2, the daughter card has a single LTC9101-2x digital controller, where X denotes either the LTC9101-2, LTC9101-2A, or the LTC9101-2B. The DC3159A-C has the LTC9101-2, the DC3159A-D daughter card has the LTC9101-2A and the DC3159A-E has the LTC9101-2B. The digital controller interfaces with four LTC9102 (12-channel) analog controllers for a total of 48 PSE channels.

The LTC9101-2x use a proprietary isolated data interface allowing the LTC9101-2x digital controller to directly connect to the host controller I²C interface and eliminating the need for costly optocouplers and an additional 3.3 V supply.

The EVAL-LTC9101-2 kit connects to up to twenty-four, 802.3af/at/bt PDs directly at each port for 4-pair power evaluation. This kit version can operate autonomously or with host control over I²C.

The EVAL-LTC9101-2A kit connects to up to forty-eight, 802.3af/at PDs with an ethernet splitter for each two ports for 2-pair power evaluation. This kit version requires host control over I²C.

The EVAL-LTC9101-2B kit connects to up to forty-eight, 802.3af/at/bt PDs with an ethernet splitter for each two ports for 2-pair power evaluation. This kit version can operate autonomously or with host control over I²C.

Indicator LEDs quickly show channel status for the 48 power channels. An optional on-board buck regulator provides 3.3 V from the V_EE supply for the digital circuity. This demonstration manual provides an EVAL-LTC9101-2 overview and quick start procedure.

Design files for this circuit board are available.
