HMC520
製造中止
GaAs monolithic microwave integrated circuit (MMIC) I/Q mixer, image reject mixer (IRM) chip and surface mount technology (SMT), 6 GHz to 10 GHz
- 製品モデル
- 5
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- Wide intermediate frequency (IF) bandwidth: dc to 3.5 GHz
- Image rejection: 40 dB
- Local oscillator (LO) to radio frequency (RF) isolation
HMC520: 45 dB
HMC520LC4: 50 dB
- High input IP3
HMC520: 22 dBm
HMC520LC4: 23 dBm - RoHS compliant 4 mm × 4 mm SMT package (HMC520LC4)

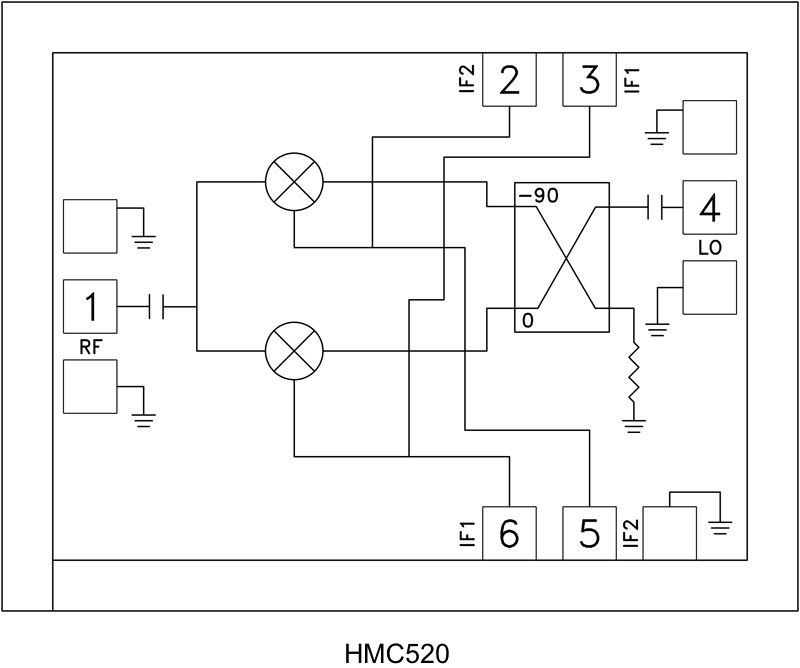

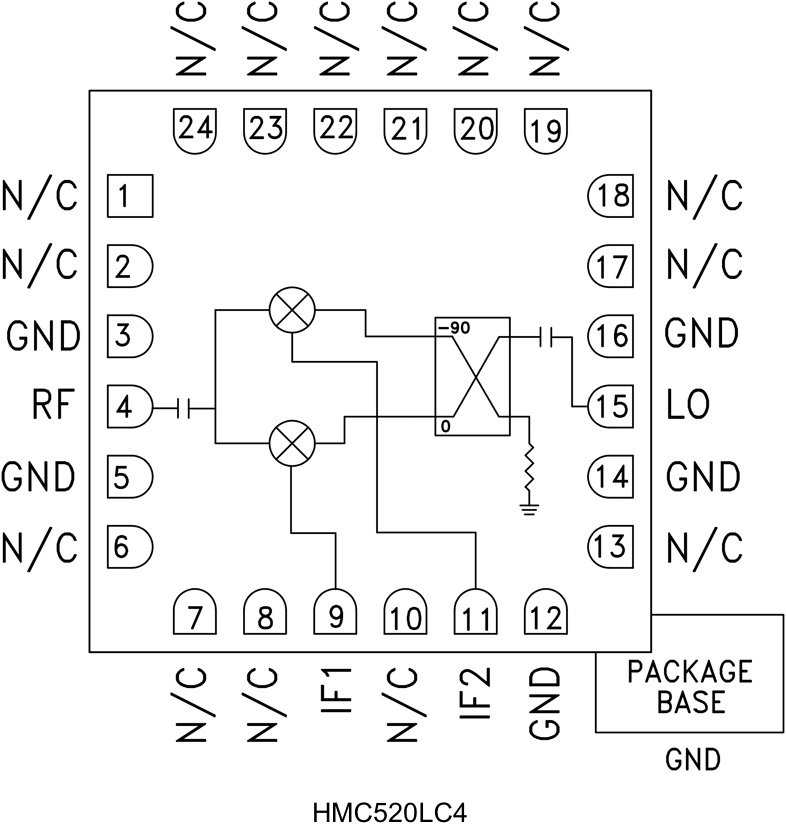

The HMC520 devices are compact I/Q MMIC mixers that are available in a chip (HMC520) or a leadless Pb-free SMT package, both of which can be used as either an IRM or a single sideband (SSB) upconverter. The mixers utilize two standard Hittite double-balanced mixer cells and a 90° hybrid fabricated in a GaAs metal semiconductor field effect transistor (MESFET) process. A low frequency quadrature hybrid was used to produce a 100 MHz USB IF output. These products are much smaller alternatives to hybrid style IRMs and SSB upconverter assemblies. All data shown for the HMC520 is taken with the chip mounted in a 50 Ω test fixture and includes the effects of 1 mil diameter × 20 mil length bond wires on each port. The HMC520LC4 eliminates the need for wire bonding allowing use of surface mount manufacturing techniques.
Applications
- Point-to-point
- Point-to-multipoint radio
- Digital radio
- Very small aperture terminal (VSAT)
- C-band VSAT
- Military radar and electronic countermeasure (ECM)
推奨代替製品
6 GHz ～ 10 GHz、GaAs MMIC I/Q ミキサー
ドキュメント
データシート 1
製造中止品のデータシート 1
テープ＆リール仕様 1
品質関連資料 2
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC520 | CHIPS OR DIE | ||
| HMC520-SX | CHIPS OR DIE | ||
| HMC520LC4 | 24-Lead LCC (4mm x 4mm w/ EP) | ||
| HMC520LC4TR | 24-Lead LCC (4mm x 4mm w/ EP) | ||
| HMC520LC4TR-R5 | 24-Lead LCC (4mm x 4mm w/ EP) |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
12 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices |
||
| HMC520 | 最終販売 | |
| HMC520LC4 | 最終販売 | |
| HMC520LC4TR | 最終販売 | |
これは最新改訂バージョンのデータシートです。
ハードウェア・エコシステム
| 製品モデル | 製品ライフサイクル | 詳細 |
|---|---|---|
| HMC520A | 新規設計に推奨 | 6 GHz ～ 10 GHz、GaAs MMIC I/Q ミキサー |
