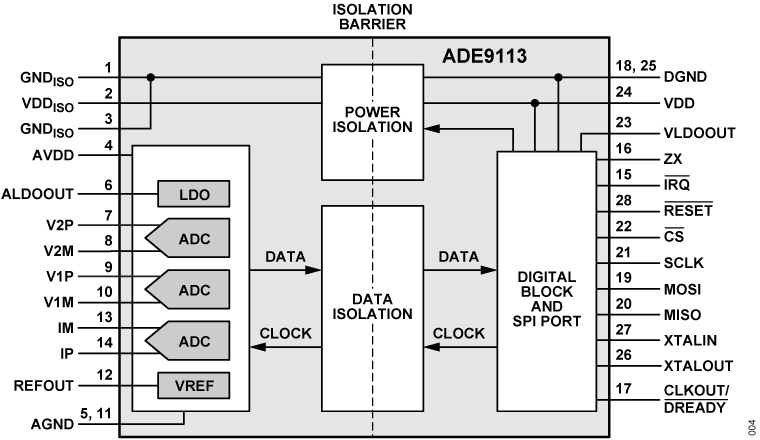

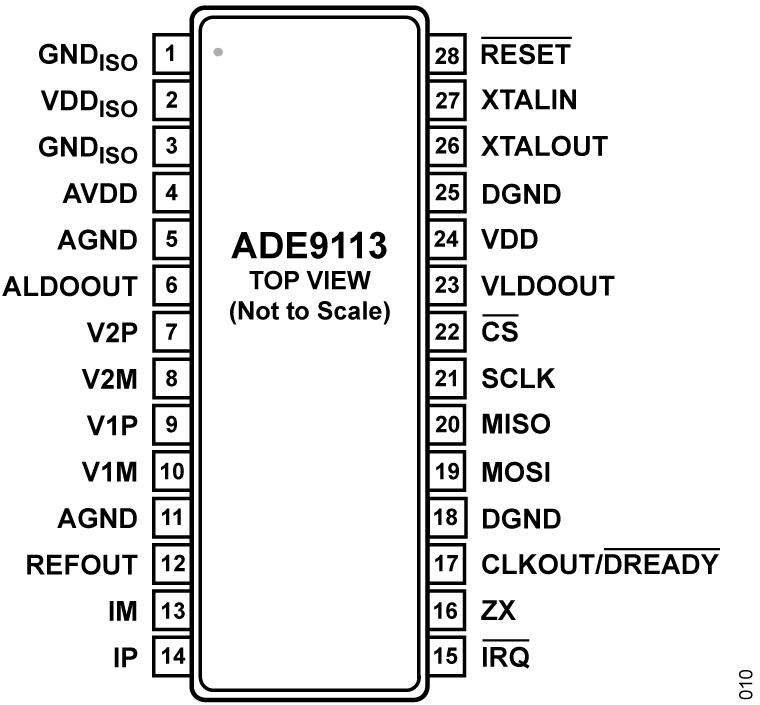

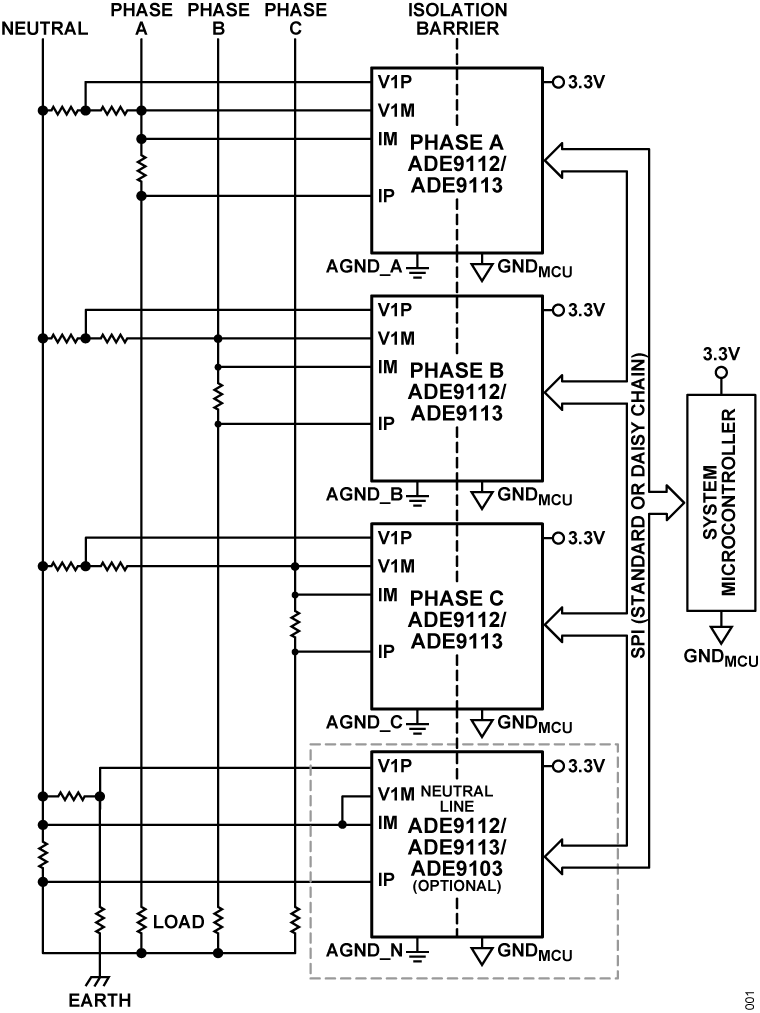

ADE9113

• Fully featured evaluation kit (EV kit) board for the ADE9178 and ADE9113 chipset
• Up to 32 A current measurement with on-board shunts
• Up to 240 VRMS nominal line neutral voltage measurement
• CLI to read/write registers
• GUI to read/write registers

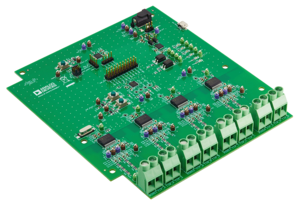

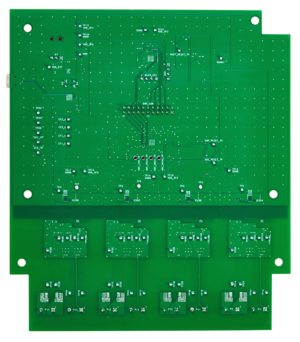

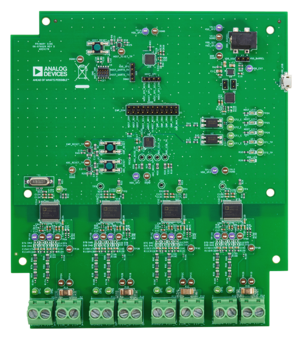

The ADE9178EVKIT# EV kit board allows the performance of the ADE9178 alongside the ADE9113 analog-to-digital converters (ADCs) to be evaluated. With the inclusion of the resistor ladder network and shunts, this ADE9178EVKIT# EV kit board allows for easy setup procedure due to the fact that no external components are needed.

The ADE9178EVKIT# EV kit board comes preprogrammed with software including a command line interface (CLI) tool to communicate with the EV kit over serial and a graphical user interface (GUI). The CLI and GUI tools provide access to the part registers for board calibration and calibration frequency (CF) pulse generation. For more details on how to use the CLI/GUI and access the detailed software guide, see the Evaluation Board Software section.

Full specifications on the ADE9178 and ADE91xx are available in the ADE9178 and ADE91xx data sheet, respectively, available from Analog Devices, Inc., and must be consulted with this user guide when using the ADE9178EVKIT# EV kit board.

• ADE9103、ADE9112、ADE9113 用のフル機能評価用ボード
• システム・デモンストレーション・プラットフォーム（EVAL-SDP-CB1Z）と組み合わせてのPC制御
• 制御およびデータ解析（時間領域と周波数領域）のためのPCソフトウェア
• スタンドアロン機能

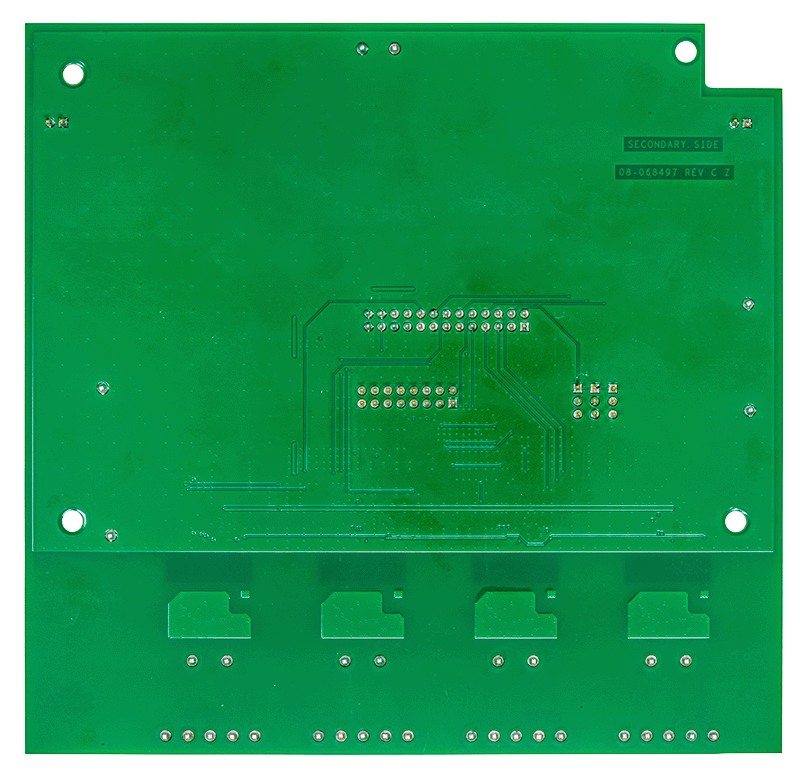

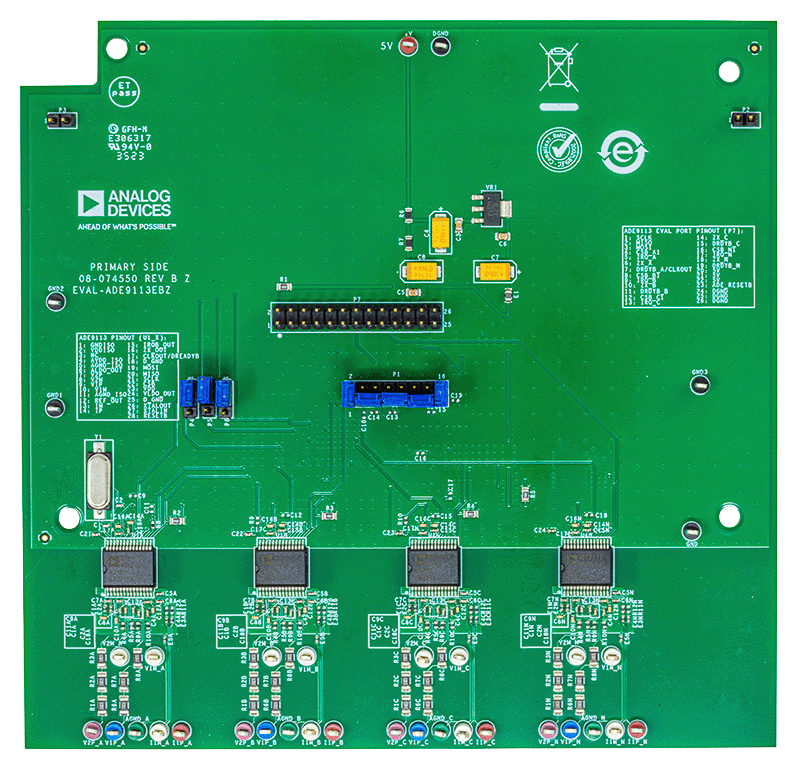

EVAL-ADE9113KTZ評価用キットでは、このキットに含まれている2枚のボード（およびEVAL-SDP-CB1Z）を組み合わせて使用し、実際の3相メータ実装に近い状況でADE9113（絶縁型Σ-Δ A/Dコンバータ（ADC））の性能を評価します。このキットは、ADE9103やADE9112 ADCの同様の機能をテストする目的でも使用できますが、EVAL-ADE9113KTZに搭載されているのはADE9113デバイスのみであるため、このユーザ・ガイドではADE9113にしか言及していません。評価用ソフトウェアはLabVIEW^®で作成されており、PCインターフェースを介して、各ADE9113のレジスタにアクセスできるようになっています。加えて、マイクロコントローラ・ユニット（MCU）アダプタ・ボードは、Arduino®（アルドゥイーノ）シールド・タイプのコネクタに対応しているため、Nucleo-F103RBと組み合わせてカスタム・ファームウェアを開発したり、リファレンス・コードを使用したりすることができます。

• Complete reference design for Type 2 EVSE Cordset (IC-CPD)
• Power level from 2.3 kW up to 3.6 kW
• Designed to comply with the applicable standards - IEC61851, IEC62752
• Incorporates a 6 mA DC/30 mA rms RCD and a control pilot circuit
• Stuck relay detection and relay state of health
• Overtemperature detection
• Integrated isolation
• Reduced component count for cost optimization
• Bluetooth 5.2 interface for connectivity to external devices
• Open-source software stack to enable custom firmware development

The AD-ACEVSECRDSET-SL is a complete Type 2 EVSE 3.6 kW charging cable solution, providing a reference design intended for evaluation and prototyping of electric vehicle (EV) charging systems.

The system includes a 3-channel isolated sigma-delta (Σ-Δ) ADC for voltage and current measurement on the single-phase power input and measurement of the relay voltage for solder contacts detection and relay state of health. Safe operation is enabled by the inclusion of a 6 mA DC / 30 mA rms RCD. Detection of overvoltage, undervoltage, overcurrent, overtemperature and EV diode presence is also available.

A MAX32655 low-power, ARM^® Cortex^®-M4 Microcontroller implements the logic for system control and communication with the EV over the control pilot interface. A programming and debugging interface are included. The MAX32655 Bluetooth 5.2 interface enables connectivity to external devices.

The design is accompanied by an open-source software stack and reference applications, enabling custom software development to start from a proven implementation validated to meet the applicable standards. An external programmer such as the MAX32625PICO MAXDAP Programming Adapter, or any other similar programmer supporting the SWD interface, is required to enable firmware programming and debug.

The system is designed to comply with the IEC61851 and IEC62752 standards.

APPLICATIONS

• EV charging

• Metrology subsystem plus selected other features of a level 2, 7kW to 22kW electric vehicle supply equipment (EVSE)
• Full-featured board for ADE9112, ADE9113, and ADE9178
• Rated up to three phase, 240V RMS line to neutral voltage
• Rated up to 32A current measurement with on-board shunts
• Supports up to 22kW combined power transfer to load
• Features MAX32672 low power, secure microcontroller
• Supports LCD display for energy and state updates
• Supports MODBUS™ protocol over RS-485 communication interface
• Supports Protobuf™ messages to communicate with EVerest open source software (OSS)
• IEC61851-compatible state machine implementation

The AD-ACEVSE22KWZ-KIT is a reference design for the metrology subsystem plus selected other features of a level 2, 7 kW to 22 kW AC electric vehicle supply equipment (EVSE). It includes the ADE9113 isolated Σ-Δ analog-to-digital converter (ADC) coupled with the ADE9178 metrology DSP to accurately measure energy delivered to an electric vehicle (EV). It includes the MAX32672 ultralow- power ARM^® Cortex^®-M4 processor, a cost-effective, highly integrated, and highly reliable 32-bit microcontroller to accumulate energy measurements and securely send it to a host for display. A charge control state machine is run on the microcontroller to transition through different charge states when a charging plug is inserted into an electric vehicle. The kit includes a flexible printed circuit (FPC) connector and LCD to read the energy measurements and state transitions during a charging cycle. The power input/output, control pilot (CP), and proximity pilot (PP) signals are exposed on connectors at the edge of the board. The energy delivered to the EV is measured as a voltage drop across shunts and a resistor ladder network, which makes it easy to set up the boards in the field.
