ADA4627-1

PRODUCTION

36 V, 19 MHz, Low Noise, Low Bias Current, JFET Op Amp

Data Sheet (Rev. F) Product Selection Table

Part Models: 7
1ku List Price: Starting From $4.09

Viewing:

Part Details

Low offset voltage: 200 μV maximum
Offset drift: 1 μV/°C typical
Very low input bias current: 5 pA maximum
Extended temperature range: −40ºC to +125ºC
±5 V to ±15 V dual supply
ADA4627-1 GBW: 19 MHz
ADA4637-1 GBW: 79 MHz
See data sheet for additional information

Part Models: 7
1ku List Price: Starting From $4.09

Documentation

Data Sheet 1

ADA4627-1/ADA4637-1: 30 V, High Speed, Low Noise, Low Bias Current, JFET Operational Amplifier Data Sheet (Rev.F) 08/02/2010

Application Note 6

AN-202: An IC Amplifier User’s Guide to Decoupling, Grounding, and Making Things Go Right for a Change (Rev.B) 02/14/2015

AN-1581: High Speed Instrumentation Amplifier Using the AD8271 Difference Amplifier and the ADA4627-1 JFET Input Op Amp (Rev.B) 09/02/2018

AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps 08/07/2023

AN-1344: High Common-Mode Voltage Current Loop Transmitter Front End 07/31/2024

Low Noise Amplifier Selection Guide for Optimal Noise Performance 07/24/2020

AN-931: Understanding PulSAR ADC Support Circuitry 07/30/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

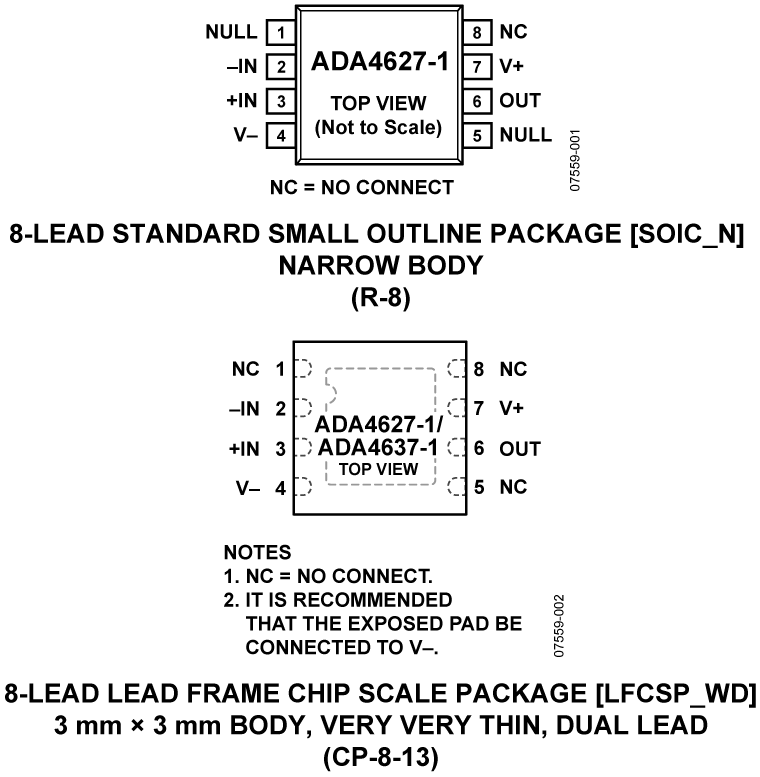

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADA4627-1ACPZ-R7	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1ACPZ-RL	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1ARZ-R7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1ARZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1BRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4627-1BRZ-R7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 25, 2017 - 17_0068 CANCELLED: Addition of ASE Korea as an Alternate Assembly Site for Select 3x3mm and 4x4mm Body Sizes LFCSP Devices
		PCN17_0068_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADA4627-1ACPZ-R7	PRODUCTION
ADA4627-1ACPZ-RL	PRODUCTION
Feb 13, 2014 - 14_0038 Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0038_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADA4627-1ACPZ-R7	PRODUCTION
ADA4627-1ACPZ-RL	PRODUCTION
Nov 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
ADA4627-1ARZ	PRODUCTION
ADA4627-1ARZ-R7	PRODUCTION
ADA4627-1ARZ-RL	PRODUCTION
ADA4627-1BRZ	PRODUCTION
ADA4627-1BRZ-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 1

ADA4627-1 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

ADA4627

Precision ADC Driver Tool

The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input

Open Tool

SPICE Model 1

ADA4627 SPICE Macro Model

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

EVAL-OPAMP-1 Evaluation Board

Buy Now View Details

Product Details

The Universal Precision Op Amp Evaluation Boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.

EVAL-PRAOPAMP-1KSZ (Single 5-Lead SC70) KS-5
EVAL-PRAOPAMP-1RJZ (Single 5-Lead SOT 23) RJ-5
EVAL-PRAOPAMP-1RMZ (Single 8-Lead MSOP) RM-8
EVAL-PRAOPAMP-1RZ (Single 8-Lead SOIC) R-8

Single-Channel, Fully Isolated, Low Latency Data Acquisition System (DAQ)

Buy Now View Details

Features and Benefits

Fully Isolated PMOD-to-FMC interposer board
Software programmable bipolar input ranges (±1.1 V to ±11.0 V)
- Allows single-ended and differential signals
GΩ input impedance allows direct interface with sensors
On-board 5 V reference and buffer
Complete power management solution
SPI-/QSPI-/MICROWIRE-/DSP-compatible serial interface
PC software for control and data analysis of time and frequency domain

Product Details

The ADSKPMB10-EV-FMCZ signal chain kit is a two-board solution, which consists of a Precision Medium Bandwidth Data Acquisition Solution on a PMOD form factor and a Fully Isolated PMOD-to-FMC interposer board.

The Precision Medium Bandwidth Data Acquisition Solution features a discrete programmable gain instrumentation amplifier (PGIA) that was built using a 30V, High Speed, Low Noise, Low Bias Current, JFET Operational Amplifier, the ADA4627-1, a Precision Quad Matched Resistor Network, the LT5400, a Low Capacitance, 4-Channel, ±15 V/+12 V iCMOS^™ Multiplexer, the ADG1209 and the internal Fully Differential Amplifier (FDA) ADC driver of the ADAQ4003. The PGIA in thru front-end offers high input impedance that allows direct interface with a variety of sensors. A programmable gain is often needed to adapt the circuit to different input signal amplitudes—unipolar or bipolar and single-ended or differential with varying common-mode voltages. The PGIA works with the ADAQ4003, an 18-Bit, 2 MSPS, µModule^® Data Acquisition Solution.

The Fully Isolated PMOD-to-FMC interposer board was designed using a Low Noise, 1A, 1MHz Push-Pull DC/DC Driver with Duty Cycle Control, the LT3999, a Robust 3.0kVrms Digital Isolators w/ Fail-Safe for the SPI lines and PGIA gain control pins, the ADuM152N and the ADuM120N, and a Low noise and ultra-low noise LDO regulators the ADP7105 and the ADP150N respectively.
