TMC2240

推荐新设计使用

36V 2ARMS+ Smart Integrated Stepper Driver with S/D and SPI

数据手册 (Rev. 2) 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Voltage Range 4.5V to 36V DC
  • Low RDS(ON) (HS + LS): 230mΩ Typical (TA = 25°C)
  • Current Ratings per H-Bridge (Typical at 25°C):
    • IMAX = 5.0A (Bridge Peak Current)
    • IRMS = 2.1ARMS (3A Sine Wave Peak)
  • Fully Integrated Lossless Current Sensing
  • Step/Direction (S/D) Interface with MicroPlyer™ Step Interpolation
  • SPI and Single Wire UART
  • Incremental Encoder Interface
  • Highest Resolution 256 Microsteps per Full Step
  • Flexible Wave Table and Phase Shift to Match Motor
  • StealthChop2™ Silent Motor Operation
  • SpreadCycle™ Highly Dynamic Motor Control Chopper
  • Jerk-Free Combination of StealthChop2™ and SpreadCycle™
  • StallGuard2™ and StallGuard4™ Sensorless Motor Load Detection
  • CoolStep™ Current Control for Energy Savings up to 75%
  • Passive Braking and Freewheeling Mode
  • Motor Phase and Chip Temperature Measurement
  • General-Purpose Analog Input
  • Full Protection and Diagnostics
  • Overvoltage Protection Output
  • Compact 5mm x 5mm TQFN32 package or 9.7mm × 4.4mm TSSOP38
TMC2240
36V 2ARMS+ Smart Integrated Stepper Driver with S/D and SPI

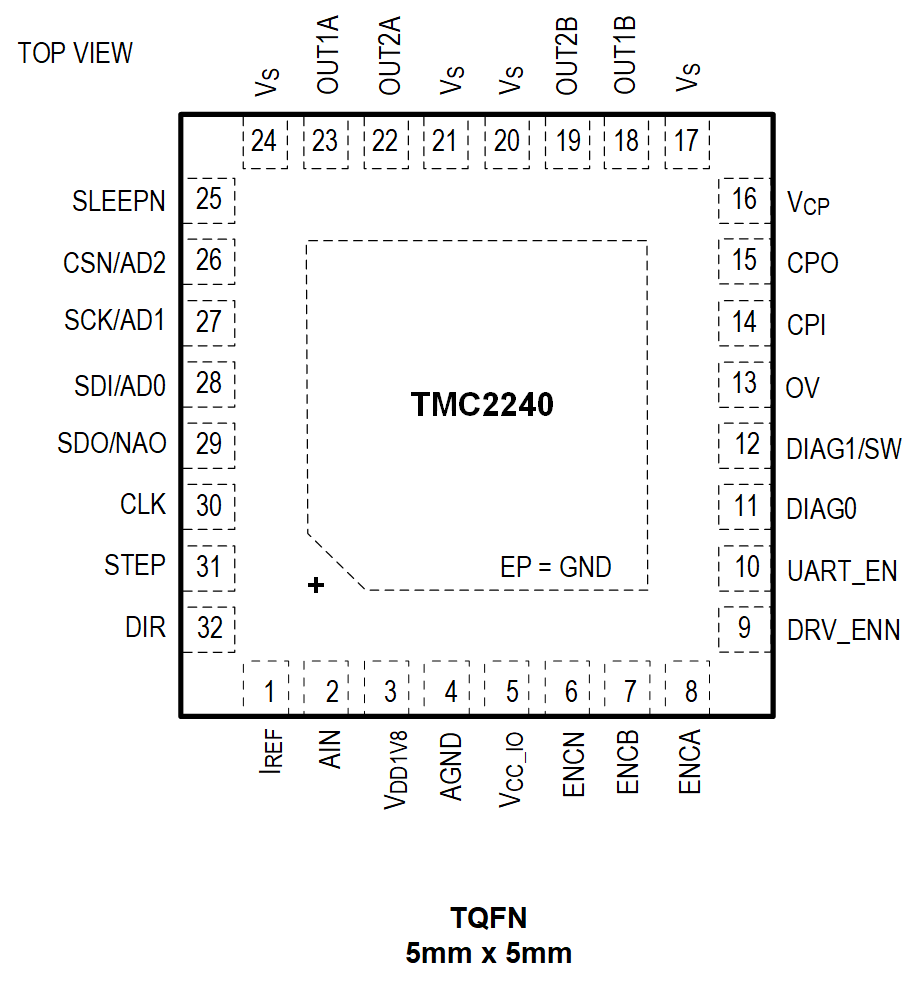

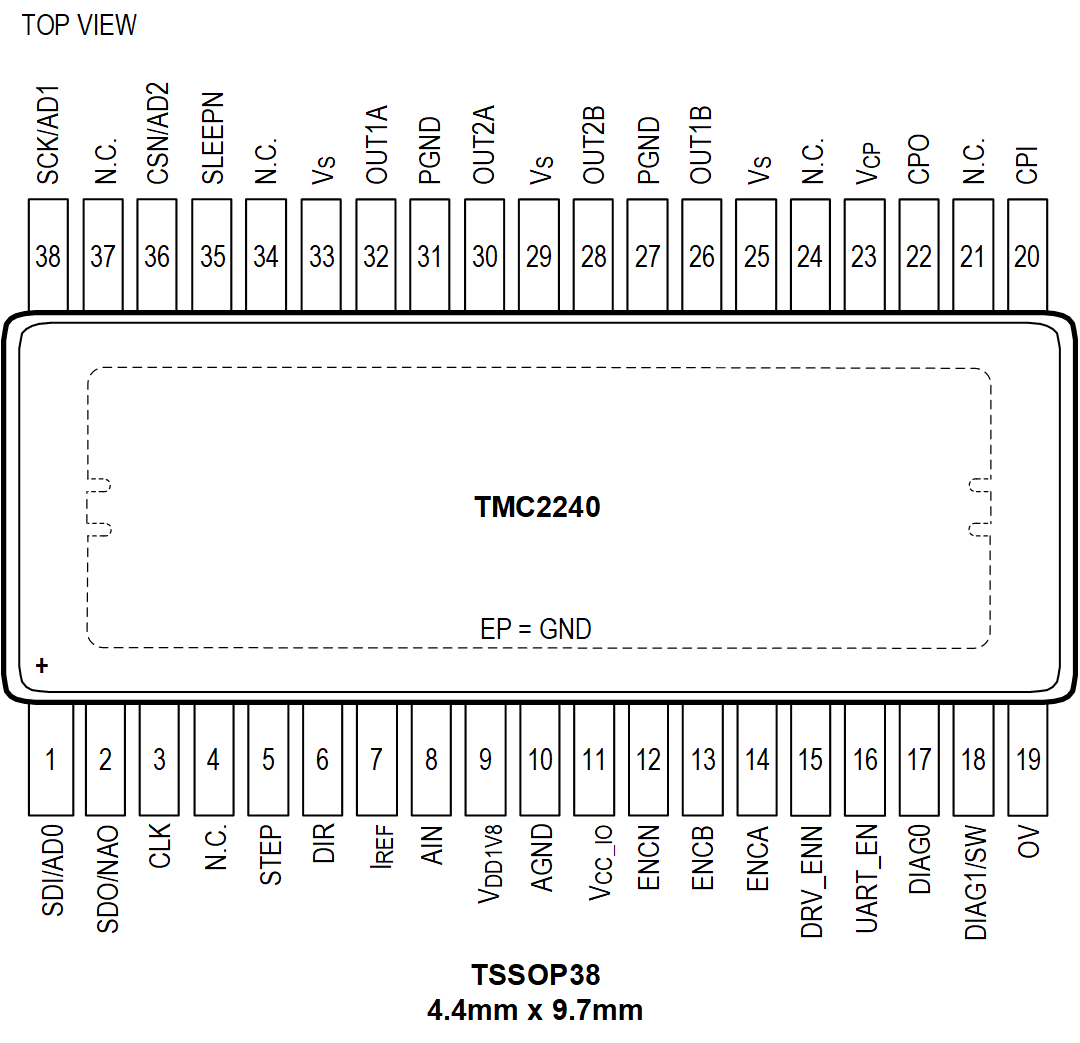

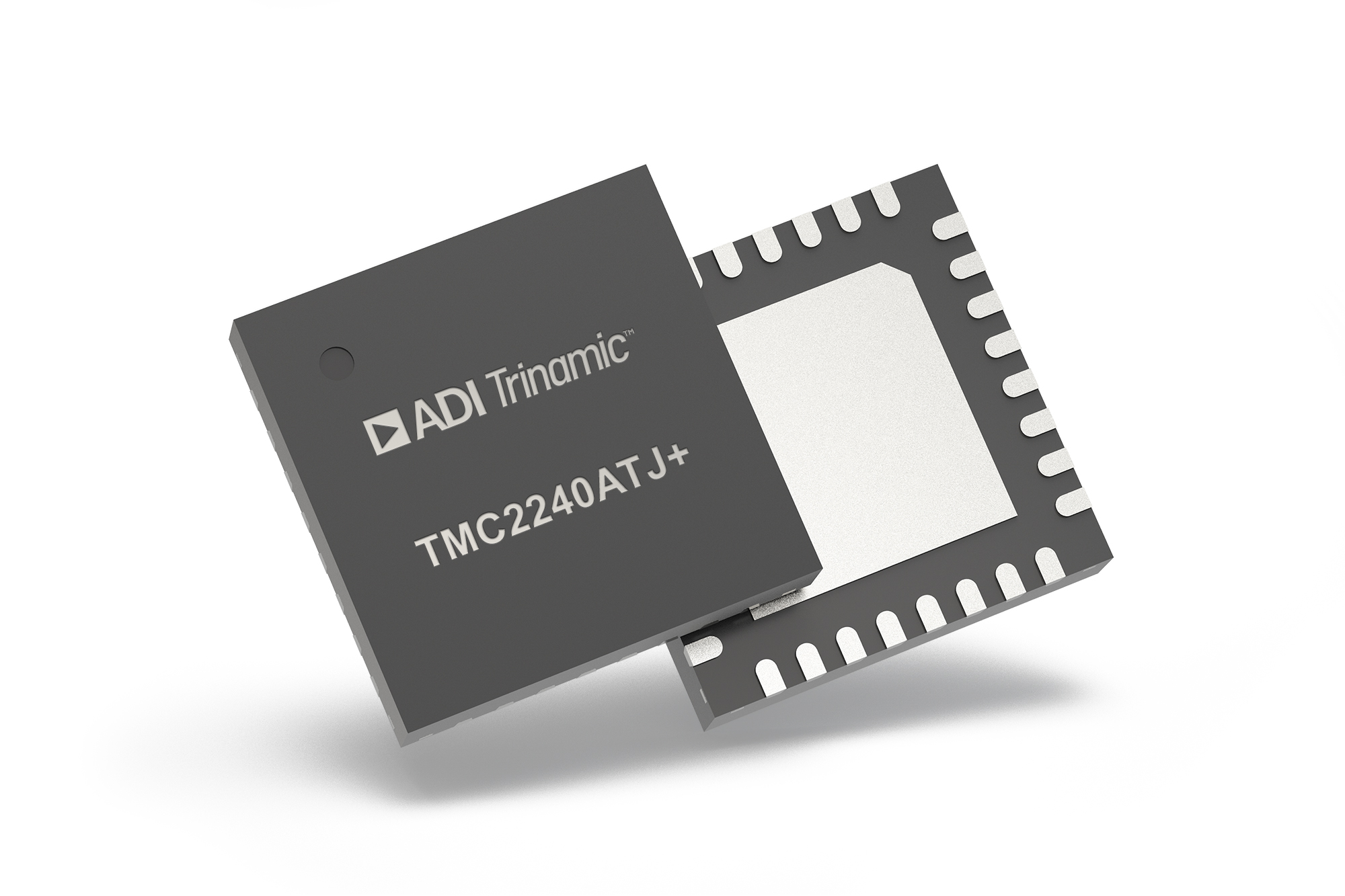

tmc2240atj tmc2240_block_diagram TMC2240 Pin Configuration TQFN TMC2240 Pin Configuration TSSOP
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1

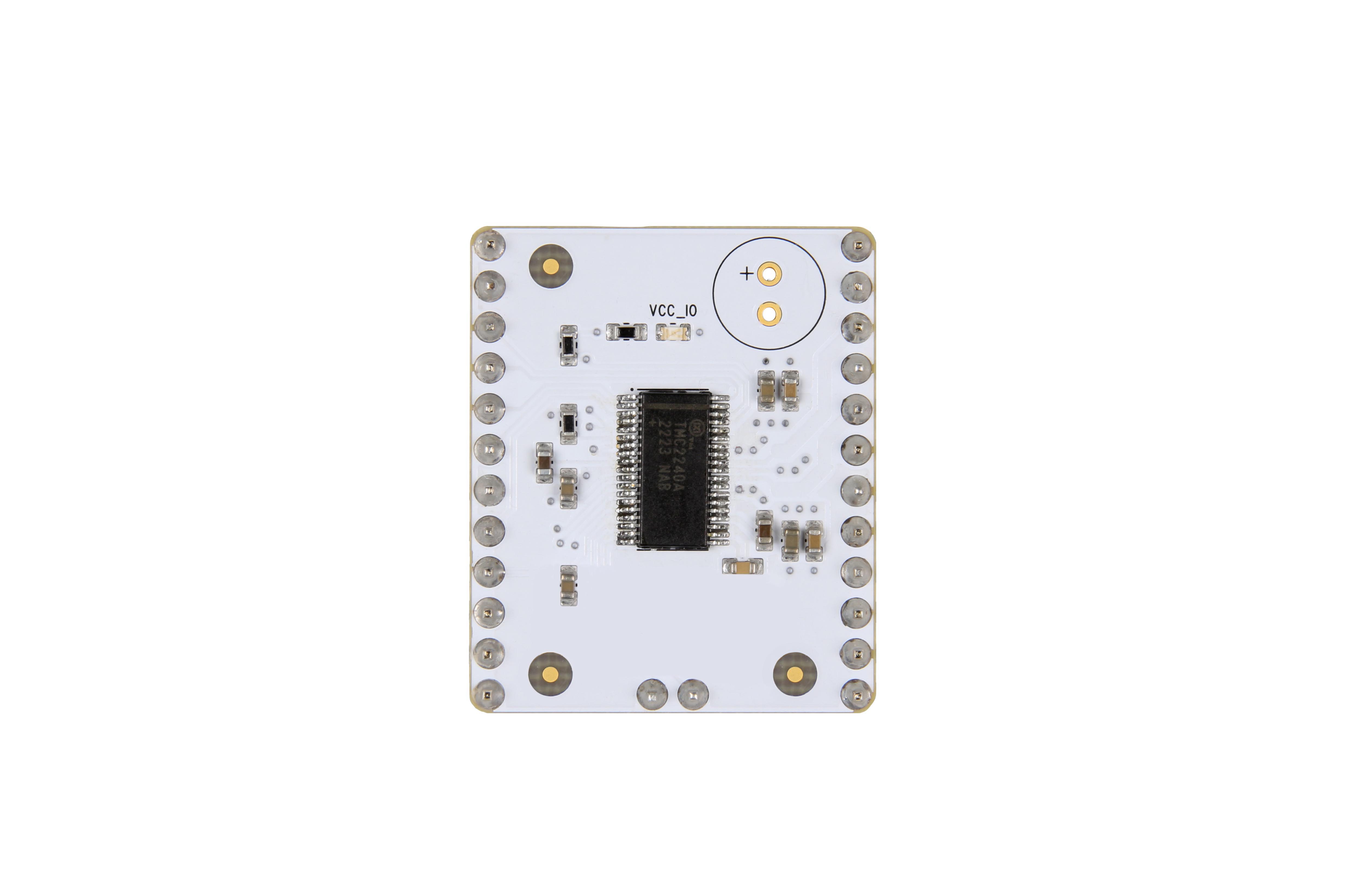

TMC2240-BOB

Evaluation Board for TMC2240

立即购买 更多内容

特性和优点

  • CoolStep™
  • Passive Braking
  • SpreadCycle™
  • StallGuard2™
  • StallGuard4™
  • StealthChop2™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 2ARMS, 36V

产品详情

The TMC2240 breakout board is a development board with the dedicated TMC2240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

eval board
schematic 2
schematic 3

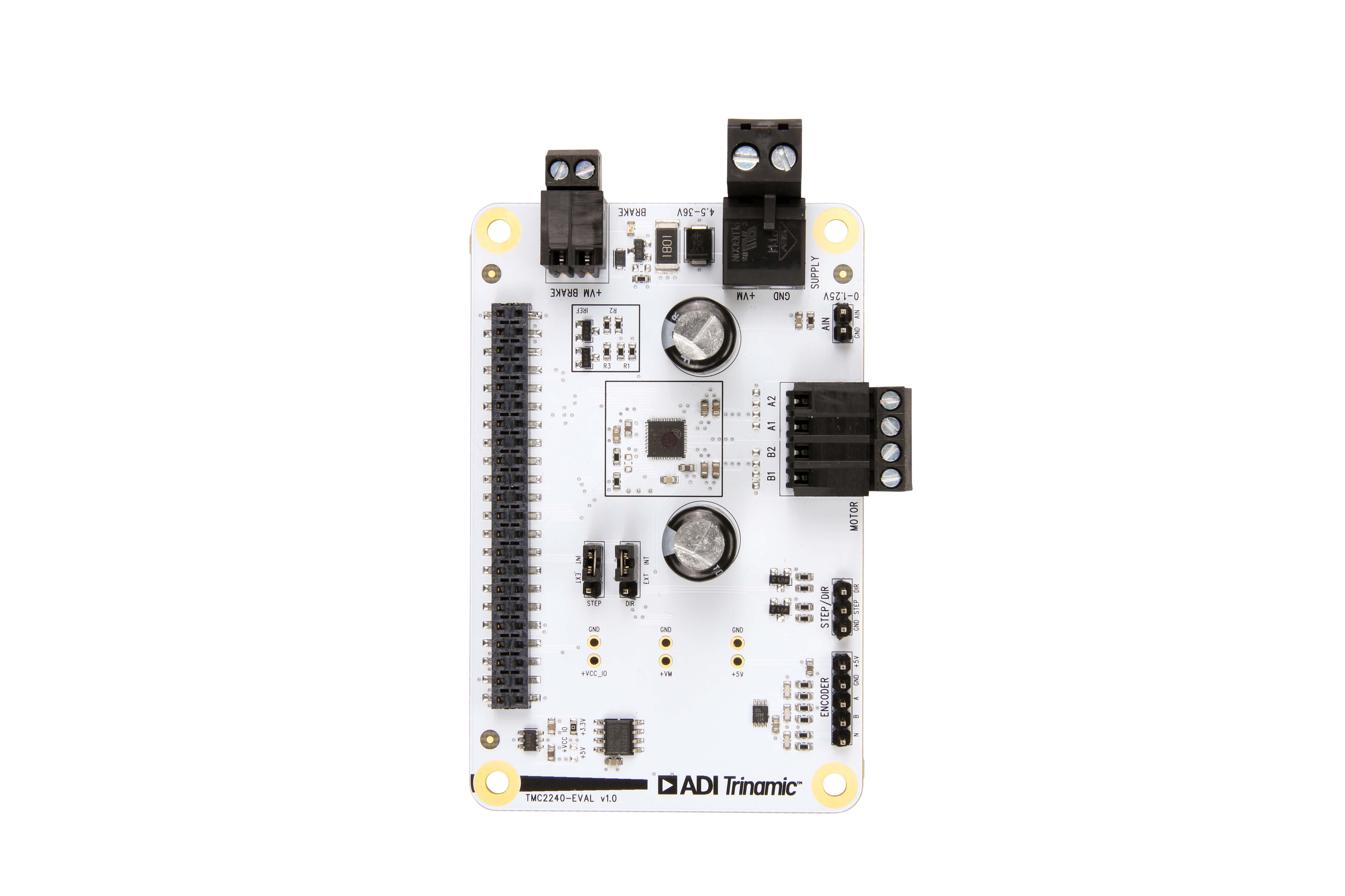

TMC2240-EVAL

Evaluation Board for TMC2240

立即购买 更多内容

特性和优点

  • 2-phase stepper motor up to 2.0A coil current (3.0A peak)
  • Supply Voltage 4.5 to 36V DC
  • SPI and Single Wire UART
  • 1 to 256 microsteps
  • Step/Dir interface
  • Incremental Encoder interface
  • Flexible wave table and phase shift to match motor
  • StealthChop2™ silent PWM mode
  • StallGuard4™ sensorless motor load detection
  • 2.1A RMS, 36V

产品详情

The TMC2240-EVAL allows you to explore all functions of the TMC2240.

The TMC2240-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke and one TMC2240-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2240 are accessible with probes on the bridge board. TMC2240-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
TMC2240-BOB
Evaluation Board for TMC2240
tmc2240-bob
TMC2240-EVAL
Evaluation Board for TMC2240
tmc2240-eval tmc2240_block_diagram
