MAX22516
推荐用于新设计IO-Link Data Link Controller with Transceiver and Integrated DC-DC
- 产品模型
- 4
产品详情
- Easily Enhance IO-Link Communication
- COM3: 400μs (min) Cycle Time Support
- Data Link Controller Autonomously Answers All Master Message Requests
- Deterministic Device Answer Delay
- Highly Integrated Solution
- Complete Data Link Layer Includes
- Message Handler
- ISDU Handler
- Page Handler
- Event Handler
- Mode Handler
- Startup Handler
- 15MHz SPI with Burst Mode
- High Efficiency 200mA DC-DC with Adjustable Output
- High Accuracy 3.3V and 5V Linear Regulators
- Flexible Application
- Transparent (TX, RX, TXEN) Mode Option
- LED Drivers with Programmable Sequence
- COM1, COM2, and COM3 Data Rates
- Robust and Reliable Design
- Integrated ±1kV/500Ω Surge Protection
- Optimized for Small Sensor Designs
- Available in Small WLP (3.53mm x 3.16mm) and 40-pin TQFN-EP (5mm x 5mm) Packages
The MAX22516 IO-Link data link controller integrates a 24V C/Q transceiver, an auxiliary digital input and output, an integrated DC-DC, 5V and 3.3V linear regulators, and a full-feature IO-Link data link controller.
Once configured, the MAX22516 data link controller operates the IO-Link transceiver and requires no intervention from the external microcontroller during normal operation. Alternatively, the IO-Link transceiver can be controlled using the UART interface (TXEN, TX, and RX) directly, or through the serial-peripheral interface (SPI). The data link controller supports and includes, receive and transmit buffers for IO-link communication. Buffers for maximum size process data, ISDU, event, and page data reduce the need for timecritical microcontroller intervention, which allows the microcontroller to focus on the application layer task.
The MAX22516 features extensive integrated protection to ensure robust communication in harsh industrial environments. All IO-Link interface pins (V24, C/Q, DO, DI, and GND), are reverse voltage protected, shortcircuit protected, and feature integrated ±1kV/500Ω surge protection.
The MAX22516 is available in a tiny WLP package (3.53mm x 3.16mm) or 40-pin TQFN-EP package (5mm x 5mm) and operates over the -40°C to +125°C temperature range.
APPLICATIONS
- IO-Link Sensor and Actuator Devices
- Industrial Sensors
参考资料
数据手册 1
器件驱动器 1
非常见问题 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX22516ATL+ | Thin Quad Flatpack, No Leads | ||
| MAX22516ATL+T | Thin Quad Flatpack, No Leads | ||
| MAX22516AWO+ | 42-WLCSP-N/A | ||
| MAX22516AWO+T | 42-WLCSP-N/A |
这是最新版本的数据手册
软件资源
Evaluation Software 0
找不到您所需的软件或驱动?
工具及仿真模型
软件开发 1
评估套件

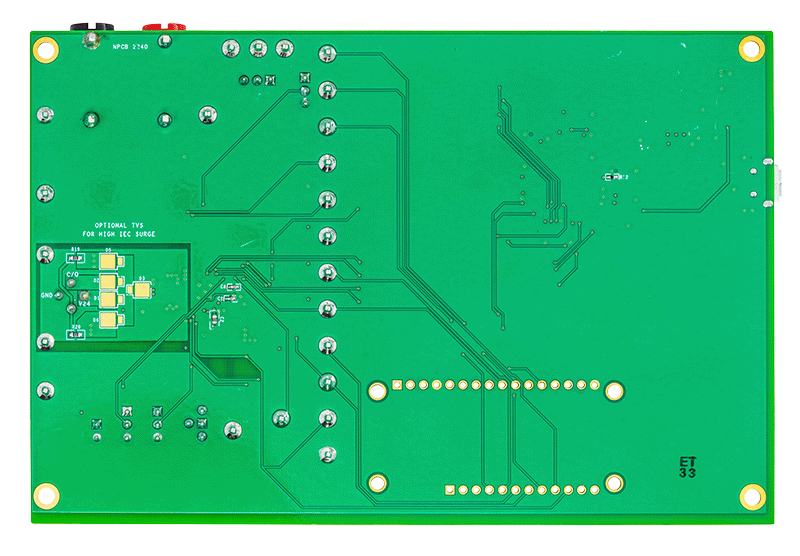

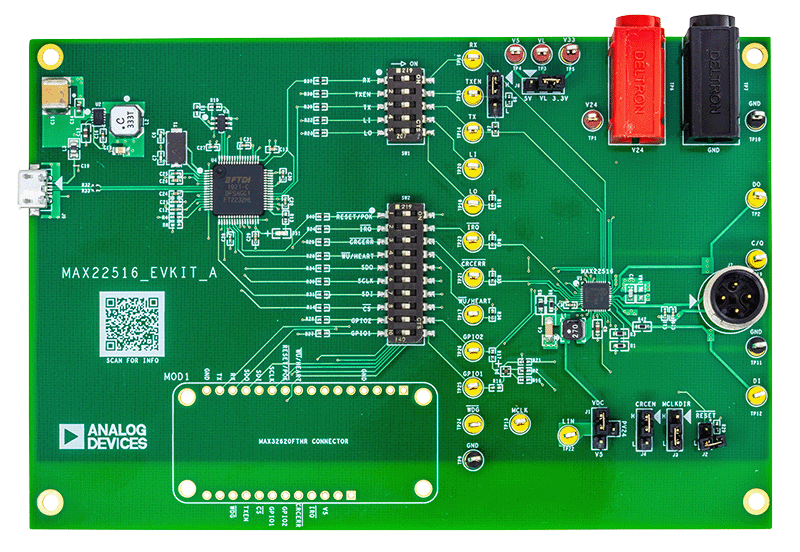

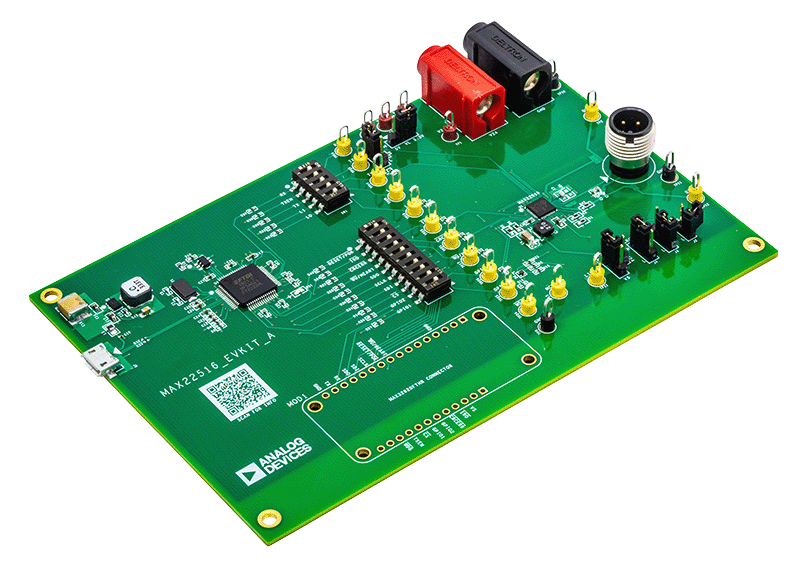

MAX22516 评估套件
