ADUM2210

量产

双通道数字隔离器、5KV

数据手册 (Rev. G) 产品选型表

产品模型: 12

Viewing:

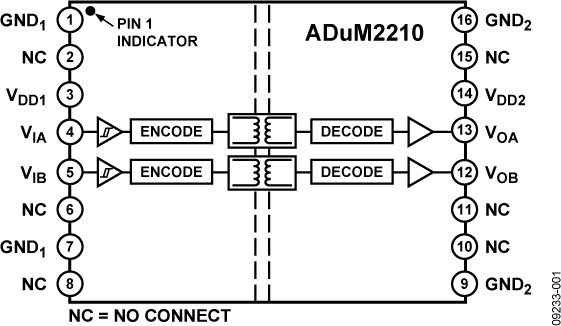

产品详情

高隔离电压：5000 V rms
增强的系统级ESD保护性能，符合IEC 61000-4-x标准
低功耗工作
5 V电源
每个通道1.6 mA（最大值，0 Mbps至1 Mbps）
每个通道3.7 mA（最大值，10 Mbps）
3.3 V电源
每个通道1.4 mA（最大值，0 Mbps至1 Mbps）
每个通道2.4 mA（最大值，10 Mbps）

3.3 V/5 V电平转换
工作温度最高可达：125°C
默认低电平输出
高数据速率：DC至10 Mbps (NRZ)
精密时序特性
脉冲宽度失真：3 ns（最大值）
通道间匹配：3 ns（最大值）
通过汽车应用认证
欲了解更多特性，请参考数据手册

产品模型: 12

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

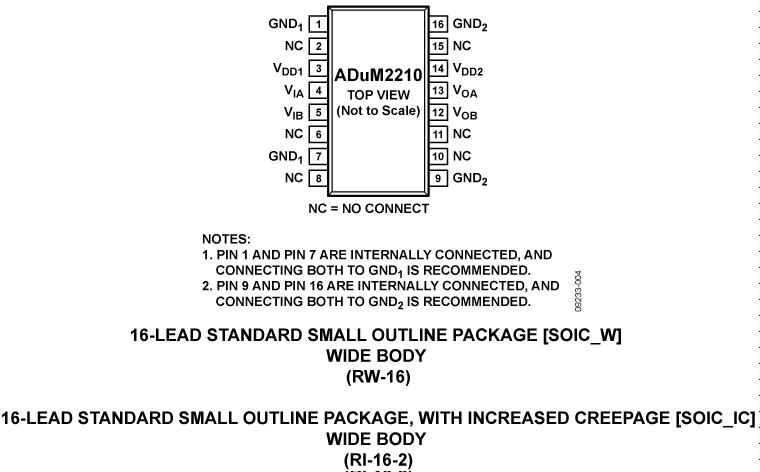

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
ADUM2210SRIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210SRIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210SRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210SRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210TRIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210TRIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210TRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210TRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210WSRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210WSRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210WTRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM2210WTRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 6, 2015 - 15_0190 ADuM2210/ADuM2211 Die Revision and Data Sheet Change
		PCN15_0190_Form Material_Report Datasheet Specification Comparison Datasheet Specification Comparison Qualification Results Summary Qualification Results Summary
ADUM2210SRIZ	量产
ADUM2210SRIZ-RL	量产
ADUM2210SRWZ	量产
ADUM2210SRWZ-RL	量产
ADUM2210TRIZ	量产
ADUM2210TRIZ-RL	量产
ADUM2210TRWZ	量产
ADUM2210TRWZ-RL	量产
9月 22, 2015 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Detailed Change Description Qualification Results Summary
ADUM2210SRIZ	量产
ADUM2210SRIZ-RL	量产
ADUM2210SRWZ	量产
ADUM2210SRWZ-RL	量产
ADUM2210TRIZ	量产
ADUM2210TRIZ-RL	量产
ADUM2210TRWZ	量产
ADUM2210TRWZ-RL	量产
11月 6, 2013 - 13_0283 Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3
		PCN13_0283_Form Material_Report
ADUM2210SRIZ	量产
ADUM2210SRIZ-RL	量产
ADUM2210TRIZ	量产
ADUM2210TRIZ-RL	量产
2月 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM2210SRIZ	量产
ADUM2210SRIZ-RL	量产
ADUM2210SRWZ	量产
ADUM2210SRWZ-RL	量产
ADUM2210TRIZ	量产
ADUM2210TRIZ-RL	量产
ADUM2210TRWZ	量产
ADUM2210TRWZ-RL	量产
8月 7, 2017 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Qualification Results Summary Qualification Results Summary Detailed Change Description Qualification Results Summary
ADUM2210WSRWZ	量产
ADUM2210WSRWZ-RL	量产
ADUM2210WTRWZ	量产
ADUM2210WTRWZ-RL	量产
10月 6, 2015 - 15_0191 ADuM2210W/ADuM2211W Die Revision and Data Sheet Change
		PCN15_0191_Form Material_Report Datasheet Specification Comparison Datasheet Specification Comparison Qualification Results Summary
ADUM2210WSRWZ	量产
ADUM2210WSRWZ-RL	量产
ADUM2210WTRWZ	量产
ADUM2210WTRWZ-RL	量产
