ADIN3310

推荐新设计使用

Industrial Ethernet Time Sensitive Networking Switch

数据手册 (Rev. A) 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Ethernet MAC interfaces: 10 Mb, 100 Mb or 1 Gb per port
    • 6-port: 4x RMII/RGMII/SGMII and 2x RMII/RGMII
    • 3-port: 2x RMII/RGMII/SGMII and 1x RMII/RGMII
    • SGMII, 1000BASE-SX/1000BASE-LX/1000BASE-KX, and 100BASE-FX
  • Low Latency Layer 2 Ethernet switch
    • Deterministic latency from port to port
    • Cut-through or store and forward operation
    • Traffic types and bridge delay per IEEE/IEC 60802
    • Standard bridging per IEEE 802.1Q-2018 (tailored)
      • Each port is nonblocking and Independent
    • 32 kB frame buffer per transmit port
    • 4096 VLANs
  • Time synchronization
    • IEEE 802.1AS-2020
    • IEEE 1588-2019 default profile
    • IEEE C37.238-2017 energy profile
    • 8 ns timestamp resolution
    • Frames timestamped on ingress or egress
  • IEEE 802.1Q time sensitive networking bridging
    • Qbv: enhancements for scheduled traffic
    • Qci: per stream filtering and policing
    • Qbu: frame preemption
    • Qch: cyclic queuing and forwarding
    • Qav: forwarding and queuing enhancements
    • Qcc: stream reservation protocol enhancements
    • Number of streams
      • 16000 TSN Layer 2 streams
      • 256 extended lookup streams (IPV4, IPV6, PCP, and so on)
  • PROFINET SendList control
  • High availability and redundancy
    • IEEE 802.1CB Frame Replication and Elimination for Reliability
    • IEC62439-3:2016-03 HSR-/PRP-Compliant Protocol for Seamless Failover
    • IEC62439-3-2021-12 Media Redundancy Protocol
  • Custom Layer 2 on two ports for PROFINET IRT, EtherNet/IP beacon-based DLR, POWERLINK (100 Mbps)
  • Packet assist engine offloads host and manages TSN and switch features
  • Portable C drivers for TSN and industrial Ethernet protocols
  • NETCONF support (driver to Sysrepo translation layer)
  • Hardware root of trust based security features
    • Secure boot, secure update with antirollback
    • Hardware-based cryptography
    • Secure host pairing Protocol
    • Cryptographic authenticity checking
  • Interfaces to external host processor
    • RMII, RGMII, SGMII, SPI, dual SPI, or Quad SPI
  • Power
    • 3 external power supplies: 1.1 V, 3.3 V, and VDDIO_x (1.8 V, 2.5 V, or 3.3 V)
    • Total chip power 60 mW per port at 1 Gbps, full utilization with VDDIO_B = 1.8 V
  • Package and temperature range
    • 256-ball CSP_BGA, 14 mm × 14 mm, 0.8 mm pitch
    • 196-ball CSP_BGA, 12 mm × 12 mm, 0.8 mm pitch
    • Fully specified for −40°C to +85 and −40°C to 105°C
ADIN3310
Industrial Ethernet Time Sensitive Networking Switch
ADIN3310 Functional Block Diagram ADIN3310 Pin Configuration ADIN3310 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 3

常见问题 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

软件资源

Evaluation Software 2

硬件生态系统

部分模型 产品周期 描述
多个输出降压调节器 1
ADP5023
推荐新设计使用 双通道、3 MHZ、800 MA降压调节器和300 MA LDO
高输入电压降压稳压器 1
LT8619
LT8619-5
具 6μA 静态电流的 60V、1.2A 同步单片降压型稳压器
工业以太网嵌入式交换机 1
ADIN6310
Industrial Ethernet Time Sensitive Networking Switch
工业以太网物理层设备 3
ADIN1100
推荐新设计使用 稳健型、低功耗10BASE-T1L工业以太网PHY
ADIN1200
推荐新设计使用 可靠的工业低功耗 10 Mbps 和 100 Mbps 以太网 PHY
ADIN1300
推荐新设计使用 鲁棒的工业、低延迟和低功耗10 Mbps、100 Mbps和1 Gbps以太网PHY
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

BSDL 模型文件 1

IBIS 模型 2

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADIN3310

ADIN3310 Industrial Ethernet TSN Switch Hardware User Guide

立即购买 更多内容

特性和优点

  • 3 port TSN Ethernet switch in Raspberry Pi Hat footprint
    • All ports RGMII 10Mbps/100Mbps/1000Mbps ADIN1300 PHYs
    • RJ45 with integrated magnetics
    • 2 SFP cages for SGMII copper/fiber connectivity
  • Host interface hardware strapping switch, choice of
    • S/D/Q SPI interface or
    • Ethernet port through RJ45 connector
  • PHY strapping using surface-mount configuration resistors
    • Default state is auto-neg enabled for all speeds
    • Switch firmware manages PHY operation over MDIO
  • Operates from a single, external 5V to 30V supply
  • LED indicators on GPIO pins
  • IEEE 802.1AS 2020 Time Synchronization
  • Time sensitive networking (TSN) capable
    • Scheduled traffic (IEEE 802.1Qbv)
    • Frame preemption (IEEE 802.1Qbu)
    • Per stream filtering and policing (IEEE 802.1Qci)
    • Frame replication and elimination for reliability (IEEE 802.1CB)
  • Redundancy capabilities
    • High availability seamless redundancy, HSR
    • Parallel redundancy protocol, PRP
    • Media redundancy protocol, MRP
    • MSTP spanning tree protocol
  • NETCONF/YANG configuration using TSN evaluation package or Linux user space driver
  • VLAN table control (remapping, reprioritization)
  • IGMP snooping
  • GPIO/Timer control

产品详情

This user guide describes how to connect one or more EVALADIN3310EBZ evaluation kits and use the provided software to configure the switch and the TSN features to meet the requirements of a TSN network.

Figure 1 in the user guide shows an overview of the evaluation board. The evaluation hardware includes the ADIN3310 switch, three ADIN1300 Ethernet PHYs for standard Ethernet connectivity and optional SFP cages for two ports to support SGMII/Fiber modes of operation. The hardware can be powered from a 5V USB cable and is conveniently designed in a Raspberry Pi hat form factor, therefore can easily connect to a RPI for evaluation purposes.

The switch is a managed switch and needs a Host connected for configuration. The TSN switch evaluation application running on a Windows PC can be used to configure the switch for easy evaluation. Alternatively, user can connect own Host over Ethernet or SPI interface.

Full specifications on the ADIN3310 are available in the ADIN3310 data sheet, which is available from Analog Devices, Inc., and must be consulted with this user guide, evaluation board user guide (UG-2280), and software drive user guide (UG-2287) when using the EVAL-ADIN3310EBZ evaluation board.
EVAL-ADIN3310
ADIN3310 Industrial Ethernet TSN Switch Hardware User Guide

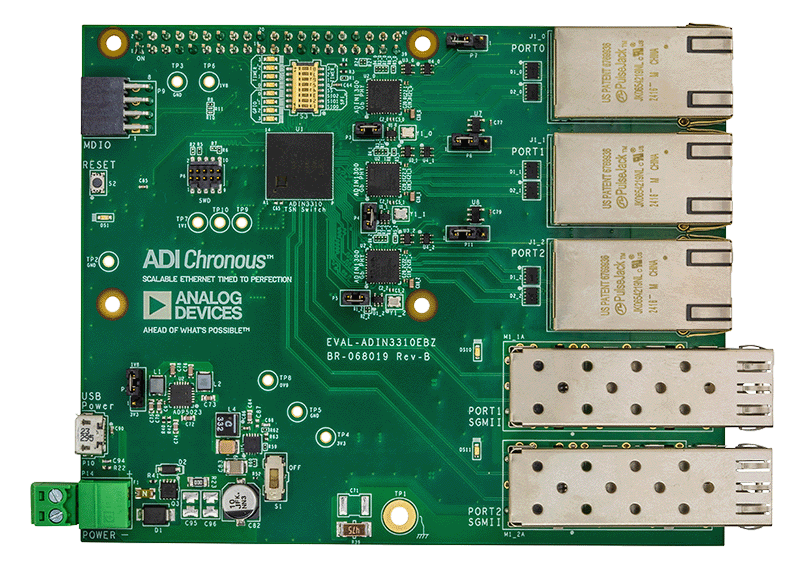

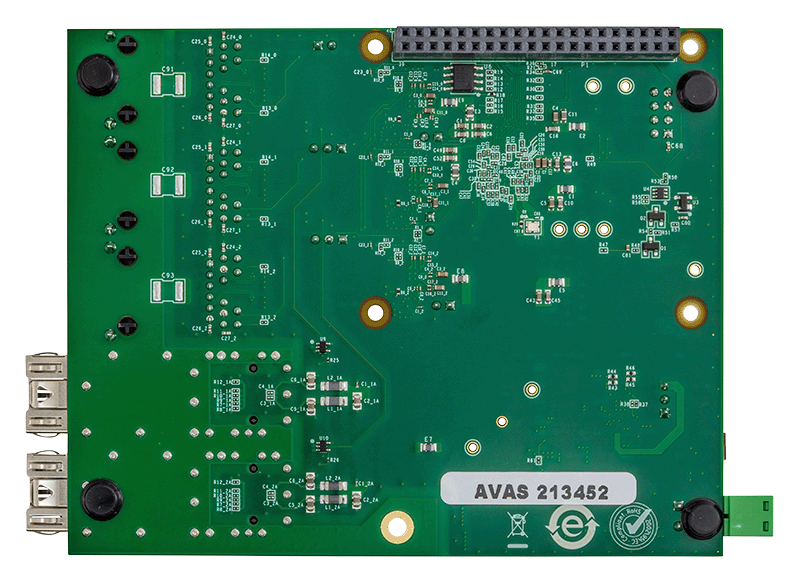

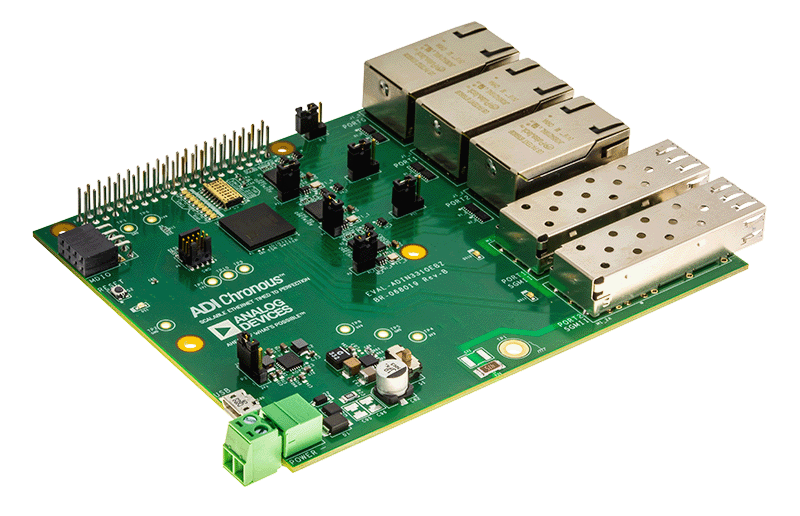

EVAL-ADIN3310 Board Photo Angle View EVAL-ADIN3310 Board Photo Top View EVAL-ADIN3310 Board Photo Bottom View
