MAX17617
推荐新设计使用3V to 80V, 7A, Power-Limiter with OV/Surge, UV, Reverse Polarity and Loss of Ground Protection
- 产品模型
- 2
产品详情
- Robust Protection Reduces System Downtime
- Wide Input Supply Range: +3V to +80V (without Reverse Current Protection)
- Wide Input Supply Range: +3V to +75V (with Reverse Current Protection)
- ±3% Accurate Programmable Current Limit between 3A to 7A across Full Temperature Range
- ±4% Accurate Programmable Current Limit between 2A to 3A across Full Temperature Range
- ±7% Accurate Programmable Current Limit between 0.7A to 2A across Full Temperature Range
- ±6% Accurate Power Limit at 100W, 24V for
- Class 2 Applications
- Input-Voltage Reverse-Polarity Protection (with External nFET)
- Dual Stage Reverse Current Protection (with External nFET) with Fast 100ns Response Time
- Low RON Internal nFET (20mΩ typ)
- Output-Voltage Reverse-Polarity Tolerant
- Loss of Ground Protection
- 200% Short Term Overload capability
- Programmable Overvoltage Surge Protection (MAX17617A)
- Flexible Design to Maximize Reuse and Minimize Requalification
- Adjustable UVLO and OVLO/OVFB Thresholds
- ±2% Accurate Bandwidth Current Monitoring Read-Out, IMON (3A to 7A, up to +85ºC)
- Programmable Startup Inrush Current Limit
- Programmable Current Limit Fault Response: Continuous, Autoretry, and Latch-off Modes
- Logic Level Enable Input (EN)
- Protected External N-type Field Effect Transistor (nFET) Gate Drive
- Open Drain Fault Indicator (FLAG)
- Power Good Output (PGOOD)
- Programmable Output Under Voltage Sense (OUTUV)
- Junction Temperature Monitoring (TJ)
- Thermal Foldback Current Limit
- Reduced Solution Footprint
- 4.5mm x 5.75mm, 23-Pin FCQFN package
- Integrated nFET for Common-Use Protection Requirements
The MAX17617/MAX17617A offers highly versatile and programmable protection boundaries for systems against input voltage faults and output overcurrent faults. In addition, MAX17617/MAX17617A offers a programmable power limiting function. Input-voltage faults (with positive polarity) are protected up to +80V (without Reverse Current Protection)/+75V (with Reverse Current Protection), by an internal nFET featuring low ON-resistance (20mΩ typ). The devices feature a programmable undervoltage-lockout (UVLO) thresholds by using external voltage-dividers. The MAX17617 features a programmable overvoltage-lockout (OVLO) while MAX17617A offers a programmable output voltage clamp function through the OVFB pin that features an output voltage limiting regulation during input transient surge events. Input undervoltage and overvoltage protection (MAX17617)/output voltage clamp function (MAX17617A) can be programmed across the entire 3V to 80V operating range.
Input reverse-polarity protection is realized using an external nFET that is controlled by the devices. The magnitude of reverse-polarity voltage protection is dependent on the operating load-bus voltage (VOUT) and the voltage-blocking capability of the external nFET. For example, for protection down to a -55V input range with VOUT = 30V, an external nFET rated at 85V is needed. The external nFET is also needed for the optional reverse-current protection. When used with a Reverse Protection external nFET (Q1), the devices prevent reverse current flow from load to source by turning off Q1. The reverse current thresholds and forward bias characteristics of the reverse current protection feature are tuned to achieve an ideal diode function suited for OR-ing and Power Multiplexer applications. If reverse polarity protection and reverse-current protection are not needed, SN and GN pins must be connected to IN. The devices are tolerant against accidental output reverse-polarity application due to incorrect wiring across the output terminals.
The current limit of the devices is programmed by connecting a resistor from the SETI pin to GND. The current limit can be programmed from 0.7A to 7.0A. When the current through the devices reaches or exceeds the set current limit, the resistance of the internal nFET is modulated to limit the current. The devices offer three current-limit behavioral modes: Continuous, Auto-retry, and Latch-off modes. In addition, the devices allow programmable startup inrush current limit during startup events, to prevent inrush current from limited power sources flowing into capacitive or negative impedance output loads.
Please see data sheet for the full description
APPLICATIONS
- Input Voltage and Output Overcurrent Protections
- Loss of Ground Protection
- Surge Protection
- UL1310 Class 2 Power Limiter
参考资料
数据手册 1
用户手册 1
视频 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

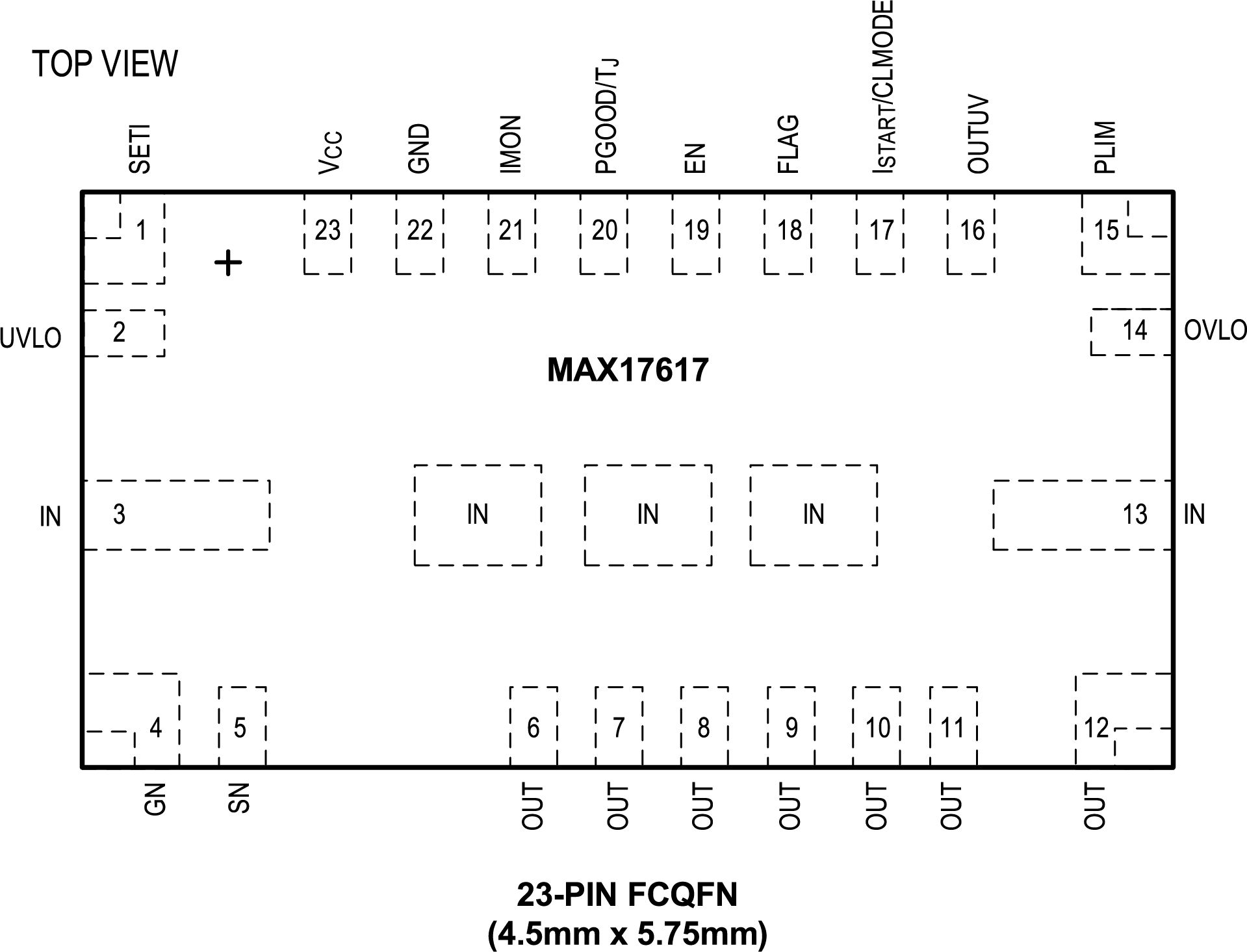

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX17617AFD+ | 23-LFCSP-4.5X5.75X0.75 | ||
| MAX17617AFD+T | 23-LFCSP-4.5X5.75X0.75 |
这是最新版本的数据手册
评估套件

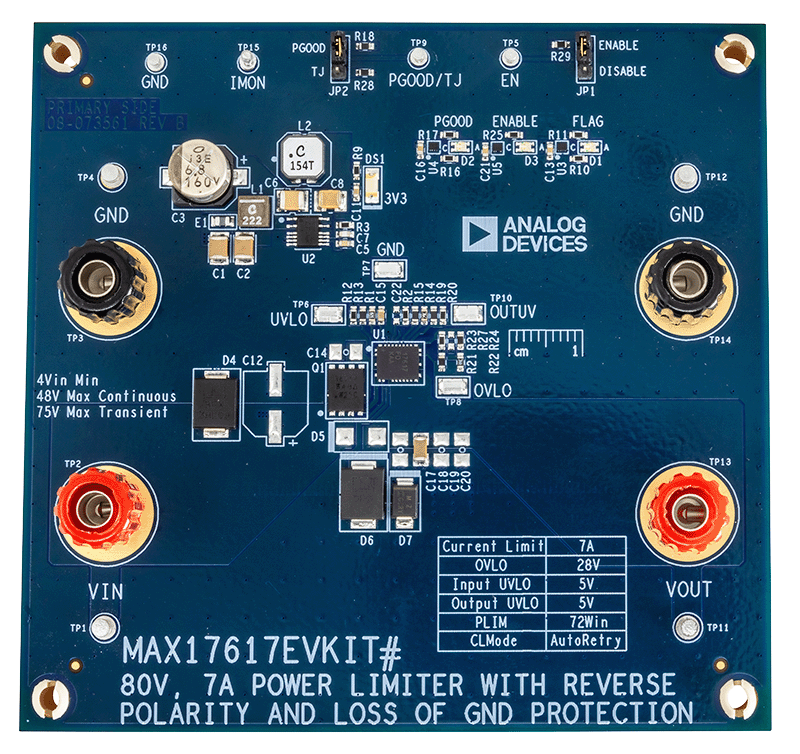

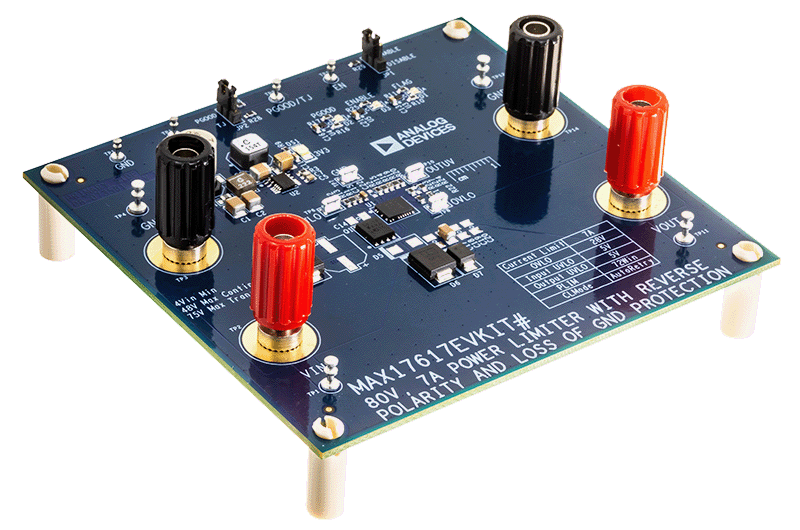

3V to 80V, 7A, Power-Limiter with OV, UV, Reverse Polarity, Loss of Ground Protection, and Power Limit
