HMC6000
製造中止HMC6000 / HMC6000LP711E

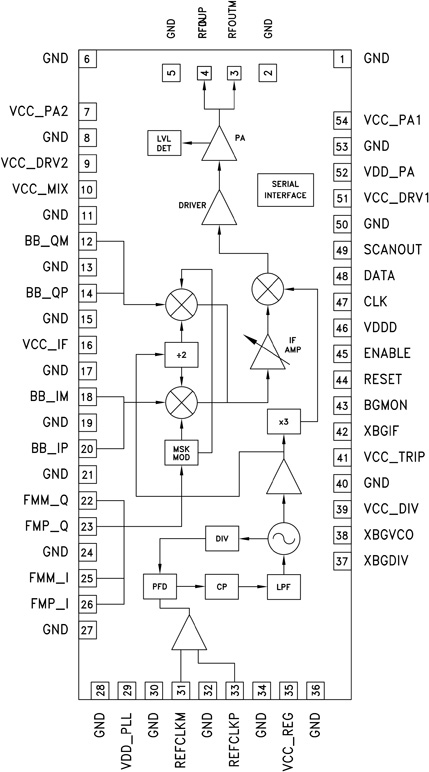

HMC6000: millimeter wave transmitter IC, 57 GHz to 64 GHz

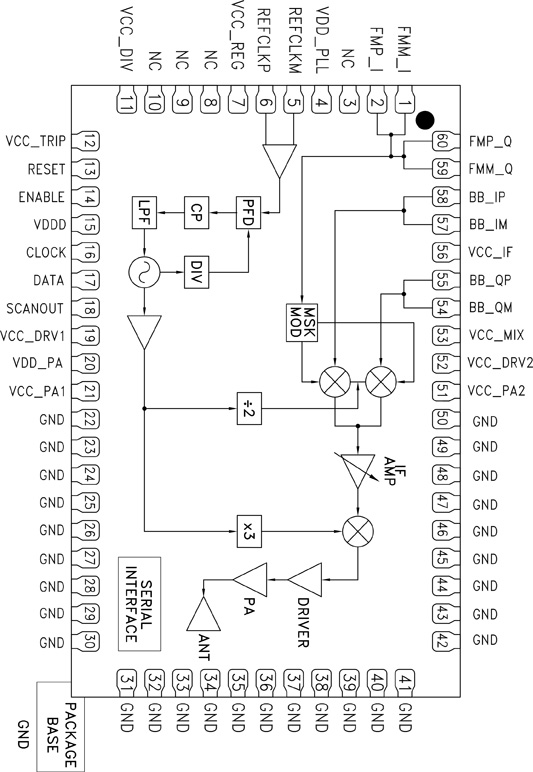

HMC6000LP711E: 60 GHz Tx with integrated antenna
- 製品モデル
- 4
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- Support for IEEE channel plan
- Output power
HMC6000: 12 dBm
HMC6000LP711E: 16 dBm - Max gain: 38 dB
- Gain adjustable range (HMC6000): 17 dB
- Gain control range (HMC6000LP711E): 17 dB
- Integrated frequency synthesizer
- Integrated image reject filter
- Programmable intermediate frequency (IF) gain block
- Universal analog I/Q baseband interface
- 3-wire serial digital interface
- Die size (HMC6000): 4.082 mm × 1.814 mm
- EIRP (HMC6000LP711E): 23.5 dBm
- Antenna gain (HMC6000LP711E): 7.5 dBi
- 7 mm × 11 mm quad flat no-leads (QFN) package: 77 mm2 (HMC6000LP711E)
The HMC6000 devices are complete millimeter wave transmitters available in a chip (HMC6000) and an IC and low profile antenna integrated in a plastic 7 mm × 11 mm surface mount package (HMC6000LP711E). The HMC6000 devices operate from 57 GHz to 64 GHz with 1.8 GHz of modulation bandwidth. The surface mount package provides 23.5 dBm of EIRP over this range. An integrated synthesizer provides tuning in 500 MHz or 540 MHz step sizes depending on the choice of external reference clock. Support for a wide variety of modulation formats is provided through a universal analog baseband I/Q interface. The HMC6000 supports all single carrier WiGig modulations and optionally supports dedicated FSK/MSK modulation formats for lower cost and lower power serial data links without the need for high speed data converters. A differential output provides up to 12 dBm linear output power into a 100 Ω load. Together with the HMC6001 devices, a complete transmit/receive chipset is provided for multi-Gbps operation in the unlicensed 60 GHz ISM band.
Applications
- Wireless Gigabit Alliance (WiGig) single carrier modulations
- 60 GHz industrial, scientific, and medical (ISM) band data transmitter
- Multi-Gbps data communications
- High definition video transmission
- Radio frequency identification (RFID)
ドキュメント
技術記事 1
製造中止品のデータシート 2
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC6000-SX | CHIPS OR DIE | ||
| HMC6000LP711E | LFCSP:LEADFRM CHIP SCALE | ||
| HMC6000LP711ETR | LFCSP:LEADFRM CHIP SCALE | ||
| HMC6000T6 | CHIPS OR DIE |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
10 29, 2015 - 15_0120 Discontinuance of Select Standard Hittite Microwave Products (HMC) from Analog Devices |
||
| HMC6000-SX | 製造中止 | |
| HMC6000LP711ETR | 製造中止 | |
| HMC6000T6 | 製造中止 | |
|
10 29, 2015 - 15_0038 Discontinuance of Select Standard Hittite Microwave Products (HMC) from Analog Devices |
||
| HMC6000LP711E | 製造中止 | |
これは最新改訂バージョンのデータシートです。
