HMC561LP3
製造中x2 Active Multiplier SMT, 8 - 21 GHz Fout
- 製品モデル
- 2
- 1Ku当たりの価格
- 価格は未定
Viewing:
製品の詳細
- High Output Power: +14 dBm
- Low Input Power Drive: 0 to +6 dBm
- Fo Isolation: 15 dBc @ Fout= 16 GHz
- 100 KHz SSB Phase Noise: -139 dBc/Hz
- RoHS Compliant 3×3 mm SMT Package
The HMC561LP3(E) is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology in a leadless RoHS compliant SMT package. When driven by a +5 dBm signal, the multiplier provides +14 dBm typical output power from 8 to 21 GHz and the Fo and 3Fo isolations are 15 dBc at 16 GHz. The HMC561LP3(E) is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches.
The low additive SSB Phase Noise of -139 dBc/Hz at 100 kHz offset helps maintain good system noise performance. The RoHS packaged HMC561LP3(E) eliminates the need for wire bonding, and allows the use of surface mount manufacturing techniques.
APPLICATIONS
- Clock Generation Applications:
SONET OC-192 & SDH STM-64 - Point-to-Point & VSAT Radios
- Test Instrumentation
- Military & Space
ドキュメント
データシート 1
品質関連資料 4
テープ＆リール仕様 1
製品選択ガイド 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC561LP3E | 16-Lead QFN (3mm x 3mm w/ EP) | ||
| HMC561LP3ETR | 16-Lead QFN (3mm x 3mm w/ EP) |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
3 29, 2023 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products |
||
| HMC561LP3E | 製造中 | |
| HMC561LP3ETR | 製造中 | |
これは最新改訂バージョンのデータシートです。
ツールおよびシミュレーション
Sパラメータ 1
評価用キット

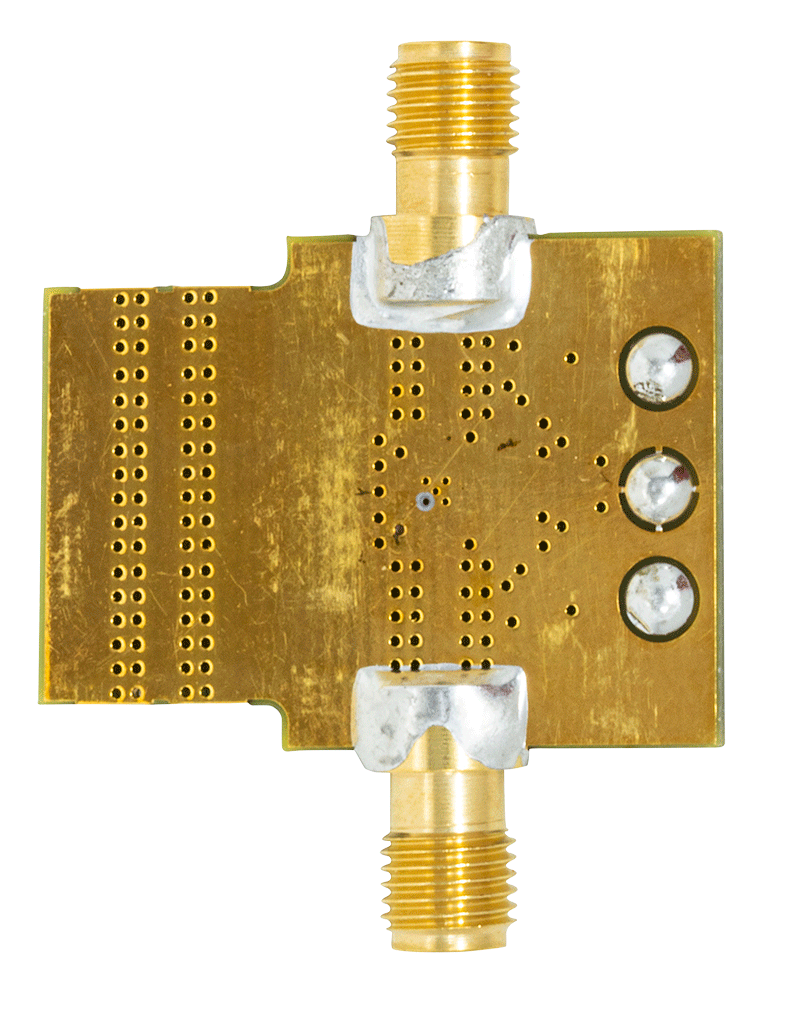

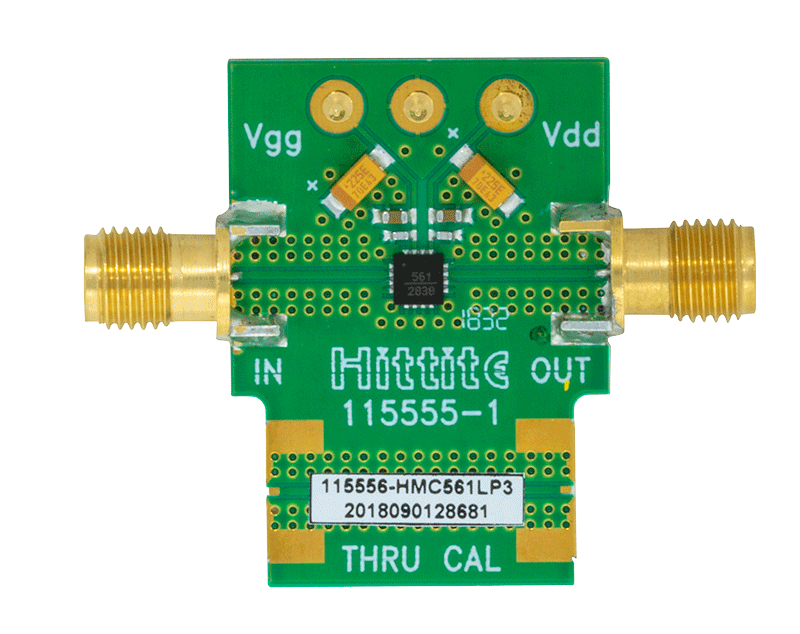

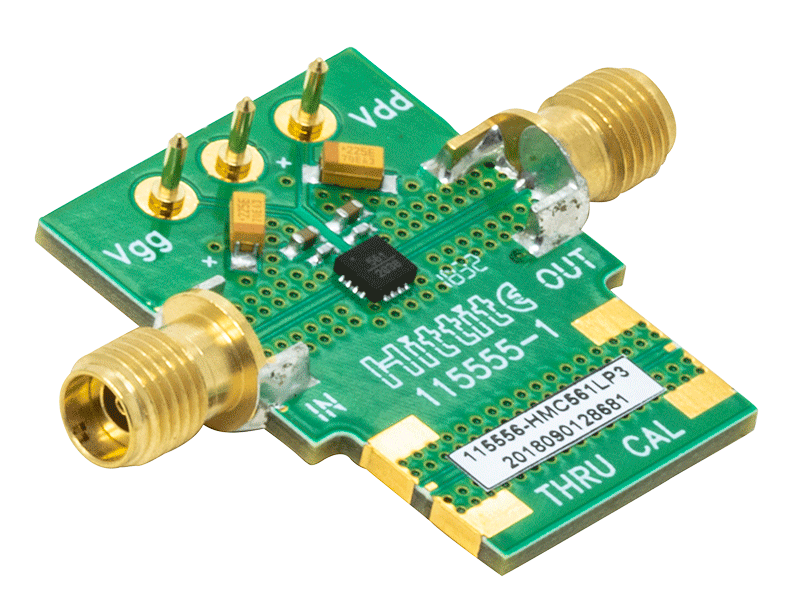

HMC561LP3 Evaluation Board
