ADXL320
新規設計には非推奨Small and Thin, ±5 g Accelerometer
- 製品モデル
- 3
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- Small and thin 4 mm × 4 mm × 1.45 mm LFCSP package
- 2 mg resolution at 60 √Hz
- Wide supply voltage range: 2.4 V to 5.25 V
- Low power: 350 µA at Vs = 2.4 V (typ)
- Good zero gbias stability
- Good sensitivity accuracy
- X-axis and Y-axis aligned to within 0.1° (typ)
- BW adjustment with a single capacitor
- Single-supply operation
- 10,000 g shock survival
- Compatible with Sn/Pb and Pb-free solder processes

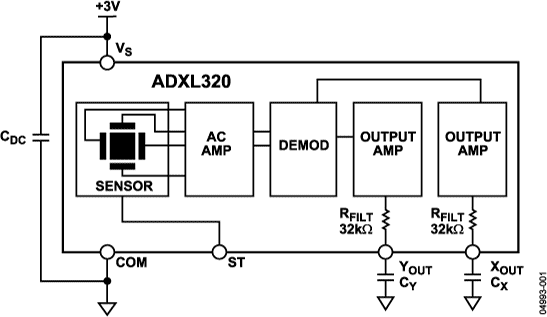

The ADXL320 is a low cost, low power, complete dual-axis accelerometer with signal conditioned voltage outputs, which is all on a single monolithic IC. The product measures acceleration with a full-scale range of ±5g (typical). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity)
The ADXL320’s typical noise floor is 250 µg/√Hz, allowing signals below 2 mg to be resolved in tilt-sensing applications using narrow bandwidths (<60 Hz).
The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz may be selected to suit the application.
The ADXL320 is available in a very thin 4 mm × 4 mm × 1.45 mm, 16-lead, plastic LFCSP
BENEFITS
- Two axis accelerometer in small (4mm x 4mm x 1.45mm) LFCSP package allows adding inertial sensing in space-critical handheld devices
- Low power and wide supply voltage range (2.4V to 5.25V) for battery powered applications
- Innovative circuit design provides sensitivity, zero-g bias stability over temperature - eliminates need for external compensation
APPLICATIONS
- Cost-sensitive motion- and tilt-sensing applications
- Smart hand-held devices
- Mobile phones
- Sports and health-related devices
- PC security and PC peripherals
ドキュメント
データシート 1
アプリケーション・ノート 2
評価用設計ファイル 1
よく聞かれる質問 1
Analog Dialogue 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| ADXL320JCP | 16-Lead LFCSP (4mm x 4mm) | ||
| ADXL320JCP-REEL | 16-Lead LFCSP (4mm x 4mm w/ EP) | ||
| ADXL320JCP-REEL7 | 16-Lead LFCSP (4mm x 4mm w/ EP) |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
8 22, 2013 - 13_0021 Qualification of Second Source Supplier for Seal Glass on Capped MEMS Devices |
||
| ADXL320JCP | ||
| ADXL320JCP-REEL | ||
| ADXL320JCP-REEL7 | ||
|
7 22, 2009 - 09_0031 ADXL320, ADXL330, ADXL340 Families Capping and Fab Process Transfer |
||
| ADXL320JCP | ||
| ADXL320JCP-REEL | ||
|
6 22, 2009 - 09_0081 ADXL320 and ADXL330 Families change from Tubes to Trays |
||
| ADXL320JCP | ||
これは最新改訂バージョンのデータシートです。
ハードウェア・エコシステム
| 製品モデル | 製品ライフサイクル | 詳細 |
|---|---|---|
| ADXL325 | 製造中 | 加速度センサー、3軸、フルスケール±5g |
ツールおよびシミュレーション
ADXL320 Simulink Model 4
評価用キット
ADXL320 Evaluation Board
