AD9548

新規設計に推奨

クロック・ジェネレータ／シンクロナイザー、クワッド／オクタル入力ネットワーク

データシート (Rev. H)

製品セレクション・テーブル

Viewing:

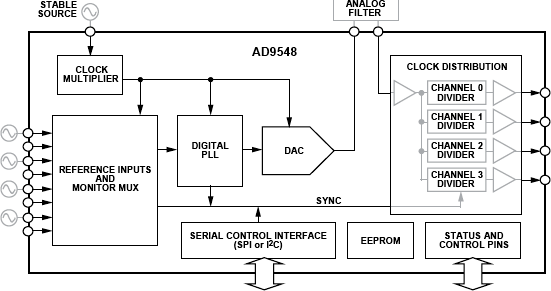

製品の詳細

ホールドオーバー・モードでStratum2の安定化をサポート
位相構築によるリファレンス・スイッチオーバーのサポート
ヒットレス・リファレンスのスイッチオーバーをサポート
自動／手動のホールドオーバーとリファレンス・スイッチオーバー
シングルの差動入力あるいは2つの独立したシングルエンド入力として、各ペア構成を伴った4ペアのリファレンス入力ピン

1Hz～750MHzの入力リファレンス周波数
リファレンスの検証と周波数モニタリング（1ppm）
プログラマブル入力リファレンスのスイッチオーバー・プライオリティ

ドキュメント

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

デバイス・ドライバ 1

AD9548 Github Linux Driver Source Code 新規

ツールおよびシミュレーション

AD9548 IBIS Models 1

AD9548 (All Models/All Speed Grades)

評価用キット

FPGA Mezzanine Card for Wireless Communications

今すぐ購入詳細を表示

機能と利点

Includes schematics, layout, BOM, Gerber files, HDL, Linux^® drivers, IIO Oscilloscope, VisualANALOG
FMC-compatible form factor
Powered from FMC connector
Provides one channel of ADC and one channel of DAC with full synchronization capabilities

製品詳細

This board is no longer available for ordering.

The AD-FMCOMMS1-EBZ high-speed analog module is designed to showcase the latest generation high-speed data converters. The AD-FMCOMMS1-EBZ provides the analog front-end for a wide range of compute-intensive FPGA-based radio applications.

The AD-FMCOMMS1-EBZ is an analog front end hardware platform that addresses a broad range of research, academic, industrial and defense applications. The AD-FMCOMMS1-EBZ enables RF applications from 400MHz to 4 GHz. The module is customizable to a wide range of frequencies by software without any hardware changes, providing options for GPS or IEEE 1588 Synchronization, and MIMO configurations.

When combined with the Xilinx ZYNQ^® Software-Defined Radio Kit, AD-FMCOMMS1-EBZ enables a variety of wireless communications functions at the physical layer, from baseband to RF. With up to 4 GB of flash storage space, 512 MB of RAM, Gigabit Ethernet interface (depending on the base platform) and a Linux image built specifically for the AD-FMCOMMS1-EBZ, you can get everything you need for a easy out of the box experience. The platform offers enough flexibility for many applications, and supports streaming data, and standard web interfaces to analyze transmitted RF data.

Applications

Electronic test and measurement equipment
General-purpose software radios
Radar systems
Ultra wideband satellite receivers
Point to point communication systems

資料

AD-FMCOMMS1-EBZ User Guide

ソフトウェア

IIO Oscilloscope Application

AD-FMCOMMS1-EBZ-Software

AD9548 Evaluation Board

今すぐ購入詳細を表示

機能と利点

Simple power connection using 6 V wall adapter and onboard switching and LDO voltage regulators
Regulators easily bypassed for power measurements
8 ac-coupled SMA connectors for output
SMA connectors for
2 differential or 4 single-ended reference input
System clock input
On-board provisions for OCXO, crystal oscillator, or crystal
USB connection to PC
32-bit or 64-bit Windows-based evaluation software with simple graphical user interface
On-board PLL loop filter
Easy access to digital I/O and diagnostic signals via I/O header
Status LEDs for diagnostic signals

製品詳細

The AD9548 is a very low noise DDS-based digital PLL clock synthesizer with up to eight reference inputs and up to eight outputs. The AD9548 features reference clock validation, automatic holdover, and hitless reference clock switching. The AD9548 is also capable of accepting a 1 pulse per second (pps) reference input clock. The AD9548 Revision E evaluation board is a compact, easy-to use platform for evaluating all features of the AD9548.
