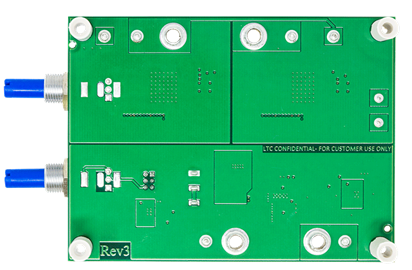

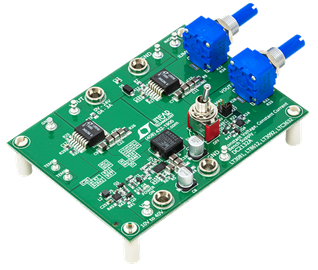

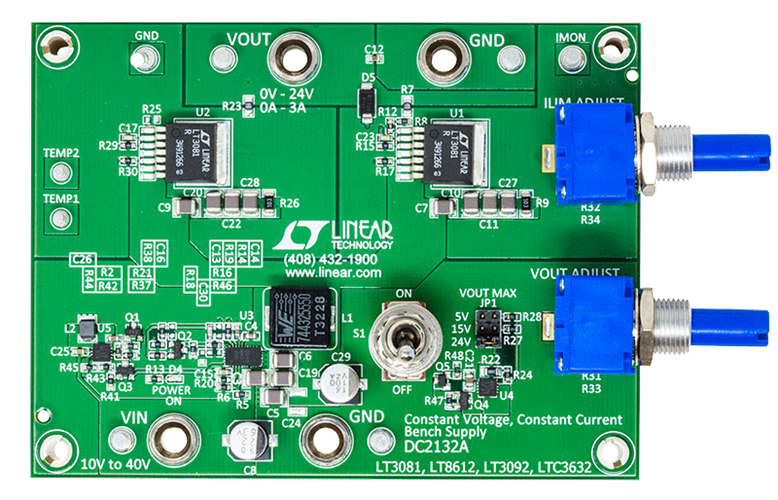

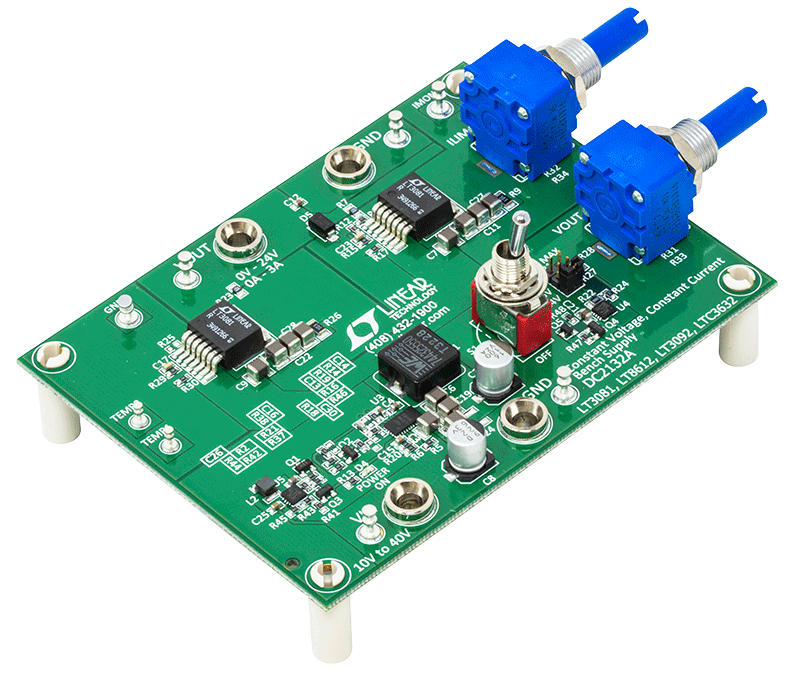

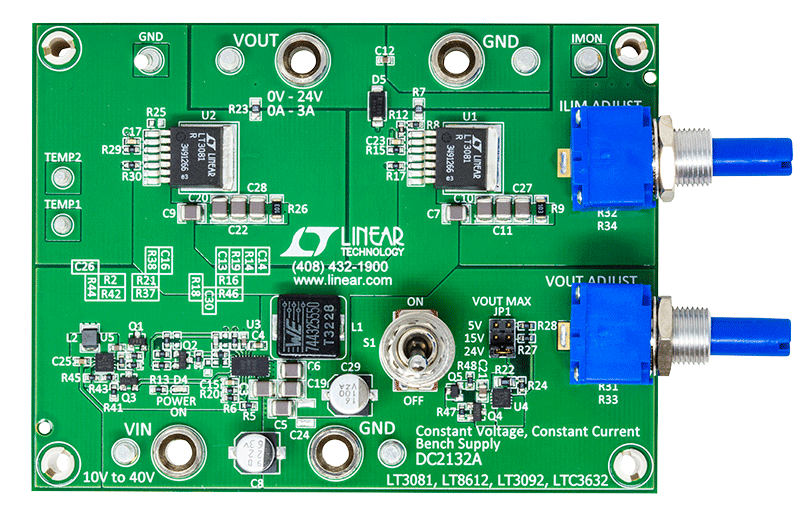

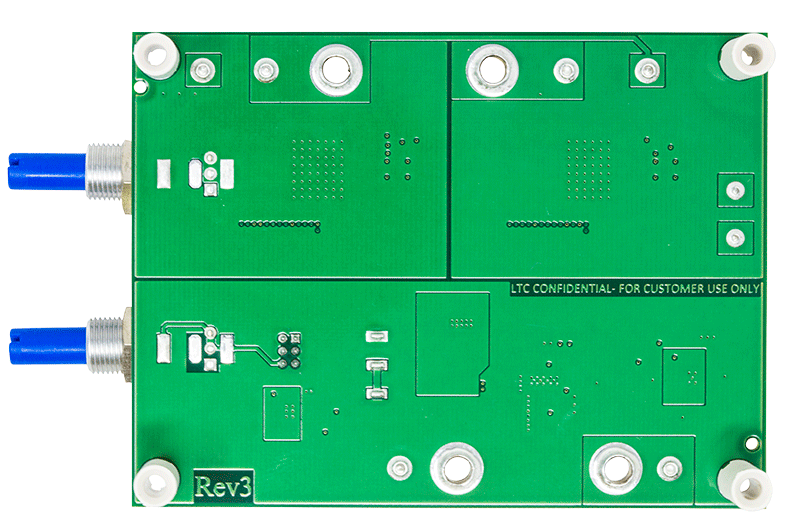

DC2132A
24V 3A Constant Voltage, Constant Current Bench Supply Featuring LT3081, LT8612, LT3092
Top
Overview
Product Details
DC2132A is a 24V 3A constant voltage, constant current bench supply. It regulates any output voltage from 0V to 24V and any output current from 0A to 3A. It runs from 10V to 40V input although the output voltage should remain 5V or more below the input voltage.
Markets and Technologies
-
- Noise, Vibration, and Harshness (NVH) Automotive Solutions
- Impedance Measurement and Analysis Solutions
- Parametric Measurement Solutions
- Communications Test Equipment Solutions
- Radio Frequency (RF) Signal and Vector Network Analyzer Solutions
- DC Sources and Power Supply Solutions
- Precision Measurement Solutions
Applicable Parts
Documentation & Resources
-

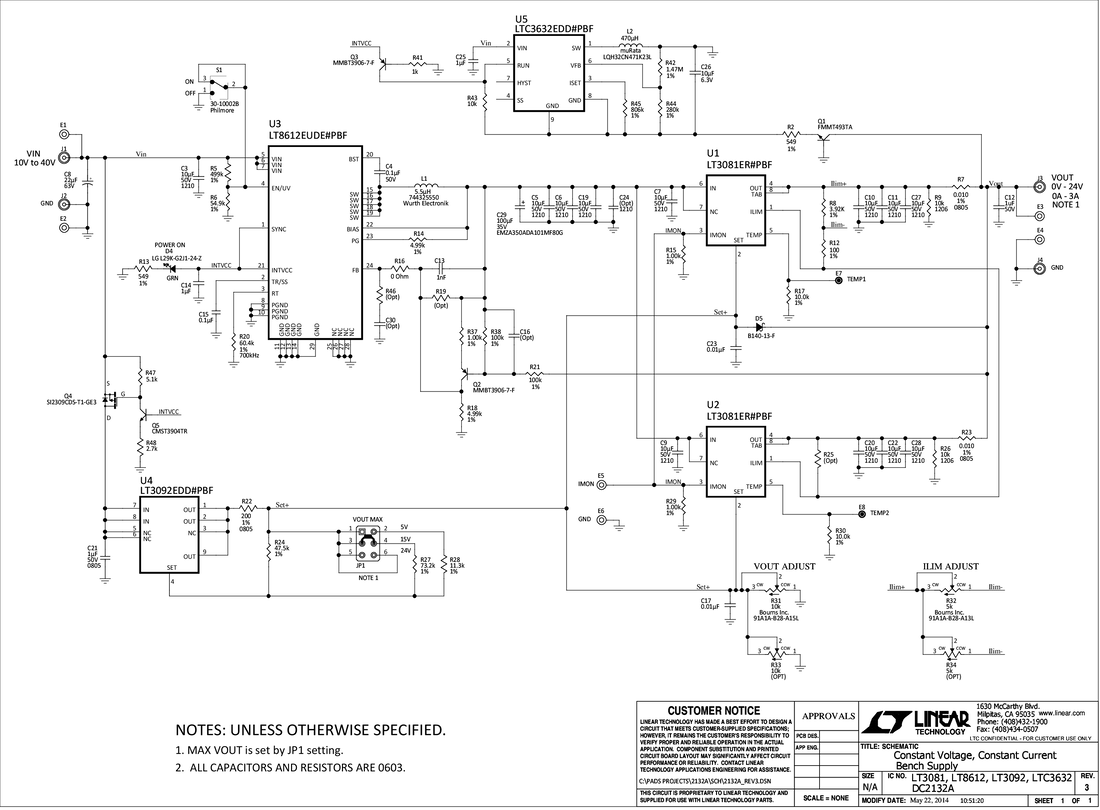

DC2132A - Schematic5/22/2014PDF91K
-
DC2132A - Demo Manual5/22/2014PDF546K
-
DC2132A - Design Files5/22/2014ZIP3M
