MAX7301
PRODUCTION4-Wire-Interfaced, 2.5V to 5.5V, 20-Port and 28-Port I/O Expander
- Part Models
- 6
- 1ku List Price
- Starting From $4.83
Part Details
- Industry-Standard 4-Wire Interface Simplifies Expansion of I/O Ports to Up to 28 I/Os Independent of Microprocessor Architecture
- High-Speed, 26MHz, SPI-/QSPI™-/MICROWIRE®-Compatible Serial Interface
- 2.25V to 5.5V Operation
- 20 or 28 I/O Ports Configurable as Push-Pull Logic Output, Schmitt Logic Input or Schmitt Logic Input with Internal Pullup
- Logic Transition Detection for Seven I/O Ports
- Low Power Consumption Reduces Power-Supply Requirements
- 11µA (max) Shutdown Current

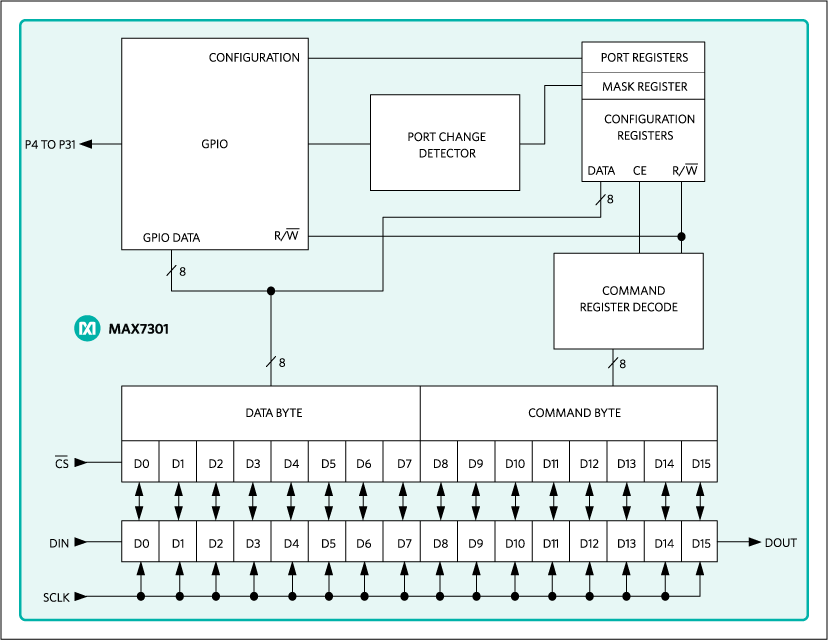

The MAX7301 compact, serial-interfaced I/O expander (or general-purpose I/O (GPIO) peripheral) provides microprocessors with up to 28 ports. Each port is individually user configurable to either a logic input or logic output.
Each port can be configured either as a push-pull logic output capable of sinking 10mA and sourcing 4.5mA, or a Schmitt logic input with optional internal pullup. Seven ports feature configurable transition detection logic, which generates an interrupt upon change of port logic level. The MAX7301 is controlled through an SPI-compatible 4-wire serial interface.
The MAX7301AAX and MAX7301ATL have 28 ports and are available in 36-pin SSOP and 40-pin TQFN packages, respectively. The MAX7301AAI has 20 ports and is available in a 28-pin SSOP package.
For a 2-wire I²C-interfaced version, refer to the MAX7300 data sheet.
For a pin-compatible port expander with additional 24mA constant-current LED drive capability, refer to the MAX6957 data sheet.
Applications
- Gaming Machines
- Industrial Controllers
- System Monitoring
- White Goods
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Technical Articles 3
Device Drivers 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX7301AAI+ | 28-SSOP-5.3_MM | ||
| MAX7301AAI+T | 28-SSOP-5.3_MM | ||
| MAX7301AAX+ | 36-SSOP_W-7.62_MM | ||
| MAX7301AAX+T | 36-SSOP_W-7.62_MM | ||
| MAX7301ATL+ | 40-LFCSP-6X6X0.75 | ||
| MAX7301ATL+T | 40-LFCSP-6X6X0.75 |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Mar 1, 2016 - 1618 ASSEMBLY |
||
| MAX7301AAX+ | PRODUCTION | |
| MAX7301AAX+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
