MAX14900E

PRODUCTION

Octal, High-Speed, Industrial, High-Side Switch

Industry's Lowest Latency and Fastest 24V Driver, Capable of 100kHz Switching Rate, Improves Factory Throughput

Data Sheet (Rev. 4) Product Selection Table
Part Models
4
1ku List Price
Starting From $8.73
Viewing:

Part Details

  • Low Power for High-Density Modules
    • 3mA (max) Total Supply Current
    • 165mΩ (max) High-Side RON at +125°C
  • Fast Switching Ideal for Accurate, High-Speed Control Systems
    • 2μs Propagation Delays (High-Side Mode)
    • 0.8μs Propagation Delays (Push-Pull Mode)
    • 100kHz (max) Push-Pull Mode Switching Rate
  • Extensive Fault Feedback Eases Maintenance and Reduces Installation Time
    • Global and Per-Channel Diagnostics
    • Open Load/Wire Detection
    • Thermal Shutdown Fault Indication
    • Output Logic State Feedback
    • Undervoltage Lockout
  • Small Packages with Serial Interface Allows Making High-Density Modules
    • Daisy-Chainable SPI Minimizes Isolation Cost
    • 7mm x 7mm, 48-Pin QFN and TQFN Packages
MAX14900E
Octal, High-Speed, Industrial, High-Side Switch

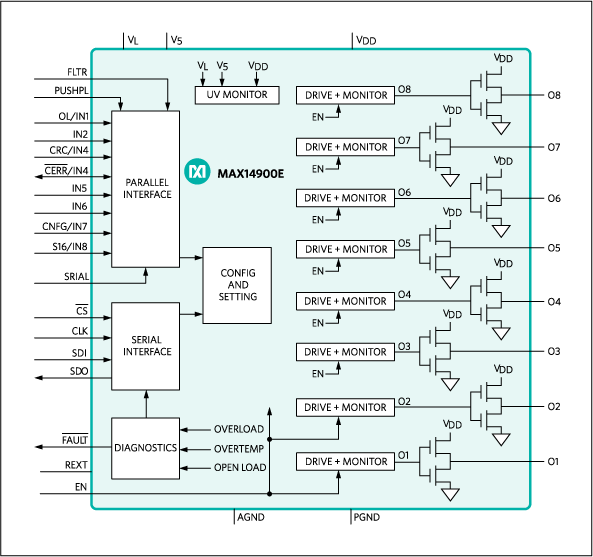

MAX14900E: Functional Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

Application Note 1

Design Note 2

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Digital I/O 1
MAX31913
PRODUCTION Industrial, Octal, Digital Input Translator/Serializer
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

IBIS Model 2

Evaluation Kits

MAX14900DEVBRD

Evaluation Kit for MAX14900E

Buy Now View Details

Features and Benefits

  • Stand-Alone Operation in Parallel Mode
  • SPI-Controlled for Serial Mode/Monitored Parallel Mode
  • Built-In 5V Regulator
  • Surge Compliance Clamp Diodes Included
  • Fully Assembled and Tested

Product Details

The MAX14900E octal high-speed, industrial, high-side switch evaluation kit (EV kit) is a fully assembled and tested surface-mount printed circuit board (PCB) that demonstrates the capabilities of the MAX14900E IC to drive industrial-grade signals.

This EV kit demonstrates operation in all MAX14900E modes. In parallel mode, jumpers allow for arbitrary configuration. In serial mode, or parallel mode with serial monitoring, attach a control circuit to the appropriate test points, as detailed below.

Applications

  • High-Density Digital Output Modules
  • Motor Controllers
  • Programmable Logic Controllers
  • PWM/PPO Control
MAX14900DEVBRD
Evaluation Kit for MAX14900E
