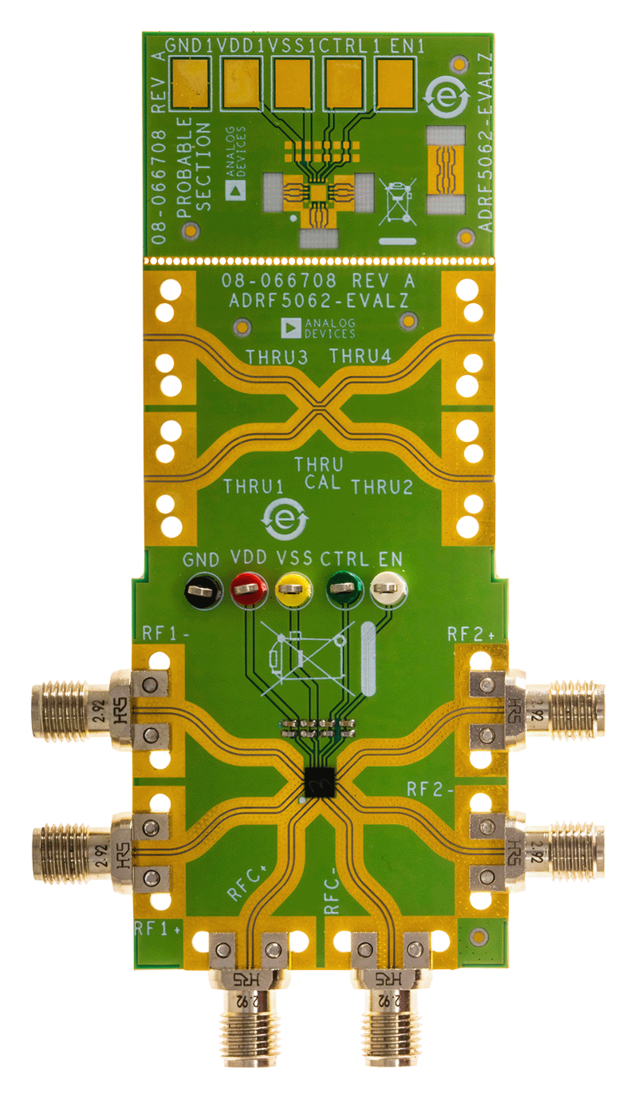

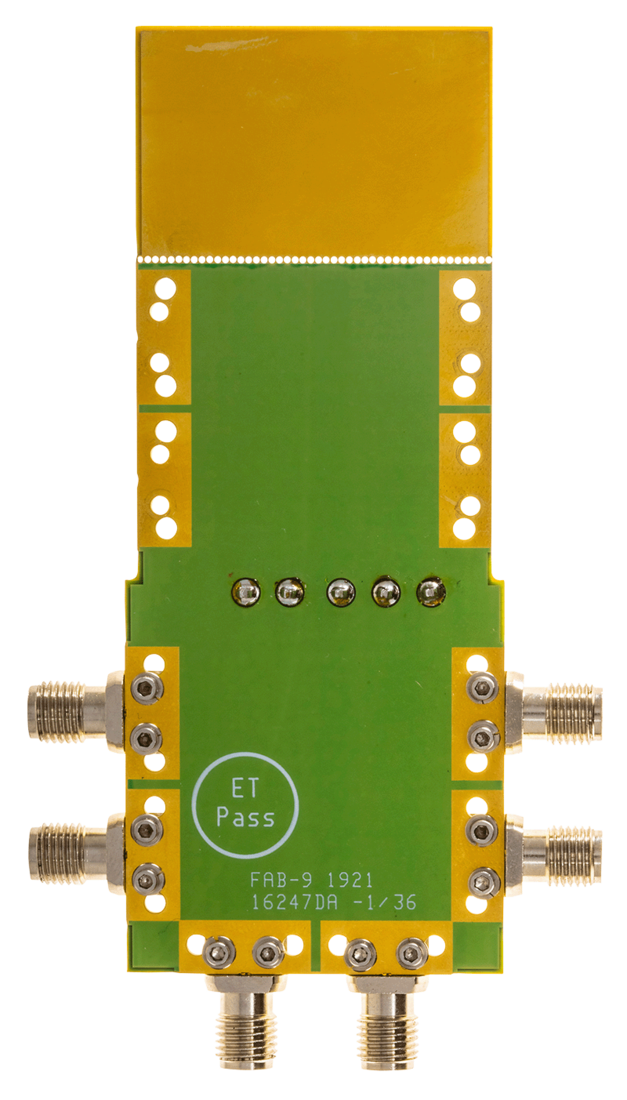

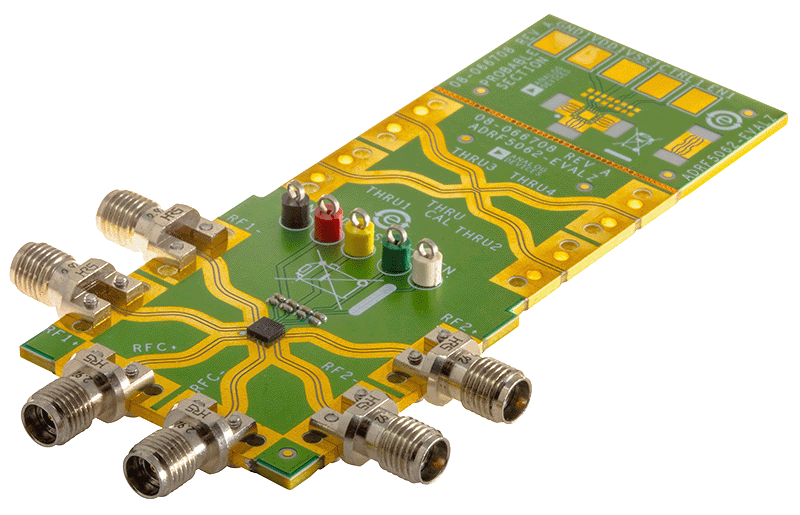

ADRF5062

The ADRF5062 is a silicon, nonreflective, differential, SPDT switch.

The ADRF5062 operates from 100 MHz to 13 GHz with insertion loss of lower than 1.0 dB and isolation of higher than 40 dB. The ADRF5062 has a RF input power handling capability of differential 33 dBm for through paths, differential 30 dBm for terminated paths and differential 27 dBm hot switching at the RF common port.

The ADRF5062 can operate with dual-supply voltages of ±3.3 V or a single-supply voltage of +3.3V when VSS is connected to GND. The ADRF5062 employs complementary metal-oxide semiconductor (CMOS)-compatible and low voltage transistor logic (LVTTL)-compatible controls. The ADRF5062 has an enable control to feature all off states.

The ADRF5062 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (V_SS) is connected to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated.

The ADRF5062 is pin-compatible with the ADRF5063, low-frequency cutoff version, which operates from 9 kHz to 13 GHz.

The ADRF5062 comes in a 20-terminal, 3.0 mm × 3.0 mm LGA package and can operate from −40°C to +105°C.

APPLICATIONS

• Test instrumentation
• Data converter interfaces
• High data rate interfaces
