ADF7902

PRODUCTION

ISM Band FSK Receiver IC

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Part Details

Single-chip, low power UHF receiver
Companion receiver to ADF7901 transmitter
Frequency range: 369.5 MHz to 395.9 MHz
Eight RF channels selectable with three digital inputs

Modulation parameters supported
FSK demodulation
2 kbps data rate
34.8 kHz frequency deviation
5.0 V supply voltage

Part Models: 3
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

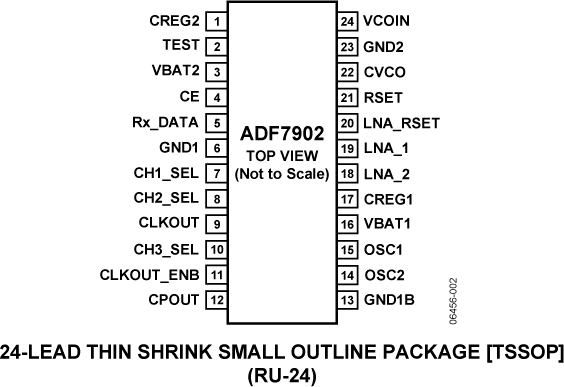

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF7902BRUZ	24-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF7902BRUZ-RL	24-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF7902BRUZ-RL7	24-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
ADF7902BRUZ	Obsolete
ADF7902BRUZ-RL	Obsolete
ADF7902BRUZ-RL7	Obsolete
Jan 29, 2014 - 14_0014 ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
		PDN14_0014_Form Material_Report
ADF7902BRUZ	Obsolete
ADF7902BRUZ-RL	Obsolete
ADF7902BRUZ-RL7	Obsolete

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 2

Tools & Simulations

ADIsimSRD Design Studio

Analog Devices ADIsimSRD Design Studio is a very powerful tool allowing real-time simulation and optimization of many of the parameters in a typical wireless system using the ADF7xxx family of transceivers and transmitters.

Open Tool
