AD7982

PRODUCTION

18-Bit, 1 MSPS PulSAR ADC in MSOP/LFCSP

Data Sheet (Rev. E) Product Selection Table

Part Models: 4
1ku List Price: Starting From $20.07

Viewing:

Part Details

High performance
- True differential analog input range: ±V_REF
  - 0 V to V_REF with V_REF between 2.5 V to 5 V

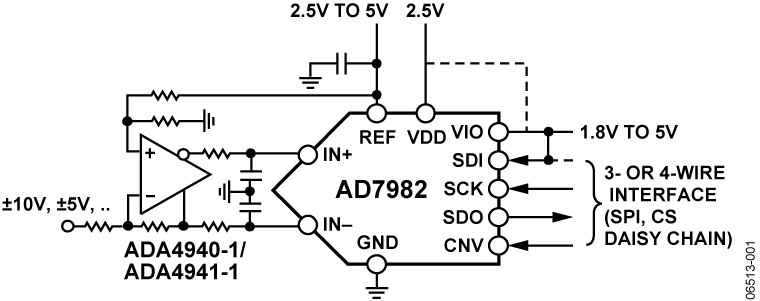

  - Easy to drive with the ADA4941-1 or ADA4940-1
- Throughput: 1 MSPS
  - Zero latency architecture
- 18-bit resolution with no missing codes
- INL: ±1 LSB typical, ±2 LSB maximum
- Dynamic range: 99 dB, V_REF = 5 V
- SNR: 98 dB at f_IN = 1 kHz, V_REF = 5 V
- THD: −119 dB at f_IN = 1 kHz, V_REF = 5 V
- SINAD: 97 dB at f_IN = 1 kHz, V_REF = 5 V

Low power dissipation
- Single-supply 2.5 V operation with 1.8 V, 2.5 V, 3 V, and 5 V logic interface
- 4 mW at 1 MSPS (VDD only)
- 7 mW at 1 MSPS (total)
- 70 μW at 10 kSPS
Proprietary serial interface
- SPI-/QSPI™/ MICROWIRE™-/DSP-compatible¹
Ability to daisy-chain multiple ADCs and busy indicator

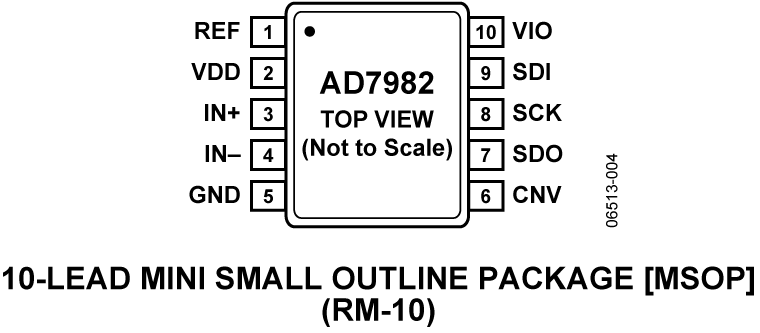

10-lead MSOP and 3 mm × 3 mm 10-lead LFCSP
Wide operating temperature range: −40°C to +85°C

Part Models: 4
1ku List Price: Starting From $20.07

Documentation

Tested Product Combinations 1

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD7982BCPZ-RL	10-Lead LFCSP (3mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD7982BCPZ-RL7	10-Lead LFCSP (3mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD7982BRMZ	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD7982BRMZRL7	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 8, 2014 - 14_0071 Addition of STATS ChipPAC China as an Alternate Assembly Site for Select 3x3mm LFCSP Products
		PCN14_0071_Form Material_Report Qualification Results Summary
AD7982BCPZ-RL	PRODUCTION
AD7982BCPZ-RL7	PRODUCTION
Feb 21, 2010 - 10_0042 Metal and Via mask Changes on AD7980, AD7982, AD7983, AD7984, AD7987, AD71062 and AD71092
		PCN10_0042_Form Material_Report Qualification Plan Summary
AD7982BCPZ-RL	PRODUCTION
AD7982BCPZ-RL7	PRODUCTION
AD7982BRMZ	PRODUCTION
AD7982BRMZRL7	PRODUCTION
Mar 8, 2016 - 15_0176 Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
		PCN15_0176_Form Material_Report Detailed Change Description Qualification Results Summary Qualification Results Summary
AD7982BRMZ	PRODUCTION
AD7982BRMZRL7	PRODUCTION
May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD7982BRMZ	PRODUCTION
AD7982BRMZRL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

FPGA/HDL 2

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Fully Differential Amplifiers 1
AD8476	PRODUCTION	Low Power, Unity Gain Fully Differential Amplifier & ADC Driver
Low Input Bias Current Op Amps (≤100 pA) 2
ADA4627-1	PRODUCTION	36 V, 19 MHz, Low Noise, Low Bias Current, JFET Op Amp
ADA4610-2	RECOMMENDED FOR NEW DESIGNS	Low Noise, Precision, Rail-to-Rail Output, JFET Dual Op Amp
Low Noise Op Amps (≤ 10nV/√Hz) 1
ADA4897-1	RECOMMENDED FOR NEW DESIGNS	1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers

Low Power Op Amps (≤ 1mA/amp) 1
AD8031	PRODUCTION	2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) 3
ADA4841-1	PRODUCTION	Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier
AD8655	PRODUCTION	Low Noise, Precision CMOS Amplifier
AD8021	PRODUCTION	Low Noise, High Speed Amplifier for 16-Bit Systems
Series Voltage References 3
ADR435	PRODUCTION	Ultralow Noise XFET^® Voltage References with Current Sink and Source Capability
ADR4550	PRODUCTION	Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference
ADR445	PRODUCTION	Ultralow Noise, LDO XFET^® 5.0V Voltage Reference w/Current Sink and Source
Single-Ended to Differential Amplifiers 2
ADA4940-1	PRODUCTION	Ultralow Power, Low Distortion ADC Driver
ADA4941-1	PRODUCTION	Single-Supply, Differential 18-Bit ADC Driver
Standard Digital Isolators 4
ADUM1401	PRODUCTION	Quad-Channel Digital Isolator (3/1 Channel Directionality)
ADUM3401	PRODUCTION	Quad-Channel, Digital Isolator, Enhanced System-Level ESD Reliability
ADUM3481	PRODUCTION	Small, 3.75 kV RMS Quad Digital Isolators (3/1 Channel Directionality)
ADUM4401	PRODUCTION	5 kV RMS Quad-Channel Digital Isolators

Parts	Product Life Cycle	Description
AD4003	PRODUCTION	18-Bit, 2 MSPS/1 MSPS/500 kSPS, Easy Drive, Differential SAR ADCs
AD4020	RECOMMENDED FOR NEW DESIGNS	20-Bit, 1.8 MSPS/1 MSPS/500 kSPS, Easy Drive, Differential SAR ADCs

Tools & Simulations

Precision ADC Driver Tool

The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input

Open Tool

AD7982 IBIS Models 2

Evaluation Kits

AD7982 Evaluation kit

Buy Now View Details

Product Details

The EVAL-AD7982SDZ is a fully featured evaluation kit for the AD7982. This board operates in stand alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.

Resources

UG-682: 6-Lead SOT-23 ADC Driver for the 8-/10-Lead Family of 14-/16-/18-Bit PulSAR ADC Evaluation Boards (Rev.0)
433.96 K

UG-340: Evaluation Board for the 10-Lead Family 14-/16-/18-Bit PulSAR ADCs
4636 kB

10 Lead PulSAR^® Family Evaluation Board User Guide

Software

10 lead Pulsar ADCs Evaluation Software
393.78 M

18-Bit, 1000 kSPS PulSAR® ADC PMOD Evaluation Board

Buy Now View Details

Features and Benefits

18-Bit Analog to Digital Converters
1000 kSPS
Unipolar, Differential Input
Standard SPI PMOD header/pin out
Connectable to 3rd Party FPGA and MCU Platforms

Product Details

The PMOD-compatible evaluation/prototyping board is a small form factor, low-cost analog-to-digital conversion option. When prototyping, this board is used in conjunction with your favorite MCU or FPGA development board which has the SPI PMOD peripheral connector. Direct electrical and physical connection will enable you to quickly develop software for your system.

This board can also be operated as an evaluation board using the System Demonstration Platform (EVAL-SDP-CB1Z) and an adaptor board (SDP-PMD-IB1Z). When operated with the System Demonstration Platform, a LabView software GUI is provided enabling the user to perform analysis of the ADC's performance.
