MAX626

PRODUCTION

Dual-Power MOSFET Drivers

Data Sheet (Rev. 1) Product Selection Table

Part Models: 7
1ku List Price: Starting From $2.54

Viewing:

Part Details

Improved Second Source For TSC426/7/8
Fast Rise and Fall Times: Typically 20ns with 1000pF Load
Wide Supply Range: V_DD = 4.5 to 18 Volts
Low Power Consumption:
- 7mW with Inputs Low
- 150mW with Inputs High
TTL/CMOS Input Compatible
Low R_OUT: Typically 4Ω

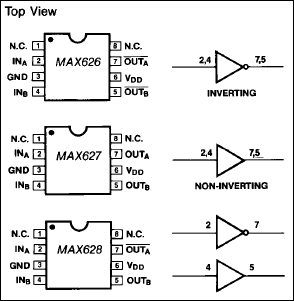

MAX626 is Pin Equlvalent to TSC426, DS0026/DS0056

Part Models: 7
1ku List Price: Starting From $2.54

Documentation

Data Sheet 2

MAX626-TSC428: Dual-Power MOSFET Drivers Data Sheet (Rev.1) 08/01/1996

MAX626: Military Datasheet 09/11/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX626CPA+	Plastic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626CSA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626CSA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626EPA+	Plastic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626ESA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626ESA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX626MJA/883B	Ceramic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2020 - 1702R2 ASSEMBLY
		pcn_1702r2
MAX626CSA+	PRODUCTION
MAX626CSA+T	PRODUCTION
MAX626ESA+	PRODUCTION
MAX626ESA+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
High-Side Switches and MOSFET Drivers 3
MAX4420	PRODUCTION	High-Speed, 6A MOSFET Driver (Noninverting)
MAX4426	PRODUCTION	Dual High-Speed, 1.5A MOSFET Drivers
ICL7667	PRODUCTION	Dual-Power MOSFET Driver (Inverting)
