HMC3716

PRODUCTION

HBT Digital Phase Frequency Detector 10 - 1300 MHz

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Ultra low SSB phase noise floor: -153dBc/Hz at 10kHz offset at 100MHz
Integrated output resistors
Improved input sensitivity
Lock detect and invert functionality
24-pin 4 x 4mm SMT package

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC3716: HBT Digital Phase Frequency Detector 10 - 1300 MHz Data Sheet 04/22/2016

Frequently Asked Question 1

FAQ: HMC Phase Frequency Detectors 05/06/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC3716LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC3716LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 19, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC3716LP4E	PRODUCTION
HMC3716LP4ETR	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
High Speed Op Amps (Bandwidth ≥ 50MHz) 1
LT6200	PRODUCTION	165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family
Low Input Bias Current Op Amps (≤100 pA) 1
ADA4625-1	RECOMMENDED FOR NEW DESIGNS	36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp
Low Power Op Amps (≤ 1mA/amp) 1
ADA4084-1	RECOMMENDED FOR NEW DESIGNS	30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Single Amplifier

Tools & Simulations

Design Tool 1

Using the HMC Design Tool for Synthesizers with a PFD Output

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

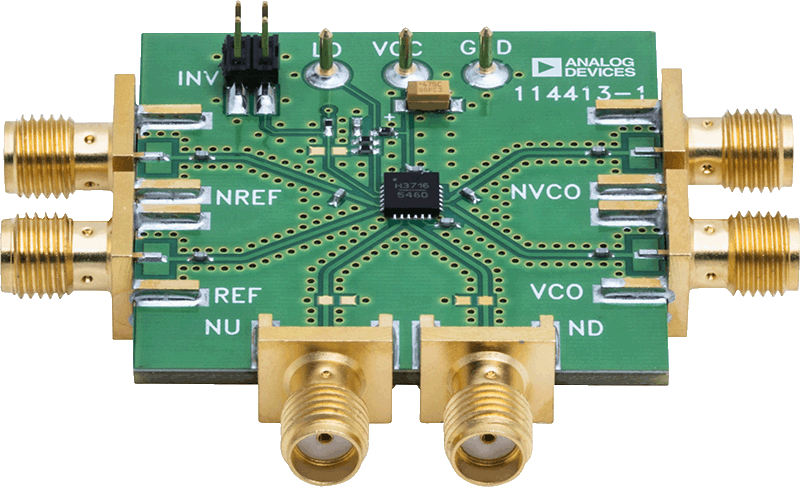

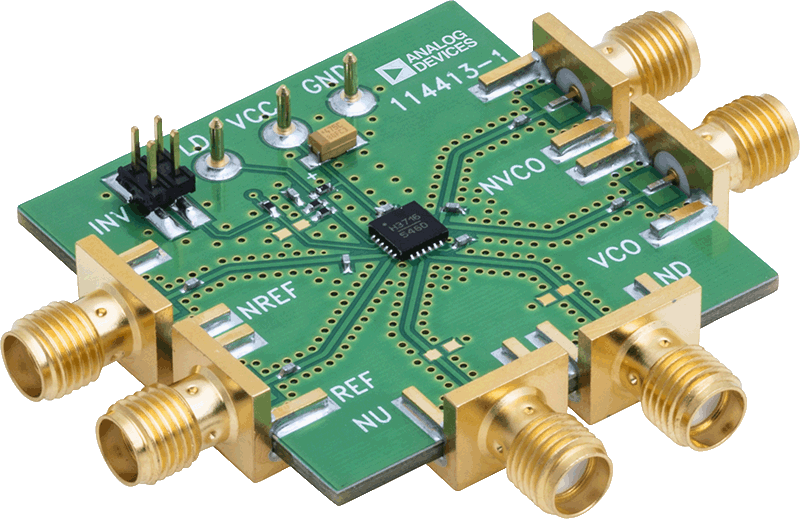

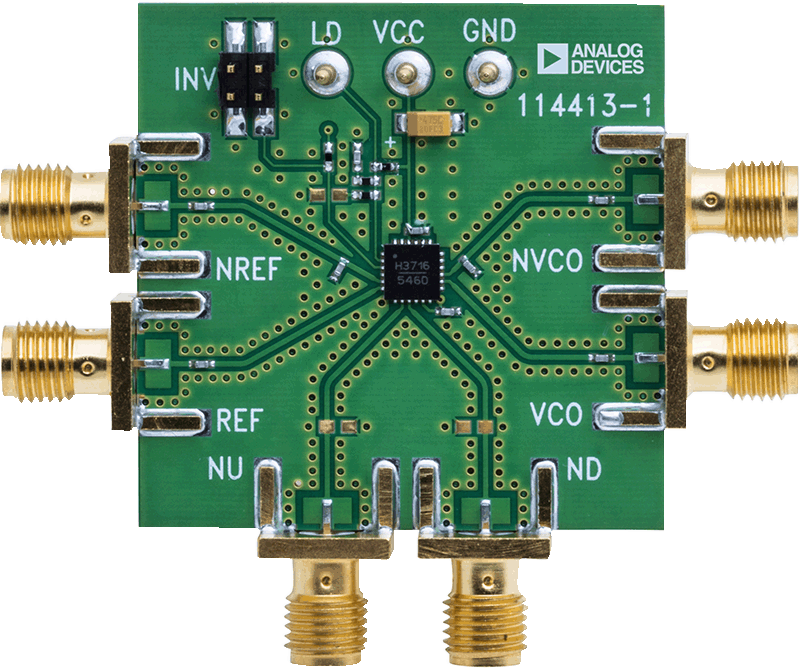

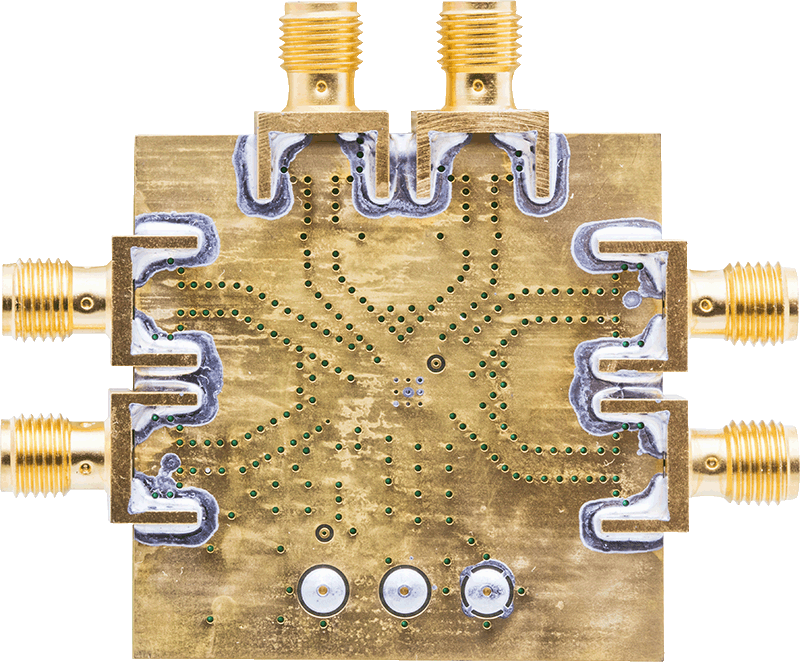

HMC3716 Evaluation Board

Buy Now View Details

Product Details

The circuit board used in the application should use RF circuit design techniques. Signal lines should have 50 Ω impedance while the package ground leads and backside ground paddle should be connected directly to the ground plane similar to that shown on page 10 of the data sheet. A sufficient number of via holes should be used to connect the top and bottom ground planes.
