MAX30112

• 快速评估MAX30110
• 支持配置优化
• 便于理解MAX30110架构和方案策略
• 实时监测
• 数据记录能力
• USB供电
• 板载加速度计

MAX30110评估板(EV kit)允许快速评估MAX30110和MAX30112光学AFE，支持各种人体部位特别是腕戴式应用。MAX30110支持标准SPI兼容接口，MAX30112支持I²C兼容接口。评估板允许灵活配置，支持以最小功耗实现最优测量信号质量。评估板有助于用户快速学习如何配置和使用MAX30110和MAX30112。

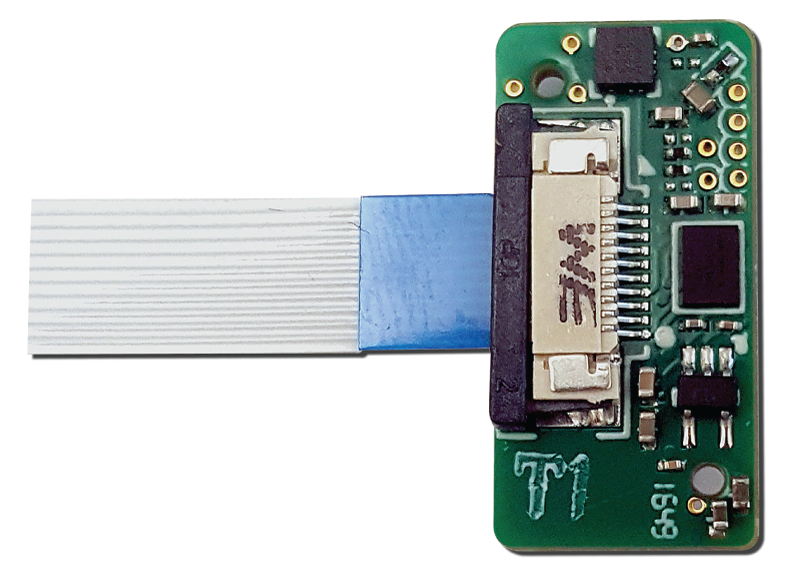

评估板包括三块电路板。MAX30110_UC_ EVKIT为数据采集主板，MAX30110_SFH7050_EVKIT和MAX30110_OSB_EVKIT为传感器子板，MAX30110器件安装在子板中，可采用不同的光学配置。评估板由USB供电，产生AFE和加速度计使用的+1.8V以及LED使用的+4.5V。

评估板已安装MAX30110EWG+，器件采用24焊球晶圆级封装(WLP)。

应用

• 健身可穿戴设备
• 入耳式可穿戴设备
• SpO₂监测设备
• 腕戴式设备

Description

The MAXREFDES1207 is a reference design for wearable application based on a total Analog Devices solution which includes the MAX32660, MAX30112, MAX77651B, and MAX40005. This solution demonstrates how a small size, low cost, low power, high accuracy heart-rate (HR) monitor can be easily implemented. This design can monitor heart rate using two green LEDs.

The MAX30112 is an optimized pulse-oximeter and heartrate AFE for wearable health. It has a high-resolution, optical readout signal-processing channel with built-in ambient light cancellation as well as high-current LED driver DACs to form a complete optical readout signal chain. With external LED(s) and photodiode(s), the MAX30112 offers the lowest power, highest performance heart-rate detection solution for wrist applications. The MAX77651B provides highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. The device features a SIMO buckboost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA). The MAX32660 is an ultra-low-power, cost-effective, highly- integrated microcontroller unit (MCU) designed for battery- powered devices and wireless sensors. It combines a flexible and versatile power management unit with the powerful Arm^® Cortex^®-M4 with floating point unit (FPU). The MAX40005 is a tiny, single comparator which is ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. The design also contains an FTDI FT234 USB-to-serial UART interface.
