LTC3726

不推荐用于新设计

副端同步正激式控制器

数据手册 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 副端控制用于实现快速瞬态响应
  • 自起动架构免除了增设单独偏置稳压器的需要
  • 专有的栅极驱动编码方案降低了系统复杂性
  • 电流模式控制可确保电流均分
  • PLL 固定频率：100kHz 至 500kHz
  • ±1% 输出电压准确度
  • OPTI-LOOP 补偿
  • 采用窄体 16 引脚 SSOP 封装
LTC3726
副端同步正激式控制器

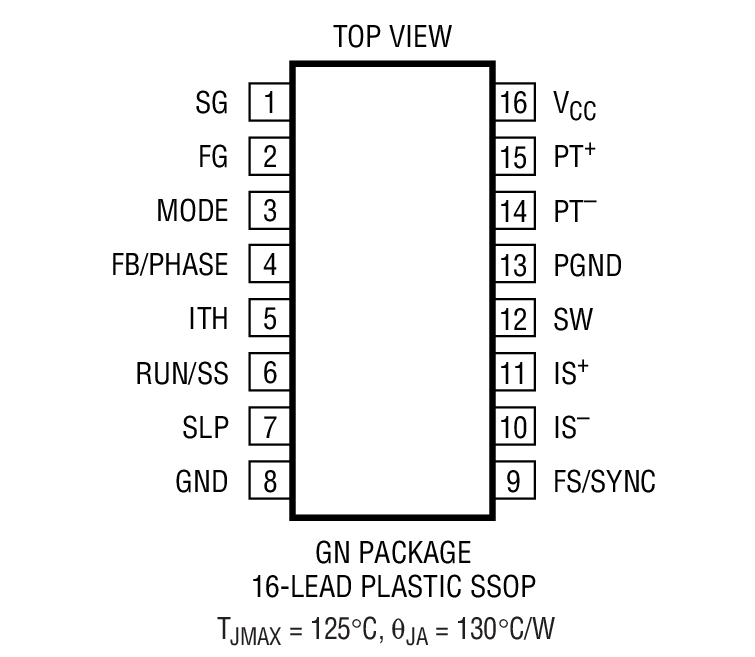

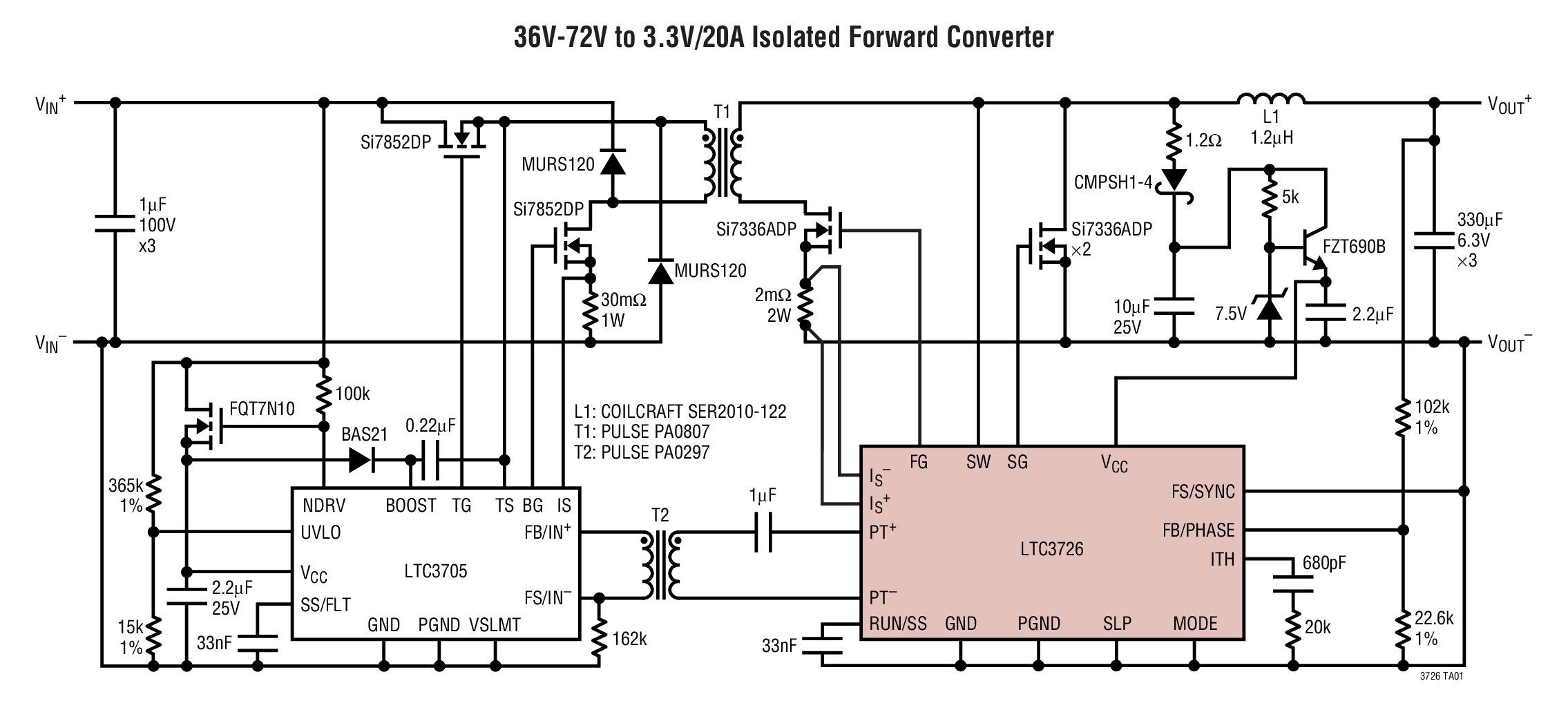

36V-72V to 3.3V/20A Isolated Forward Converter Product Package 1
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 10

设计笔记 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

LTspice 1

LTspice中提供以下器件型号：

  • LTC3726
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
DC1031A-B

LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 3.3V @ 20A

立即购买 更多内容

产品详情

Demonstration circuit 1031A-B is a 36V-72Vin, synchronous forward converter featuring the LTC3725 forward converter and the LTC3726 secondary-side controller. This circuit was designed specifically to attain a high current, low ripple, synchronously rectified forward converter to efficiently power 3.3V loads at up to 20A from a typical telecom input voltage range. This circuit features secondary side control of the supply eliminating the need for an optocoupler.



eval board
schematic 2
DC1031A-A

LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 2.5V @ 20A

立即购买 更多内容

产品详情

Demonstration circuit 1031A-A is a 36V-72Vin, synchronous forward converter featuring the LTC3725 forward converter and the LTC3726 secondary-side controller. This circuit was designed specifically to attain a high current, low ripple, synchronously rectified forward converter to efficiently power 2.5V loads at up to 20A from a typical telecom input voltage range. This circuit features secondary side control of the supply eliminating the need for an optocoupler.



eval board
schematic 3
DC1300A-C

LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 15V/6.7A

立即购买 更多内容

产品详情

DC1300A-C: Demo Board for:

LTC3725 - Single-Switch Forward Controller and Gate Driver
LTC3726 - Secondary-Side Synchronous Forward Controller





eval board
schematic 4
DC1300A-B

LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 12V/8.4A

立即购买 更多内容

产品详情

DC1300A-B: Demo Board for:

LTC3725 - Single-Switch Forward Controller and Gate Driver
LTC3726 - Secondary-Side Synchronous Forward Controller





eval board
schematic 5
DC1174A-B

LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 12V/4A

立即购买 更多内容

产品详情

DC1174A-B: Demo Board for the LTC3725 Single-Switch Forward Controller and Gate Driver and LTC3726 Secondary-Side Synchronous Forward Controller

eval board
schematic 6
DC1300A-A

LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 5.0V/20A

立即购买 更多内容

产品详情

DC1300A-A: Demo Board for:

LTC3725 - Single-Switch Forward Controller and Gate Driver
LTC3726 - Secondary-Side Synchronous Forward Controller





eval board
schematic 7
DC1031A-C

LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 5V @ 20A

立即购买 更多内容

产品详情

Demonstration circuit 1031A-C is a 36V-72Vin, synchronous forward converter featuring the LTC3725 forward converter and the LTC3726 secondary-side controller. This circuit was designed specifically to attain a high current, low ripple, synchronously rectified forward converter to efficiently power 5V loads at up to 20A from a typical telecom input voltage range. This circuit features secondary side control of the supply eliminating the need for an optocoupler.



eval board
schematic 8
DC1032A

LTC3725EMSE/LTC3726EGN 1/8砖 | 36V < VIN < 72V，VOUT：12V/10A

立即购买 更多内容

产品详情

DC1032A——演示板适用于：
LTC3725——单开关正激式控制器和栅极驱动器
LTC3726——次级同步正激式控制器





eval board
schematic 9
DC1174A-A

LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 5.0V/10A

立即购买 更多内容

产品详情

DC1174A-A: Demo Board for the LTC3725 Single-Switch Forward Controller and Gate Driver and LTC3726 Secondary-Side Synchronous Forward Controller

eval board
schematic 10
DC1174A-C

LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 15V/3A

立即购买 更多内容

产品详情

DC1174A-C: Demo Board for the LTC3725 Single-Switch Forward Controller and Gate Driver and LTC3726 Secondary-Side Synchronous Forward Controller
DC1031A-B
LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 3.3V @ 20A
DC1031A-B - Schematic
DC1031A-A
LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 2.5V @ 20A
DC1031A-A - Schematic
DC1300A-C
LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 15V/6.7A
DC1300A-C - Schematic
DC1300A-B
LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 12V/8.4A
DC1300A-B - Schematic
DC1174A-B
LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 12V/4A
DC1174A-B - Schematic
DC1300A-A
LTC3725EMSE/LTC3726EGN 1/4 Brick | 9V < VIN < 36V, VOUT: 5.0V/20A
DC1300A-A - Schematic
DC1031A-C
LTC3725EMSE/LTC3726EGN Demo Board | Single-Switch Forward Converter, 36V ≤ VIN ≤ 72V, VOUT = 5V @ 20A
DC1031A-C - Schematic
DC1032A
LTC3725EMSE/LTC3726EGN 1/8砖 | 36V < VIN < 72V，VOUT：12V/10A
DC1032A - Schematic
DC1174A-A
LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 5.0V/10A
DC1174A-A - Schematic
DC1174A-C
LTC3725EMSE/LTC3726EGN 1/8 Brick | 9V < VIN < 36V, VOUT: 15V/3A
DC1174A-C - Schematic
