LTC2655

量产

具10ppm/ºC 最大值基准的四通道、I²C、16 位 / 12 位、轨至轨 DAC

数据手册产品选型表

产品模型: 32

Viewing:

产品详情

集成 10ppm/ºC 最大值基准
最大 INL 误差：±4LSB (在 16 位)
在整个温度范围内保证单调
可选择的内部或外部基准
2.7V 至 5.5V 电源范围 (LTC2655-L)
集成基准缓冲器
DAC 之间的超低串扰 (<1nV•s)
上电复位至零标度/中间标度
异步 DAC 更新引脚
纤巧型 20 引脚 4mm x 4mm QFN 封装和 16 引脚窄体 SSOP 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC2655BCGN-H16#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCGN-H16#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCGN-L16#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCGN-L16#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCUF-H16#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCUF-H16#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCUF-L16#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BCUF-L16#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIGN-H16#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIGN-H16#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIGN-L16#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIGN-L16#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIUF-H16#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIUF-H16#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIUF-L16#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655BIUF-L16#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CGN-H12#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CGN-H12#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CGN-L12#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CGN-L12#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CUF-H12#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CUF-H12#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CUF-L12#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655CUF-L12#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IGN-H12#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IGN-H12#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IGN-L12#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IGN-L12#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IUF-H12#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IUF-H12#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IUF-L12#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2655IUF-L12#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 3, 2024 - 24_0235 (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking
		PCN24_0235_Form Material_Report Other Delta Qualification Matrix
LTC2655BCGN-H16#PBF	量产
LTC2655BCGN-H16#TRPBF	量产
LTC2655BCGN-L16#PBF	量产
LTC2655BCGN-L16#TRPBF	量产
LTC2655BIGN-H16#PBF	量产
LTC2655BIGN-H16#TRPBF	量产
LTC2655BIGN-L16#PBF	量产
LTC2655BIGN-L16#TRPBF	量产
LTC2655CGN-H12#PBF	量产
LTC2655CGN-H12#TRPBF	量产
LTC2655CGN-L12#PBF	量产
LTC2655CGN-L12#TRPBF	量产
LTC2655IGN-H12#PBF	量产
LTC2655IGN-H12#TRPBF	量产
LTC2655IGN-L12#PBF	量产
LTC2655IGN-L12#TRPBF	量产
10月 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package
		PCN22_0235_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC2655BCGN-H16#PBF	量产
LTC2655BCGN-H16#TRPBF	量产
LTC2655BCGN-L16#PBF	量产
LTC2655BCGN-L16#TRPBF	量产
LTC2655BIGN-H16#PBF	量产
LTC2655BIGN-H16#TRPBF	量产
LTC2655BIGN-L16#PBF	量产
LTC2655BIGN-L16#TRPBF	量产
LTC2655CGN-H12#PBF	量产
LTC2655CGN-H12#TRPBF	量产
LTC2655CGN-L12#PBF	量产
LTC2655CGN-L12#TRPBF	量产
LTC2655IGN-H12#PBF	量产
LTC2655IGN-H12#TRPBF	量产
LTC2655IGN-L12#PBF	量产
LTC2655IGN-L12#TRPBF	量产
4月 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
		PCN22_0066_Form Material_Report Delta Qualification Matrix
LTC2655BCGN-H16#PBF	量产
LTC2655BCGN-H16#TRPBF	量产
LTC2655BCGN-L16#PBF	量产
LTC2655BCGN-L16#TRPBF	量产
LTC2655BIGN-H16#PBF	量产
LTC2655BIGN-H16#TRPBF	量产
LTC2655BIGN-L16#PBF	量产
LTC2655BIGN-L16#TRPBF	量产
LTC2655CGN-H12#PBF	量产
LTC2655CGN-H12#TRPBF	量产
LTC2655CGN-L12#PBF	量产
LTC2655CGN-L12#TRPBF	量产
LTC2655IGN-H12#PBF	量产
LTC2655IGN-H12#TRPBF	量产
LTC2655IGN-L12#PBF	量产
LTC2655IGN-L12#TRPBF	量产
2月 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC2655BCUF-H16#PBF	量产
LTC2655BCUF-H16#TRPBF	量产
LTC2655BCUF-L16#PBF	量产
LTC2655BCUF-L16#TRPBF	量产
LTC2655BIUF-H16#PBF	量产
LTC2655BIUF-H16#TRPBF	量产
LTC2655BIUF-L16#PBF	量产
LTC2655BIUF-L16#TRPBF	量产
LTC2655CUF-H12#PBF	量产
LTC2655CUF-H12#TRPBF	量产
LTC2655CUF-L12#PBF	量产
LTC2655CUF-L12#TRPBF	量产
LTC2655IUF-H12#PBF	量产
LTC2655IUF-H12#TRPBF	量产
LTC2655IUF-L12#PBF	量产
LTC2655IUF-L12#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
I²C 隔离器 1
LTM2883	量产	具可调 ±12.5V 和 5V 稳定电源的 SPI / 数字或 I²C μModule 隔离器
串行总线缓冲器、扩展器和加速度计 2
LTC4316	量产	单通道 I²C / SMBus 地址转换器
LTC4317	量产	双通道 I²C / SMBus 地址转换器

工具及仿真模型

Linduino 3

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

Linduino是ADI公司的Arduino兼容系统，用于开发和分配面向集成电路的固件库和示例代码。每个支持Linduino的产品包括示例主程序（在LTSketchbook/产品型号文件夹中定义）和驱动程序代码（在LTSketchbook/库文件夹中定义）。

GitHub上的Linduino代码存储库以及有关如何使用代码的说明。

购买Linduino

评估套件

LTC2655-L12 Demo Board | Quad I2C 12-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

立即购买更多内容

产品详情

Demonstration circuit 1703A features the LTC2655 quad 16-/12-bit DAC. The LTC2655 is a family of 16-/12- bit rail-to-rail DACs with integrated 10ppm/°C maximum reference. The LTC2655 advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.

资料

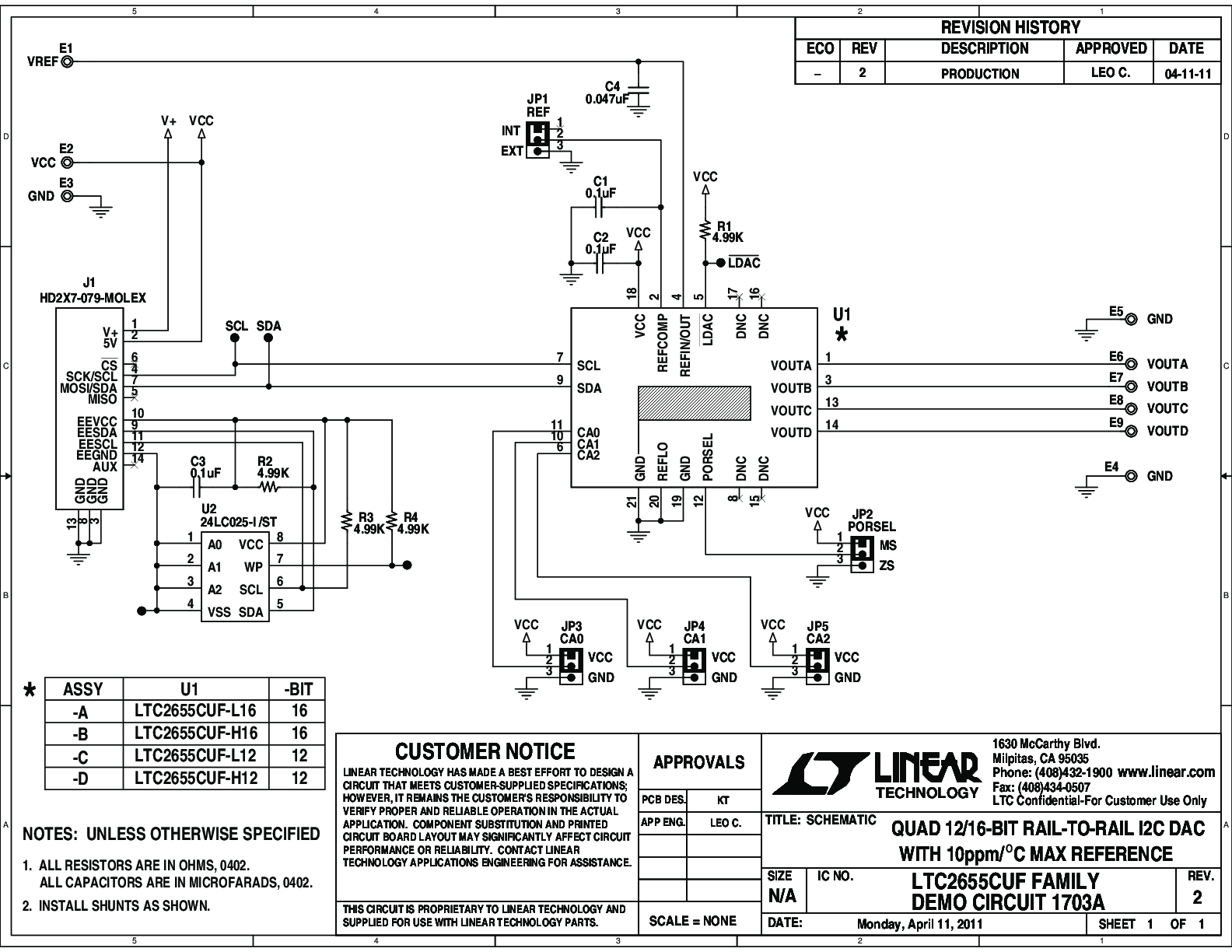

DC1703A - Schematic
