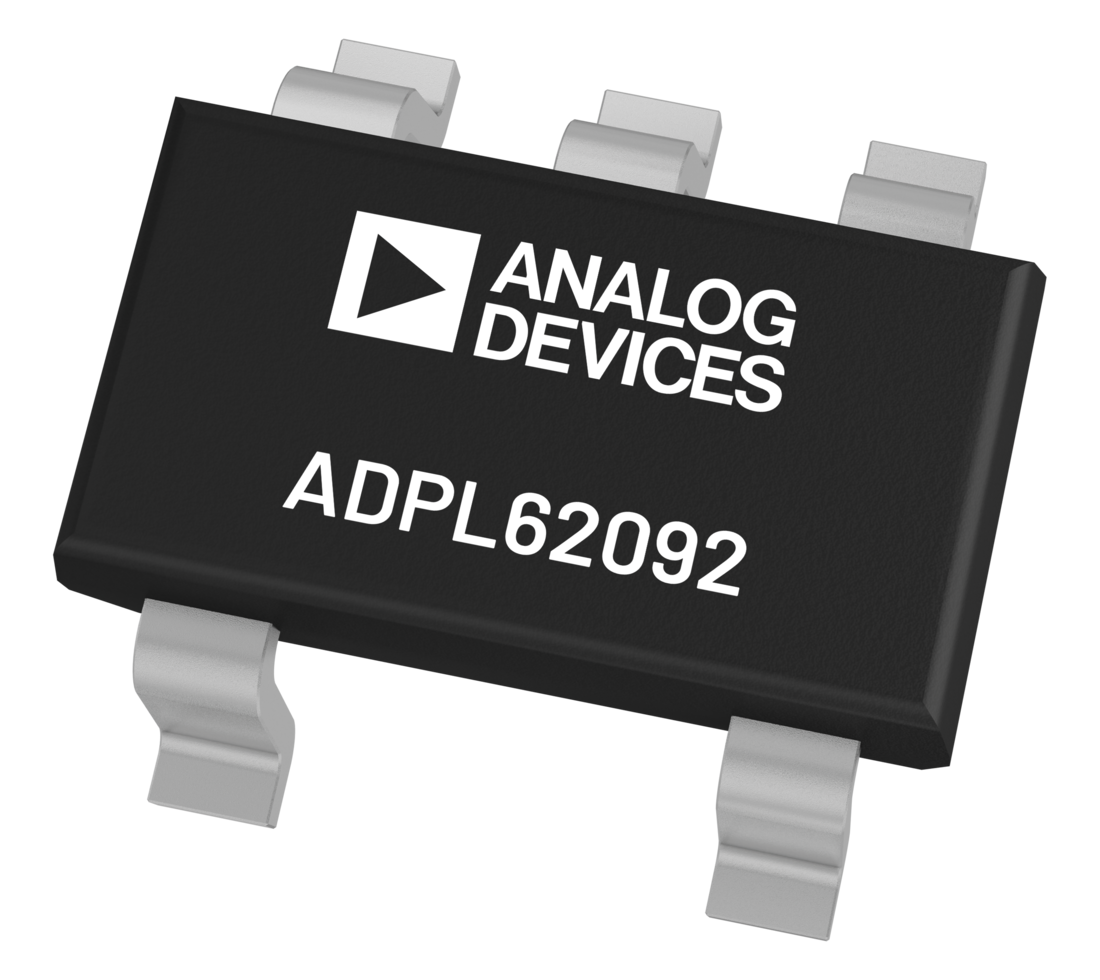

推荐新设计使用Low-Power, Supervisory Circuit with Manual Reset and Watchdog Timer in 5-Lead SOT23
Low-Power Supervisory Circuit with Manual Reset and Watchdog Timer in 5-Lead SOT-23
- 产品模型
- 8
产品详情
- Low Supply Current: 5μA (typ), 6.8μA (max) at 3.6V Over Temperature (TA = +125°C)
- Factory-Set Reset Threshold Options from 1V to 5V in 50mV/100mV Increments
- Watchdog Timer Capability
- Manual Reset Input
- Guaranteed Reset Valid to VCC ≥ 1V
- Open-Drain Reset Output
- Power Supply Transient Immunity
- -40°C to +125°C Operating Temperature Range

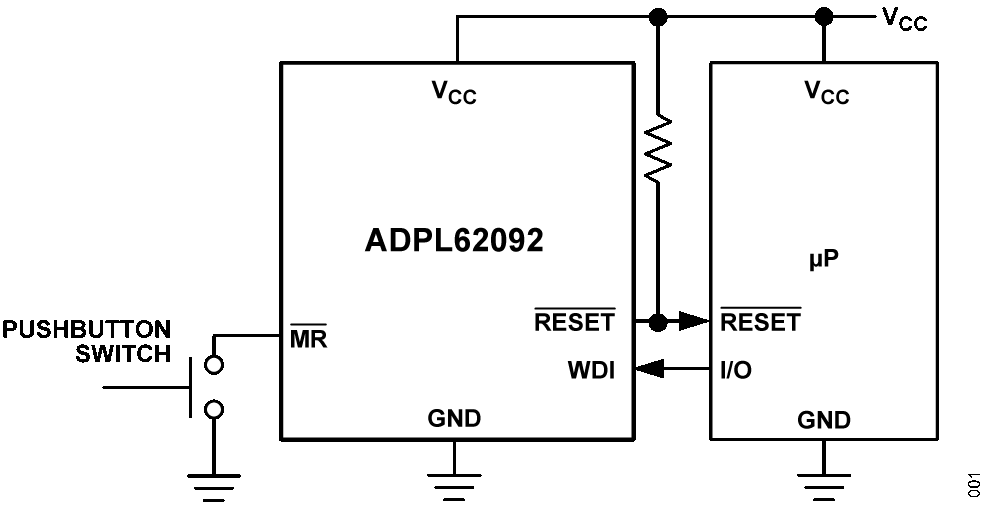

The ADPL62092 is a supervisory circuit that monitors voltages from 1.1V to 5V using a factory-set reset threshold. It offers a watchdog timer and manual reset capability.
The ADPL62092 features an open-drain, active-low reset output. The reset output asserts and remains asserted for the reset timeout period after the monitored voltage exceeds its threshold.

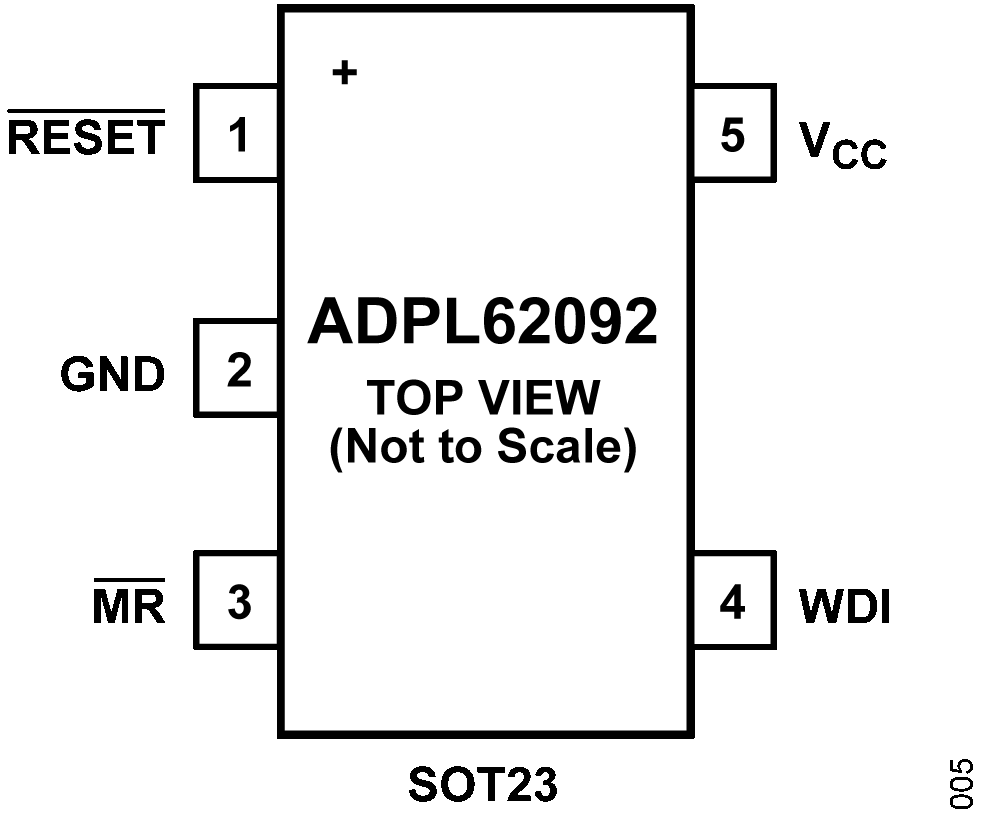

The ADPL62092 is available in 5-pin SOT23 package. It can operate over the -40°C to +125°C temperature range.
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADPL62092UK16AKA+ | Small-Outline Transistor Package | ||
| ADPL62092UK16AKA+T | Small-Outline Transistor Package | ||
| ADPL62092UK26OOA+ | Small-Outline Transistor Package | ||
| ADPL62092UK26OOA+T | Small-Outline Transistor Package | ||
| ADPL62092UK28BGA+ | Small-Outline Transistor Package | ||
| ADPL62092UK28BGA+T | Small-Outline Transistor Package | ||
| ADPL62092UK29OMA+ | Small-Outline Transistor Package | ||
| ADPL62092UK29OMA+T | Small-Outline Transistor Package |
