ADH903S

推荐新设计使用

Aerospace, GaAs, pHEMT, MMIC, Low Noise Amplifier, 6 GHz to 18 GHz (Die), 6 GHz to 17 GHz (LH5 Pkg)

Viewing:

产品详情

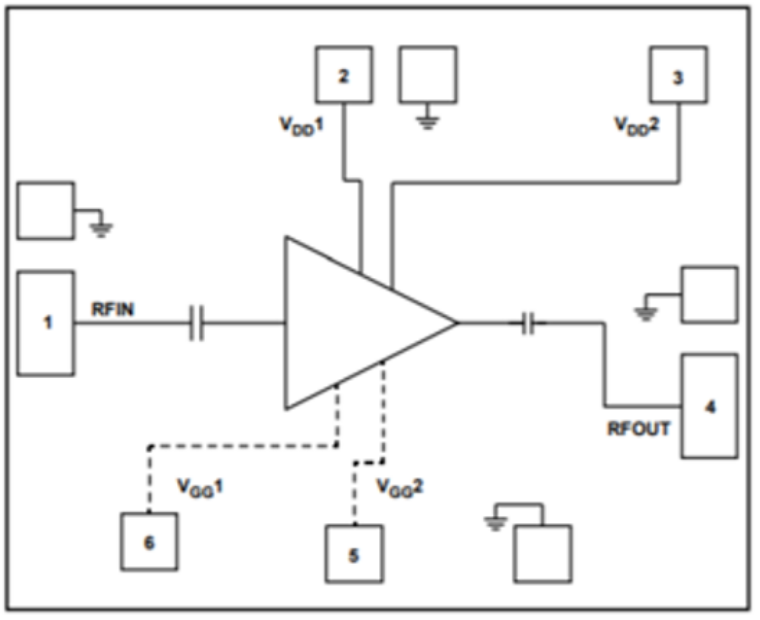

ADH903S (Die)

Frequency of Operation: 6 GHz to 18 GHz
Noise Figure: 1.6 dB typical
Small Signal Gain: 19 dB typical
Output P1dB: 16 dBm typical
Single Supply Voltage: +3.5 V @ 90 mA typical
Output IP3: 27 dBm typical
50 Ohm Matched Input/Output
Self-biased with optional bias control for quiescent drain (I_DQ) control reduction with no radio frequency (RF) applied
Small Size: 1.364 mm x 1.114 mm x 0.10 mm
Screened in accordance with MIL-PRF-38534, Class K

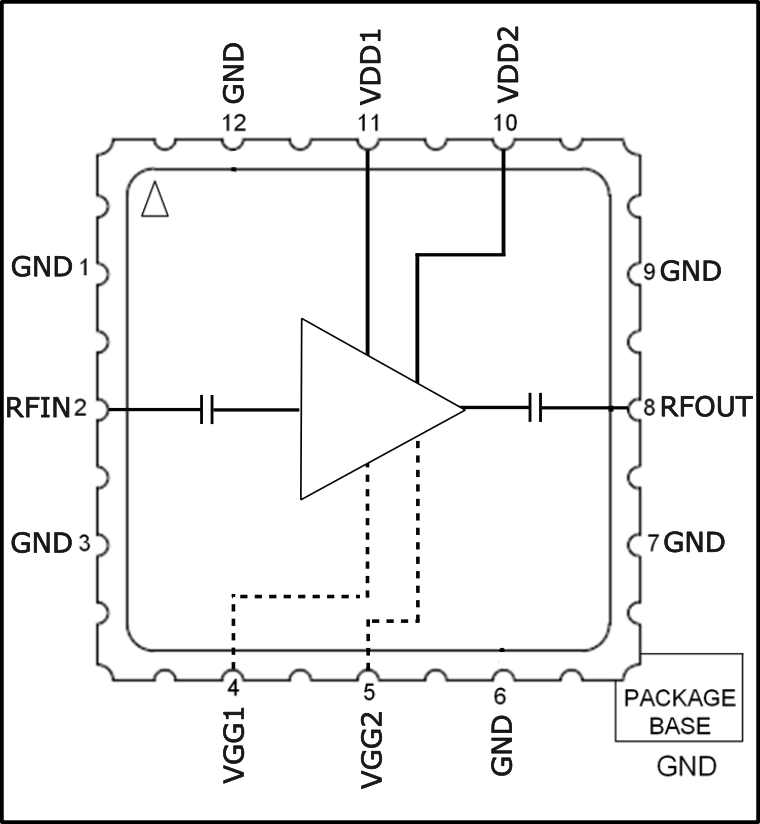

ADH903S (LH5 Package)

Frequency of Operation: 6 GHz to 17 GHz
Noise Figure: 1.6 dB typical
Small Signal Gain: 19 dB typical
Output P1dB: 16 dBm typical
Single Supply Voltage: +3.5 V @ 90 mA typical
50 Ohm Matched Input/Output
Self-biased with optional bias control for quiescent drain (I_DQ) control reduction with no radio frequency (RF) applied
Screened in accordance with MIL-PRF-38535, Class Level B

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
HMC8669	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys

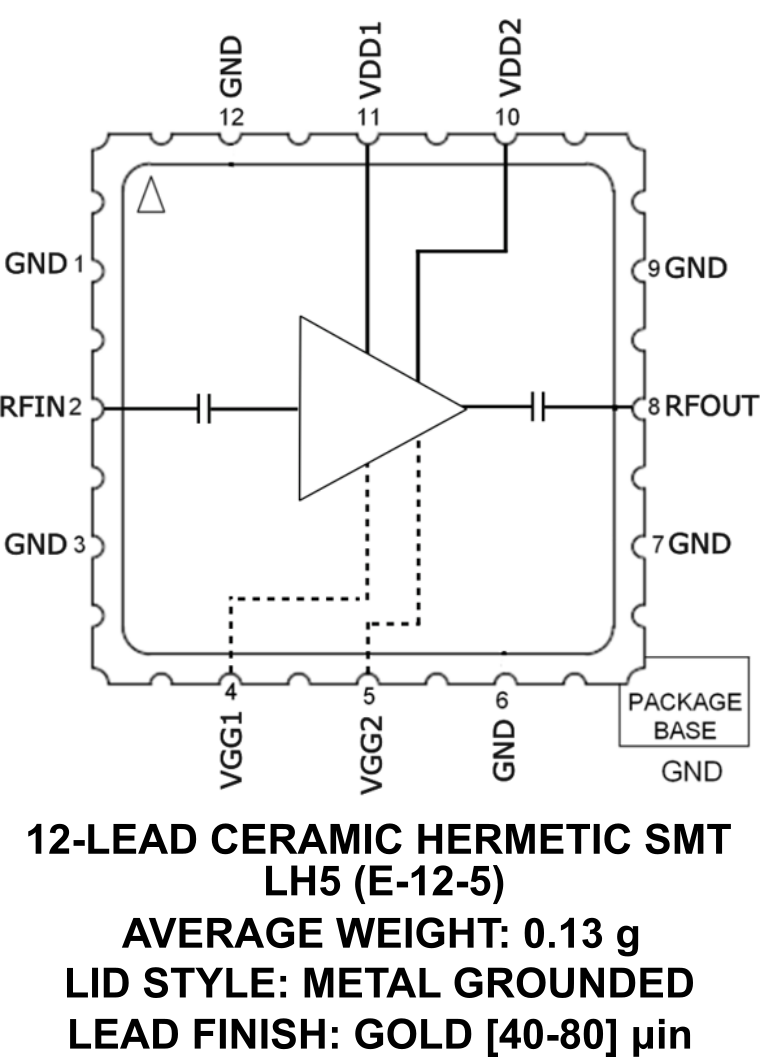

HMC8679LH5	12-Lead LCC (5.08mmm x 5.08mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
