ADH753S
推荐新设计使用1 GHz to 11 GHz, LNA
- 产品模型
- 1
产品详情
-
Noise Figure:
- 3 GHz to 8 GHz: 2 dB Typ
- 8 GHz to 10.5 GHz: 2.5 dB Typ
-
Gain:
- 3 GHz to 8 GHz: 16.5 dB Typ
- 8GHz to 10.5 GHz: 14.8 dB Typ
-
P1dB Output Power:
- 3 GHz to 8 GHz: + 17 dBm Typ
- 8 GHz to 10.5 GHz: +13 dBm Typ
-
Output IP3:
- 3 GHz to 8 GHz: +28 dBm Typ
- 8 GHz to 10.5 GHz: +27 dBm Typ.
- 50 Ohm matched Input/output
- Supply Voltage: +5 V @ 55 mA
- 12-Lead Hermetic SMT Package
- Screened in accordance with MIL-PRF-38535, Class Level S
The ADH753S is a GaAs MMIC Low Noise Wideband Amplifier housed in a ceramic 12-Lead hermetic package. The amplifier operates between 1GHz and 11 GHz, providing up to 16.5 dB of small signal gain, 1.5 dB noise figure, and output IP3 of +30 dBm, while requiring only 55 mA from a +5V supply. The P1dB output power of up to +18 dBm enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The ADH753S also features I/Os that are DC blocked and internally matched to 50 Ohms. This versatile LNA is also available in die form as the ADH-ALH444S.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radios
- Satellite Communications
- Instrumentation
- Military & Space
参考资料
应用笔记 1
控制图纸 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

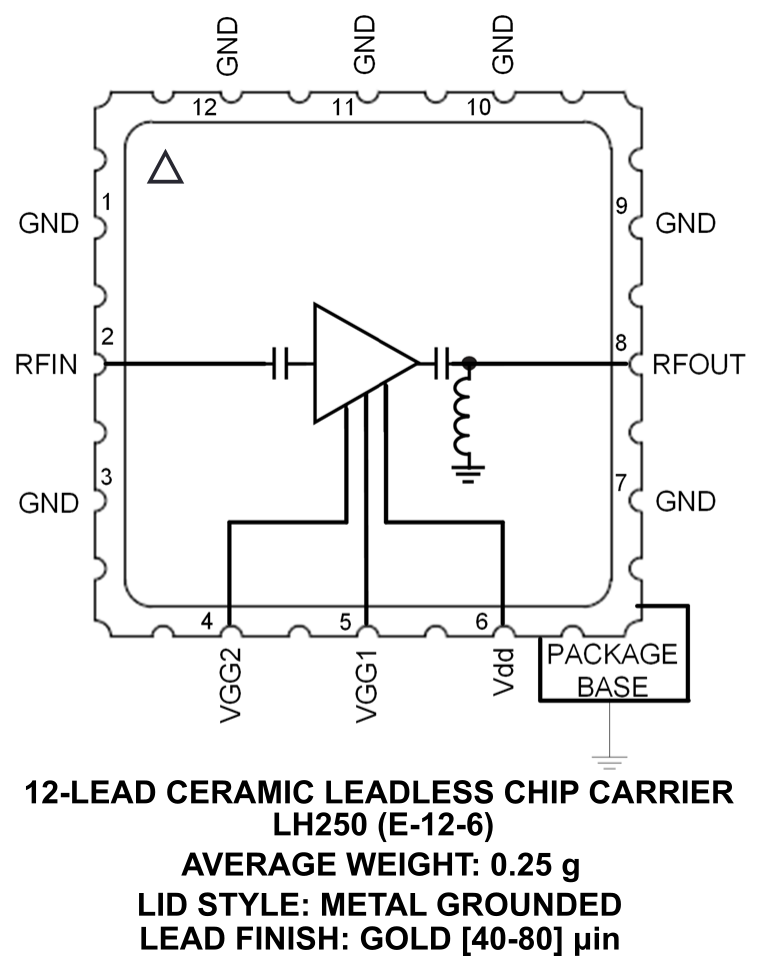

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8356LH250 | 12-Lead LCC (6.35mm x 6.35mm x 1.12) |
