ADH635S
推荐新设计使用Aerospace, GaAs, PHEMT, MMIC, Driver Amplifier, 18 GHz to 40 GHz
- 产品模型
- 1
产品详情
- Gain: 19.5 dB
- P1dB: +23 dBm
- Output IP3: 29 dBm
- Saturated Power: + 24 dBm @ 15% PAE
- Single Voltage: +5V @ 280 mA
- 50 Ohm Matched Input/Output
- Small Die Size: 1.95 mm x 0.84 mm x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

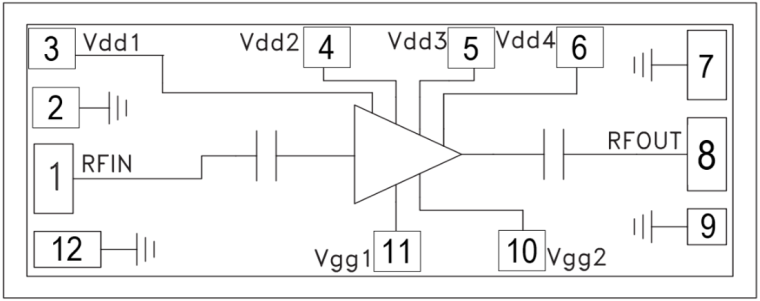

The ADH635S is a GaAs PHEMT MMIC Driver Amplifier die which operates between 18 GHz and 40 GHz. The amplifier provides 19.5 dB of gain, +29 dBm Output IP3, and +23 dBm of output power at 1 dB gain compression, while requiring 280 mA from a +5V supply. Ideal as a driver amplifier for microwave radio applications, or as an LO driver for mixers operating between 18 and 40 GHz, the ADH635S can provide up to +24 dBm of saturated output power at 15% PAE. The amplifier’s I/Os are DC blocked and internally matched to 50 Ohms making it ideal for integration into Multi-Chip-Modules (MCMs).
Applications
- Point-to-Point Radios
- Point-to-Multi-Point & VSAT
- LO Driver
- Military & Space
参考资料
应用笔记 1
控制图纸 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC6987 | CHIPS OR DIE |
