ADH465S
推荐新设计使用Aerospace, GaAs, pHEMT, MMIC, Distributed Driver Amplifier, DC to 20 GHz.
- 产品模型
- 1

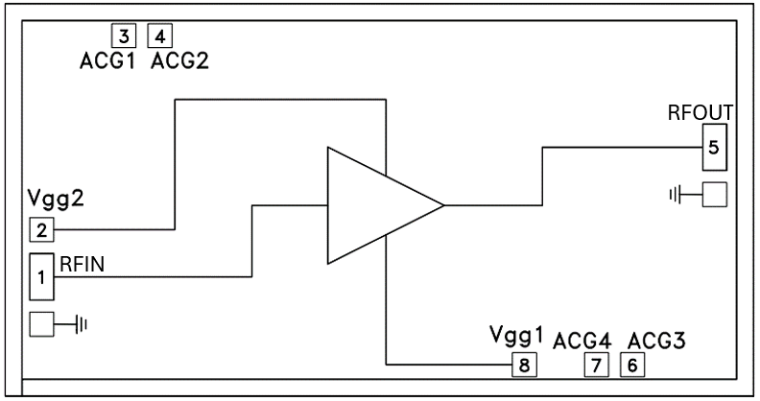

产品详情
- Gain: 17 dB
- Output Voltage to 10 Vp-p
- Saturated Output Power: +24 dBm
- Supply Voltage: +8V @ 160 mA
- 50 Ohm Matched Input/Output
- Die Size: 3.044 mm x 1.559 mm x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K
The ADH465S is a GaAs MMIC PHEMT Distributed Driver Amplifier die which operates between DC and 20 GHz. The amplifier provides 17 dB of gain, 2.5 dB noise figure and +24 dBm of saturated output power while requiring only 160 mA from a +8V supply. Gain flatness is excellent at ±0.25 dB as well as ±1 deg deviation from linear phase from DC to 10 GHz making the ADH465S ideal for optical networking, driver amplifier as well as test equipment applications. The ADH465S amplifier I/Os are internally matched to 50 Ohms facilitating easy integration into Multi-Chip-Modules (MCMs).
Applications
- Modulator Driver
- Test Instrumentation
- Military & Space
参考资料
应用笔记 1
控制图纸 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8334 | CHIPS OR DIE |
