ADH392AS
推荐新设计使用Aerospace, GaAs, MMIC, Low Noise Amplifier, 3.5 GHz to 7 GHz.
- 产品模型
- 1
产品详情
- Gain 17.2 dB
- Noise Figure 1.7 dB
- Single Supply Voltage: +5V
- 50 Ohm Matched Input/Output
- No External Components Required
- Small Die Size: 1.3 mm x 0.9 mm x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

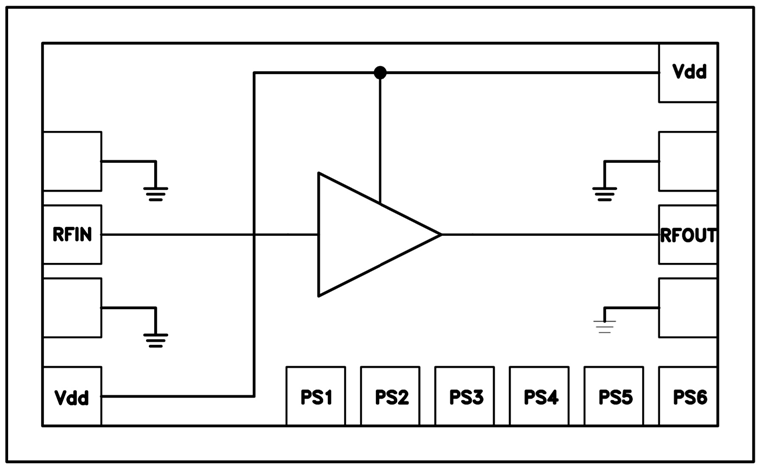

The ADH392AS is a GaAs, MMIC, Low Noise Amplifier die which operates between 3.5 GHz and 7 GHz. The amplifier provides 17.2 dB of gain, 1.7 dB noise figure, and 32.5 dBm IP3 from a +5V supply voltage. The ADH392AS has six bonding adjustment options which allow the user to select the bias point and output power of the device (+10 dBm to +19.7 dBm). The ADH392AS amplifier can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size.
Applications
- Point-to-Point Radios
- VSAT
- LO Driver
- Military & Space
