ADAQ4216

推荐新设计使用

16-Bit, 2MSPS, μModule Data-Acquisition Solution

数据手册 (Rev. 0) 产品选型表
产品模型
1
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Highly performance
    • Throughput: 2MSPS, no latency
    • INL: ±3ppm maximum from −40°C to 105°C
    • Total system dynamic range: 123dB typical
    • SNR: 97.5dBFS typical, THD: −122dBc typical
    • Offset error drift: +5.05μV/°C maximum
    • Gain error drift: +1.17ppm/°C maximum
  • Ease of use features reduce system complexity
    • Second-order, 270kHz anti-aliasing filter
    • High-Z PGIA gain options: 1/3, 5/9, 20/9, 20/3
    • Flexible external reference voltage: 4.096V or 5V
    • Differential input voltage ranges, ±REFIN/Gain: ±15V, ±9V, ±2.25V, ±0.75V
    • Wide input common-mode voltage range: −8V to +10V
    • Low input bias current: −30pA typical
  • High density solution reduces system footprint
    • 14mm x 9mm, 0.8mm pitch, 178-ball CSP BGA
    • 4× footprint reduction vs. equivalent discrete solution
    • On-board reference buffer with an internal VCM generation
  • Total power dissipation: 445mW typical at 2MSPS
  • Flexi-SPI digital interface
    • 1, 2, or 4 SDO lanes allows slower SCK
    • Echo clock mode simplifies use of digital isolator
    • Compatible with 1.2V to 1.8V logic
    • PGIA gain control (A0, A1) interface
    • Extended sample resolution to 30-bits
    • Overrange and synchronization bits
ADAQ4216
16-Bit, 2MSPS, μModule Data-Acquisition Solution
ADAQ4216 Functional Block Diagram ADAQ4216 Pin Configuration ADAQ4216 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

软件资源

Evaluation Software 3

工具及仿真模型

LTspice 1

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADAQ4216-FMCZ

Evaluating the ADAQ4216 16-Bit, 2MSPS, μModule Data-Acquisition Solution

立即购买 更多内容

特性和优点

  • Evaluation board for the ADAQ4216
  • On-board voltage reference and complete power solution
  • On-board clock source and level translators
  • ACE software for configuration and data analysis (time and frequency domain)
  • FMC-LPC system board connector Zedboard compatible

产品详情

The EVAL-ADAQ4216-FMCZ board enables quick and easy performance evaluation of the ADAQ4216, a 16-bit, 2MSPS μModule® data-acquisition system in package (SiP) solution. The ADAQ4216 combines critical passive components and signal processing blocks necessary for optimum precision performance:

  • A 16-bit, 2MSPS, successive approximation register (SAR) analog- to-digital converter (ADC)
  • A low-noise, high-bandwidth programmable instrumentation amplifier
  • A second-order anti-aliasing filter
  • A low-noise, low-distortion, high-bandwidth ADC driver
  • A 1.8V low dropout (LDO) regulator

The EVAL-ADAQ4216-FMCZ board can be directly interfaced with Digilent Zedboard by a 160-pin FMC connector, as shown in Figure 1 in the data sheet. The EVAL-ADAQ4216-FMCZ board has the necessary support circuitry for the operation and control of the ADAQ4216.

Full specifications on the ADAQ4216 are available in the ADAQ4216 data sheet available from Analog Devices, Inc., and must be consulted with this user guide when using the EVA-LADAQ4216- FMCZ board.
EVAL-ADAQ4216-FMCZ
Evaluating the ADAQ4216 16-Bit, 2MSPS, μModule Data-Acquisition Solution

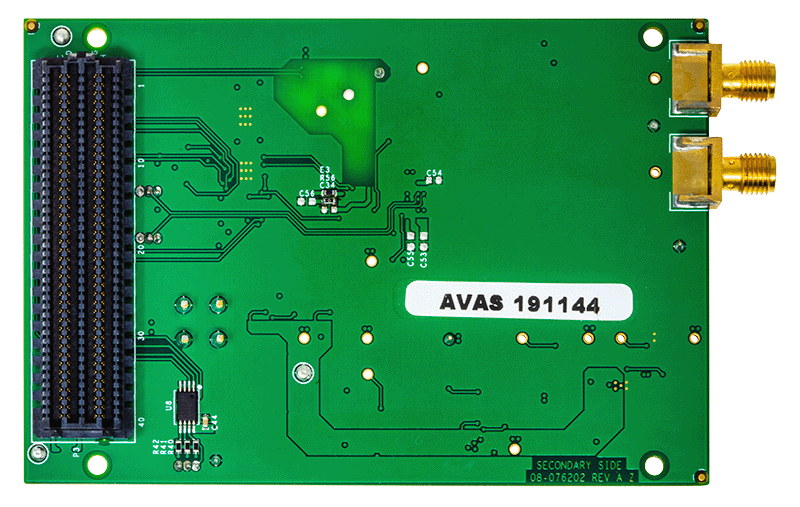

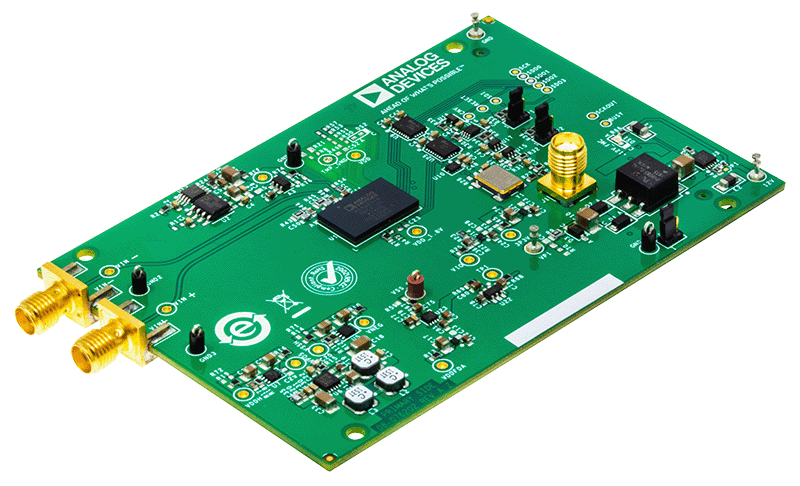

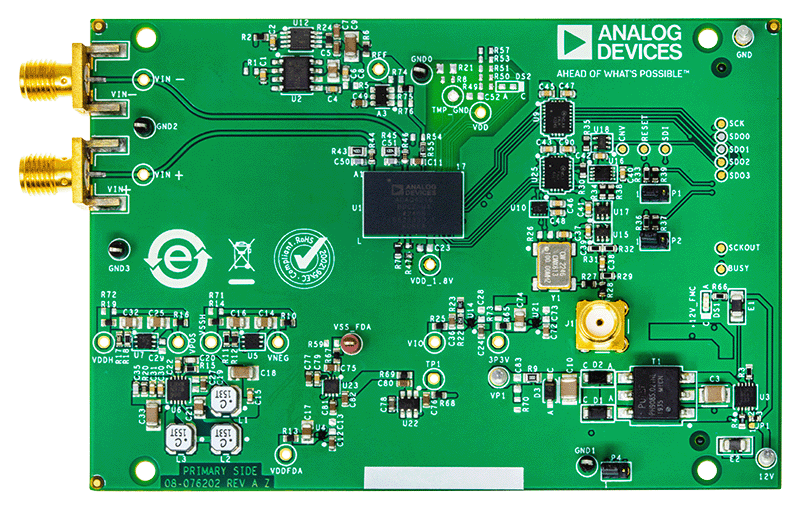

EVAL-ADAQ4216 Board Photo Angle View EVAL-ADAQ4216 Board Photo Top View EVAL-ADAQ4216 Board Photo Bottom View
