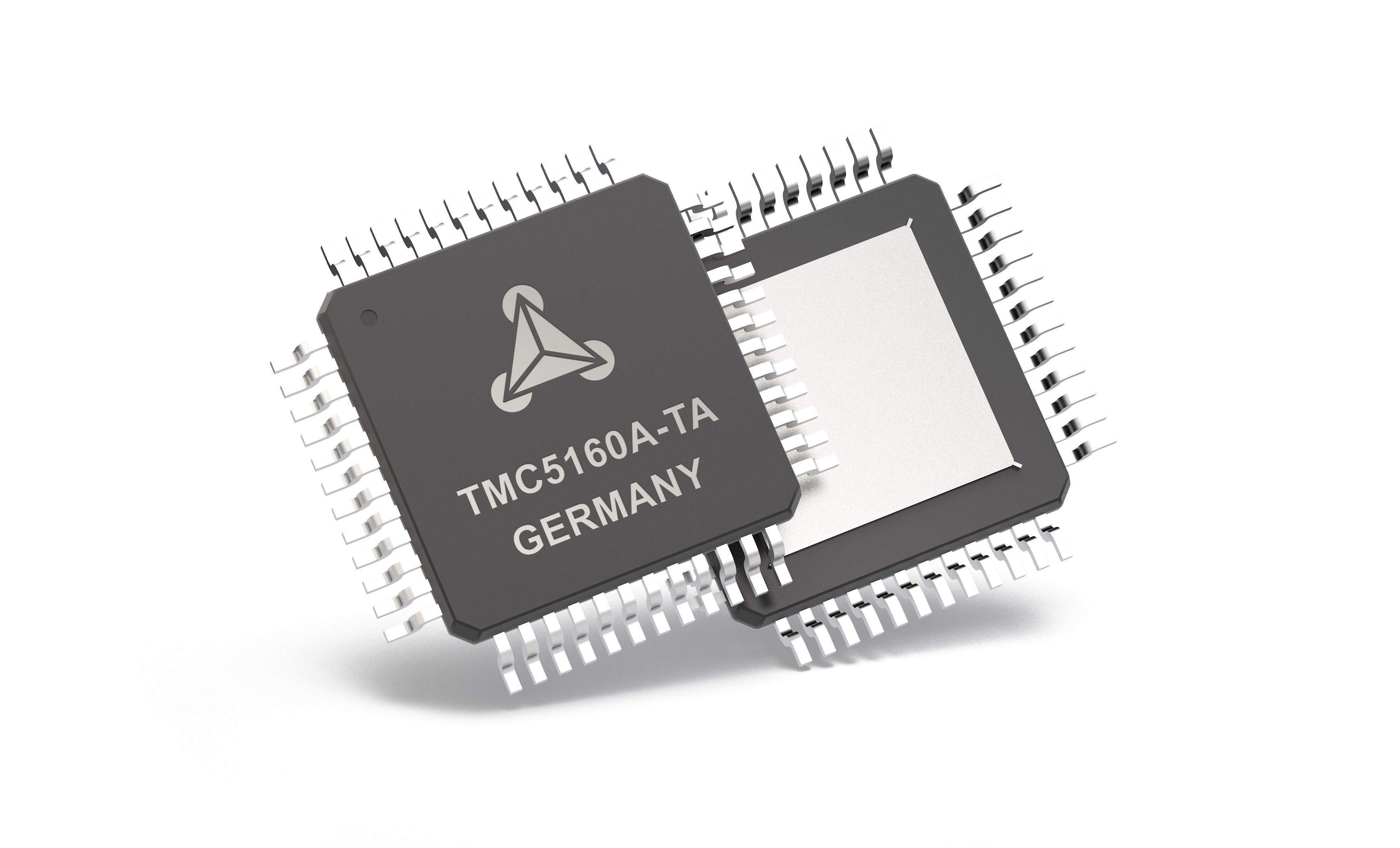

TMC5160

推荐用于新设计

Stepper motor cDriver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, SixPoint ramp controller, CoolStep, StallGuard2, SpreadCycle and StealthChop2

数据手册 (Rev. 1.18) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:
  • 产品详情
  • 参考资料
  • 软件资源
  • 工具及仿真模型
  • 评估套件
  • 最新评论
    •

    产品详情

    • 2-phase stepper motors from 1 to several 10A coil current
    • Motion Controller with SixPoint™ ramp
    • Step/Dir Interface with microstep interpolation MicroPlyer™
    • Voltage Range 8 to 60V DC
    • SPI & Single Wire UART
    • Encoder Interface and 2x Ref.-Switch Input
    • Highest Resolution 256 microsteps per full step
    • StealthChop2™ for quiet operation and smooth motion
    • Passive Braking and freewheeling mode
    • Resonance Dampening for mid-range resonances
    • SpreadCycle™ highly dynamic motor control chopper
    • DcStep™ load dependent speed control
    • StallGuard2™ high precision sensorless motor load detection
    • CoolStep™ current control for energy savings up to 75%
    • Full Protection & Diagnostics
    • Compact Size 7x7mm2 (body) TQFP48 package / 8x8mm² QFN
    TMC5160
    Stepper motor cDriver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, SixPoint ramp controller, CoolStep, StallGuard2, SpreadCycle and StealthChop2
    提问

    参考资料

    数据手册 2

    应用笔记 1

    了解更多

    软件资源

    找不到您所需的软件或驱动?

    申请驱动/软件

    工具及仿真模型

    设计工具 1

    评估套件

    eval board
    schematic 1
    TMC5160-BOB

    Evaluation Board for TMC5160

    立即购买 更多内容

    特性和优点

    • CoolStep™
    • Passive Braking
    • SpreadCycle™
    • Stall Detection
    • Short Detection
    • StallGuard2™
    • StealthChop2™
    • Microstep Table
    • MicroPlyer™
    • Motion Controller
    • Position Mode
    • Velocity Mode
    • SixPoint™ Ramp
    • ABN Encoder Interface
    • 1 to 256 Microsteps
    • 2.8ARMS, 36V

    产品详情

    The TMC5160 breakout board is a development board with the dedicated TMC5160 chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

    eval board
    schematic 2
    TMC5160-EVAL

    Evaluation Board for TMC5160

    立即购买 更多内容

    特性和优点

    • CoolStep™
    • Passive Braking
    • SpreadCycle™
    • Stall Detection
    • Short Detection
    • StallGuard2™
    • StealthChop2™
    • MicroPlyer™
    • Motion Controller
    • Position Mode
    • Velocity Mode
    • SixPoint™ Ramp
    • ABN Encoder Interface
    • 4.7A RMS, 60V

    产品详情

    The TMC5160-EVAL allows you to explore all functions of the TMC5160-TA.

    The TMC5160-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC5160-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

    For diagnosis, all signals between MCU and TMC5160 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.

    All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

    More about the TMCL-IDE
    TMC5160-BOB
    Evaluation Board for TMC5160
    TMC5160-EVAL
    Evaluation Board for TMC5160
