TMC5062

推荐新设计使用

Dual silent stepper motor cDriver 5 to 16V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

数据手册 (Rev. 1.15) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • One or Two 2-phase OR 3-phase stepper motors
  • Drive Capability up to 2 x 1.1A or 1 x 2.2A RMS coil current
  • Motion Controller with SixPoint™ ramp
  • Voltage Range 4.75 to 22V DC
  • SPI & Single Wire UART
  • Dual ABN Encoder Interface
  • 2x Ref.-Switch input per axis
  • Highest Resolution 256 microsteps per full step
  • Full Protection & Diagnostics
  • DcStep™ load dependent speed control – no step loss
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ load dependent current saves up to 75% energy
  • SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing with additional ChopSync2™

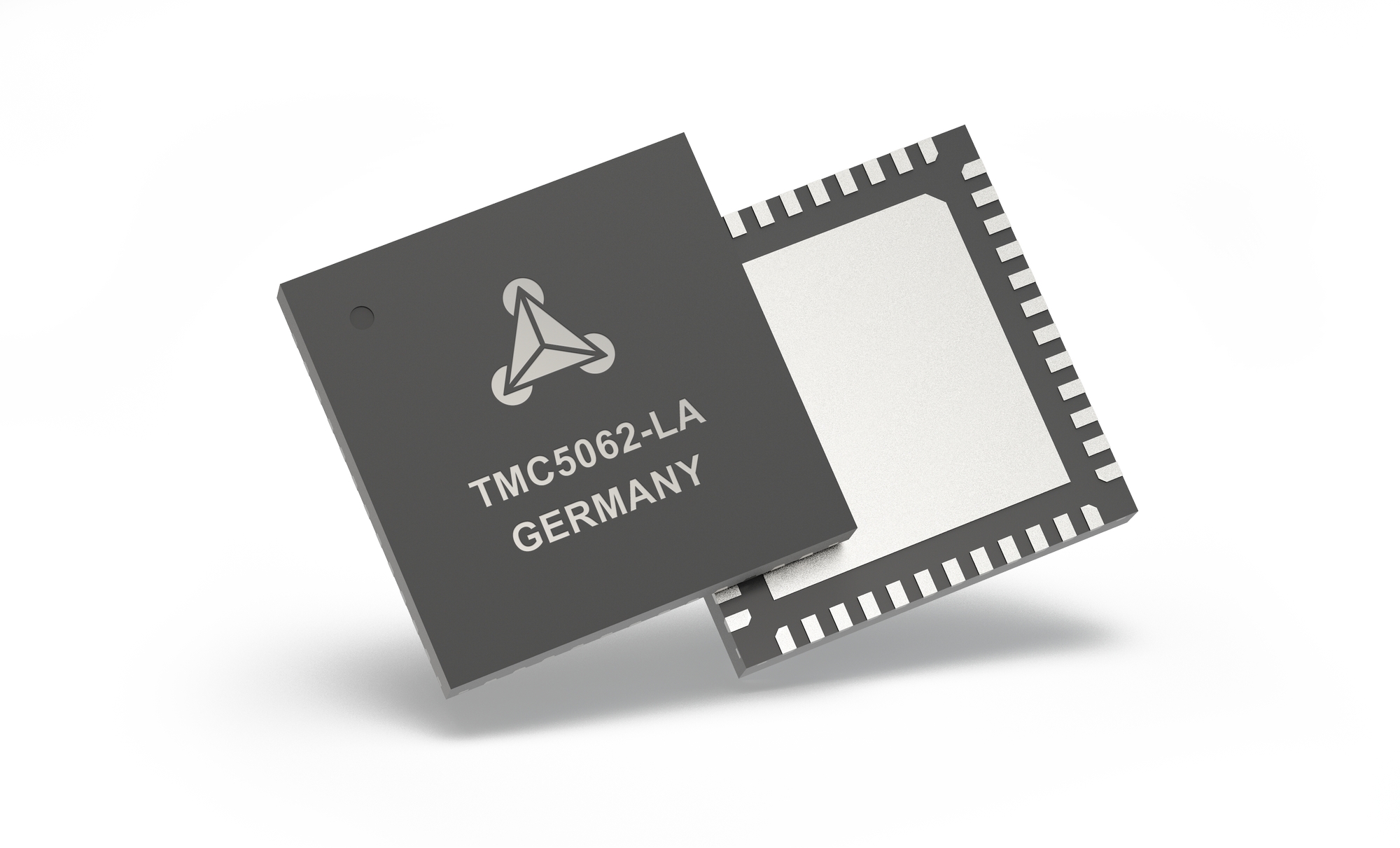

  • Compact Size 7x7mm² QFN48 package
TMC5062
Dual silent stepper motor cDriver 5 to 16V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop
tmc5062-la tmc5062-la tmc5062-la-v2
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

应用笔记 6

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1
TMC5062-EVAL

Evaluation Board for TMC5062

立即购买 更多内容

特性和优点

  • StallGuard2™
  • CoolStep™
  • ChopSync™
  • SpreadCycle™
  • Short Detection
  • Stall Detection
  • Microstep Table
  • DcStep™
  • 2 Motors
  • Motion Controller
  • Position Mode
  • Velocity Mode
  • SixPoint™ Ramp
  • ABN Encoder Interface
  • 2x1.1ARMS, 18V

产品详情

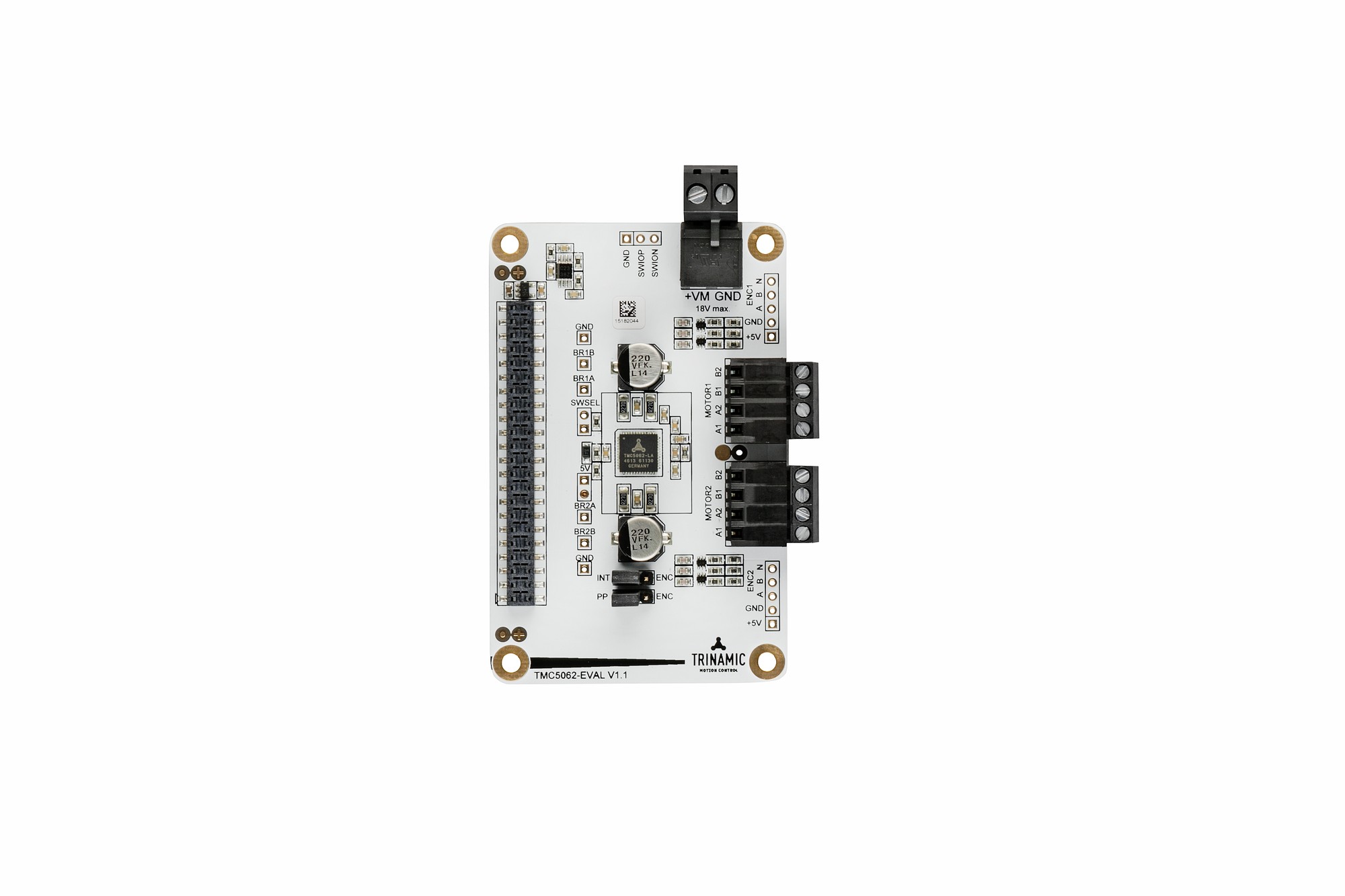

The TMC5062-EVAL allows you to explore all functions of the TMC5062-LA.

The TMC5062-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC5062-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC5062 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

The proven and tested design files of the Evaluation Board can be downloaded free of charge and used or replicated without any restrictions. The Design is thermally optimized and approved.
TMC5062-EVAL
Evaluation Board for TMC5062
tmc5062-eval
