MAX20804
推荐新设计使用4A, 3MHz, 2.7V to 16V, Step-Down Switching Regulator
Shrink your new power designs footprint with compact and fast switching regulator
- 产品模型
- 2
产品详情
- High Power Density with Low Component Count
- Single-Supply Operation with Integrated LDO for Bias Generation

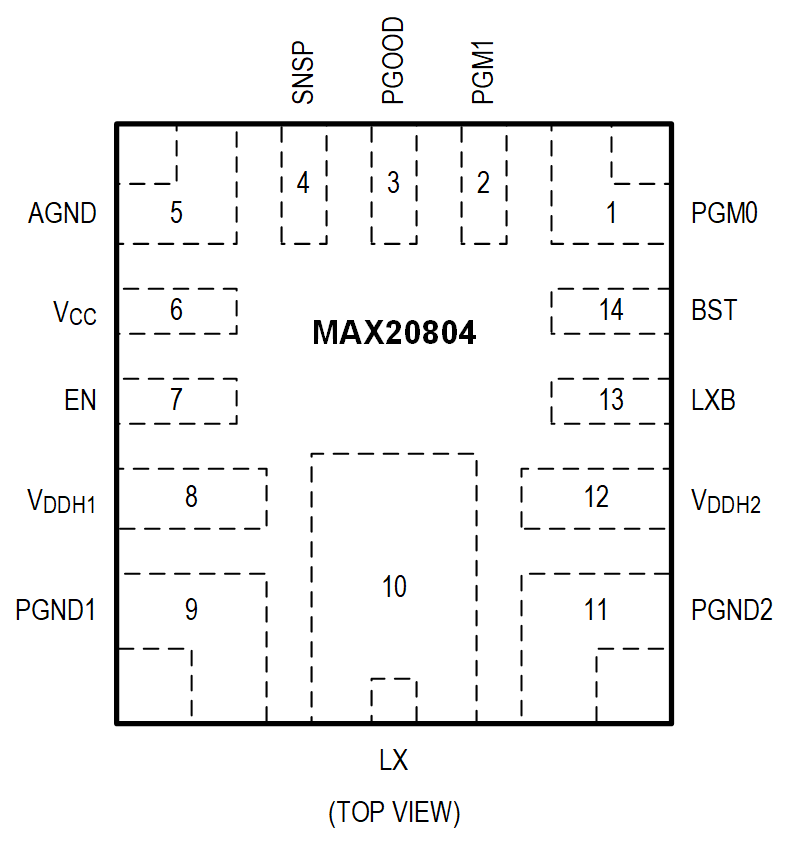

- Compact 3.0mm x 2.5mm, 14-Pin, FC2QFN Package
- Internal Compensation
- Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 3MHz Configurable Switching Frequency
- -40°C to +150°C Junction Temperature Range
- Two Pin-Strap Programming Pins to Select Different Configurations
- Optimized Performance and Efficiency
- 91.3% Peak Efficiency with VDDH = 12V,VOUT = 1.8V, and fSW = 1MHz
- Selectable AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency

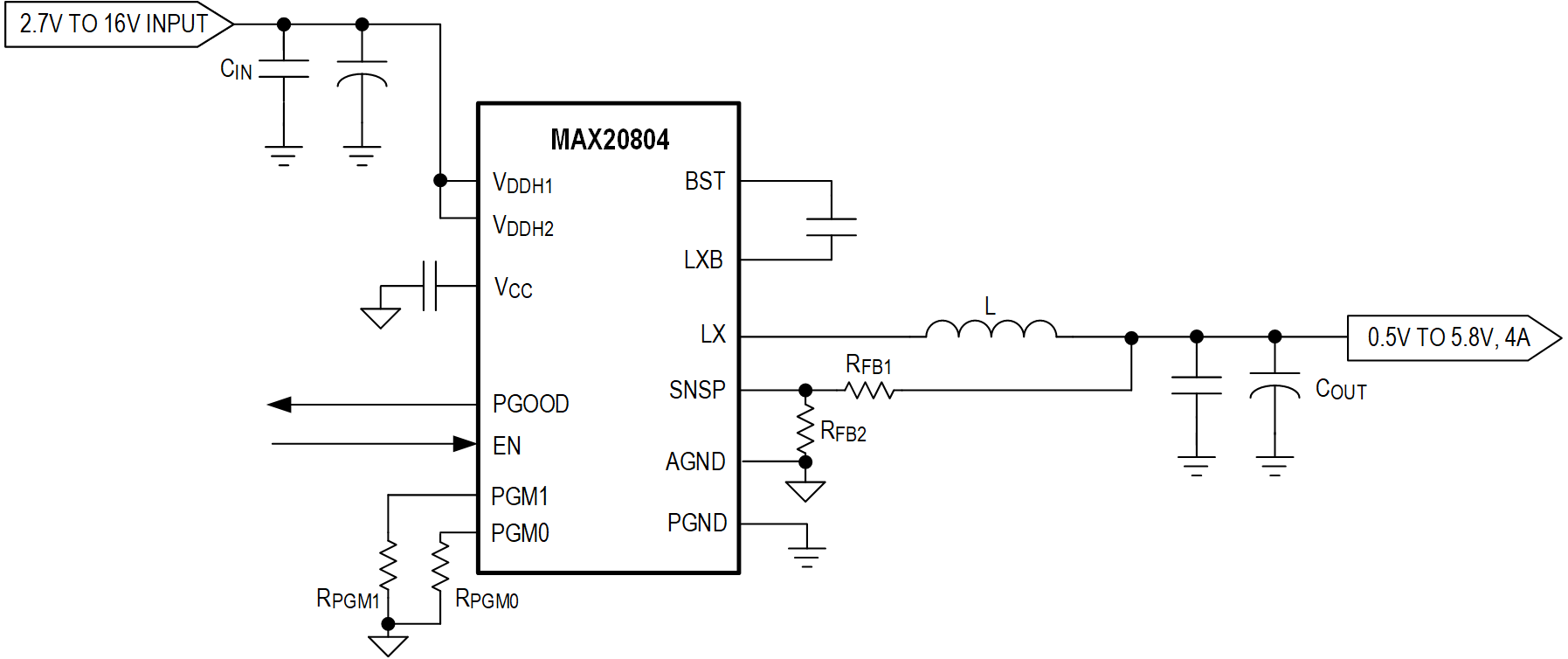

- The MAX20804 is a fully integrated, highly efficient, step-down DC-DC switching regulator. It is able to operate from 2.7V to 16V input supplies, and each output can be regulated from 0.5V to 5.8V, delivering up to 4A of load current.
- Communications Equipment
- Networking Equipment
- Servers and Storage Equipment
- Point-of-Load Voltage Regulators
The switching frequency of this device can be configured from 500kHz to 3.0MHz and provides the capability of optimizing the design in terms of solution size and performance.
The MAX20804 utilizes fixed-frequency, current-mode control with internal compensation. The MAX20804 features a selectable advanced modulation scheme (AMS) to provide improved dynamic load-transient performance. The device also features selectable discontinuous current-mode (DCM) operation to improve light load efficiency. Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground.
The MAX20804 has an internal 1.8V LDO output to power the gate drives and internal circuitry (VCC).
The MAX20804 integrates multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

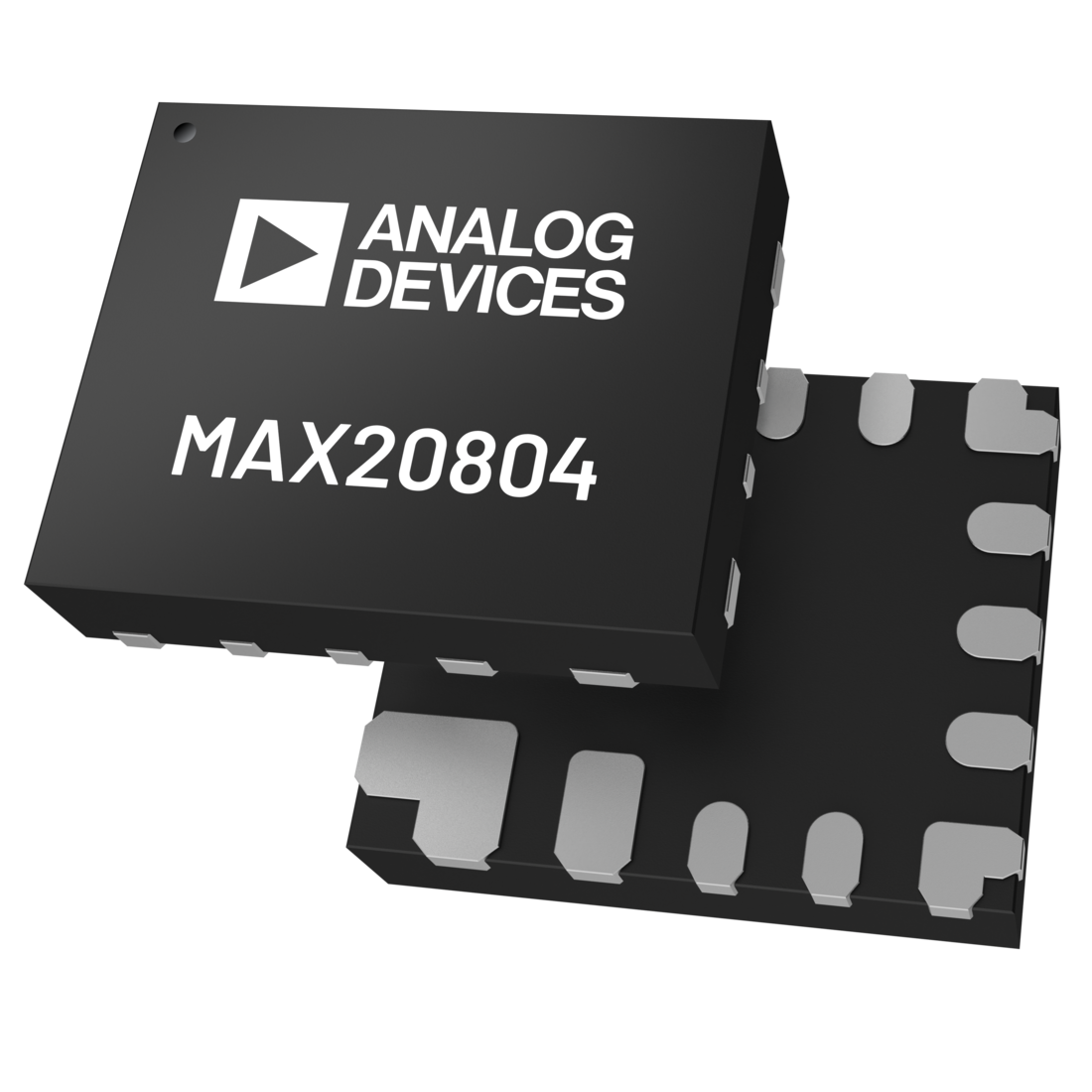

The MAX20804 is available in a compact 3.0mm x 2.5mm FC2QFN package that supports -40°C to +150°C junction temperature operation. It is footprint compatible with the MAX20806 and MAX20807.
APPLICATIONS
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX20804TFD+ | N/A | ||
| MAX20804TFD+T | N/A |
