LTM4640
量产20VIN, 20A Step-Down DC-to-DC μModule Regulator
- 产品模型
- 2
产品详情
- Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
- Wide Input Voltage Range: 3.1V to 20V
- 0.6V to 3.3V Output Voltage
- Up to 20A DC output current
- ±1.5% Maximum Total DC Output Voltage Error
- Differential Remote Sensing Amplifier
- Fast Transient Response
- External Frequency Synchronization

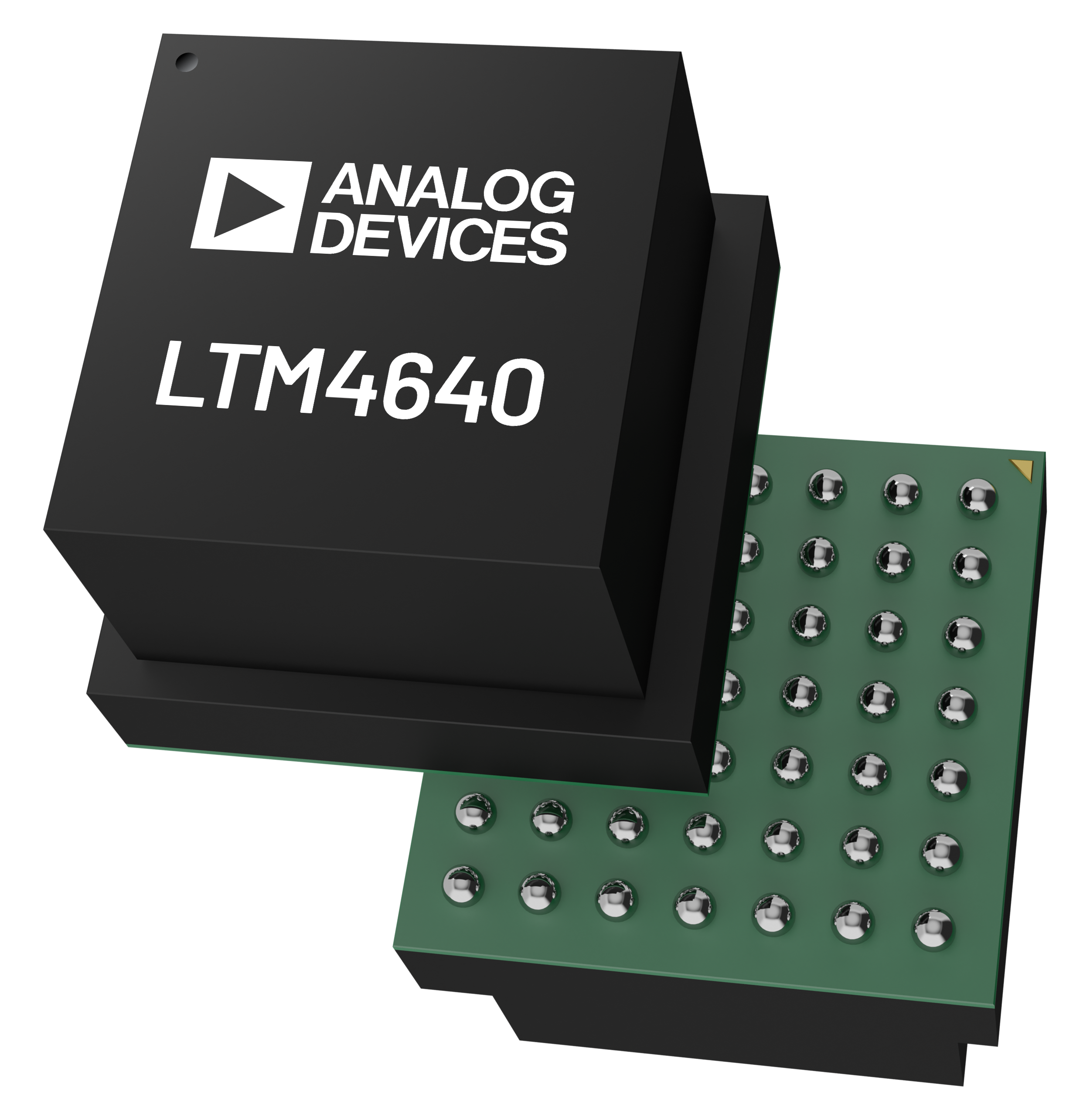

The LTM4640 is a complete 20A step-down switching mode power μModule® (micromodule) regulator in a tiny 6.25mm × 6.25mm × 5.07mm BGA package. The package includes the switching controller, the power MOSFETs, an inductor, and the supporting components. Operating over an input voltage range of 3.1V to 20V, the LTM4640 supports an output voltage range of 0.6V to 3.3V, set by a single external resistor. Its high-efficiency design delivers up to 20A continuous output current. Only bulk input and output capacitors are needed.
The LTM4640 supports selectable discontinuousconduction mode (DCM) operation and output voltage tracking for supply rail sequencing. Its high switching frequency and controlled on-time valley current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. Fault protection features include overvoltage and overtemperature protection.
The LTM4640 is available with a RoHS-compliant terminal finish.
APPLICATIONS
- Telecom, Datacom, Networking, and Industrial Equipment
- Medical Diagnostic Equipment
- Data Storage Rack Units and Cards
- Test and Debug Systems
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

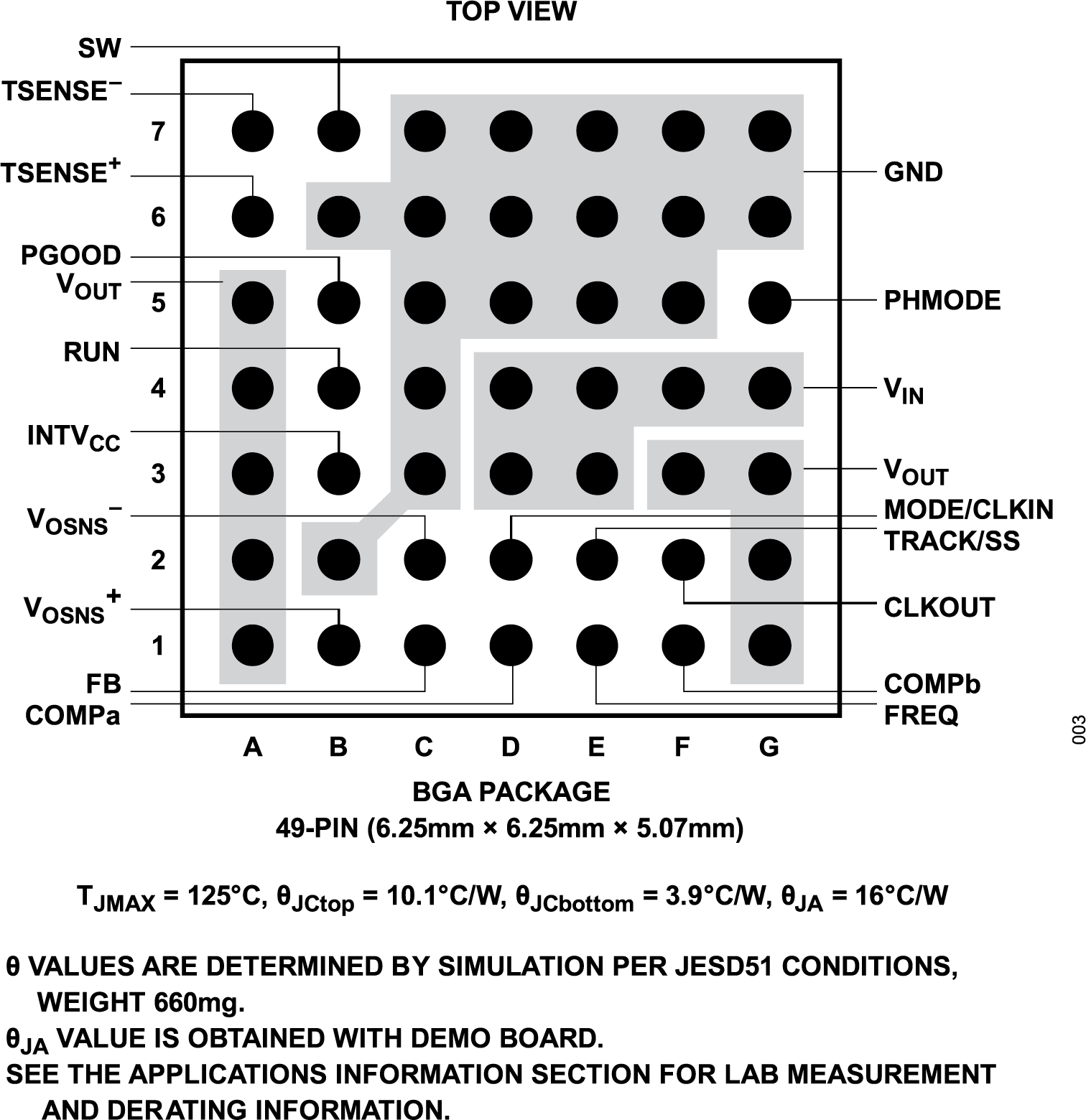

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LTM4640EY#PBF | 49-Lead (6.25mm × 6.25mm × 10.12mm) | ||
| LTM4640IY#PBF | 49-Lead (6.25mm × 6.25mm × 10.12mm) |
这是最新版本的数据手册

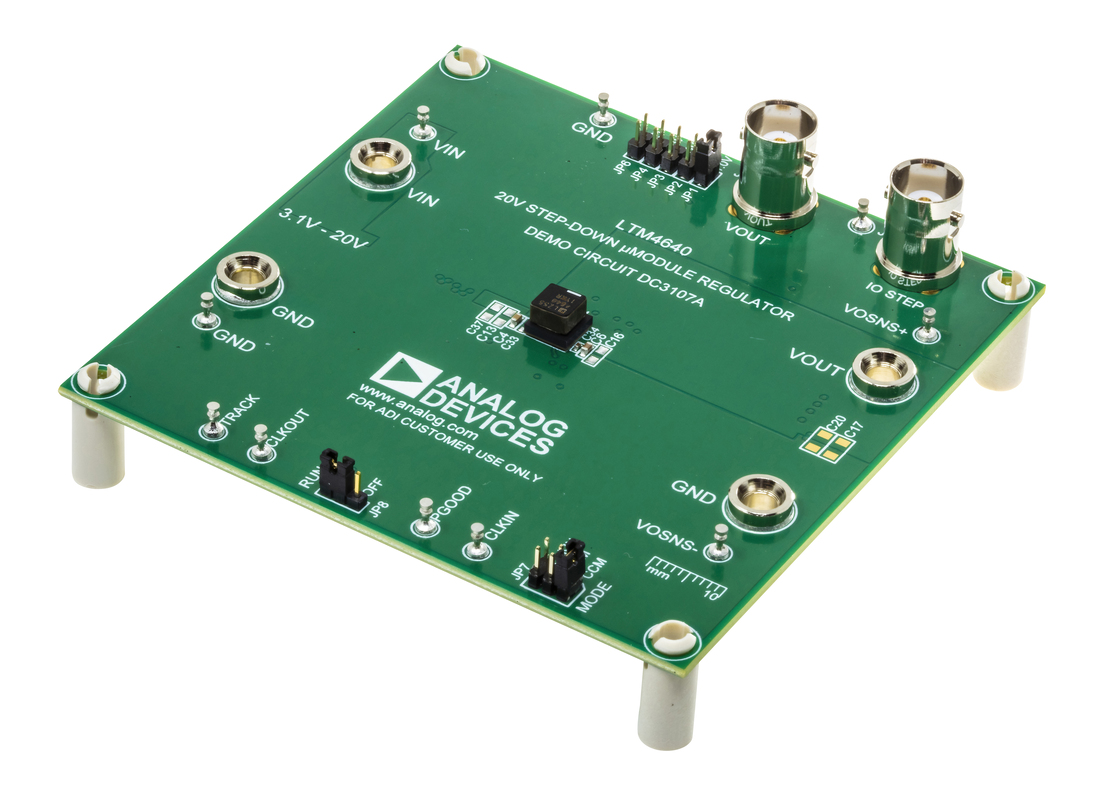

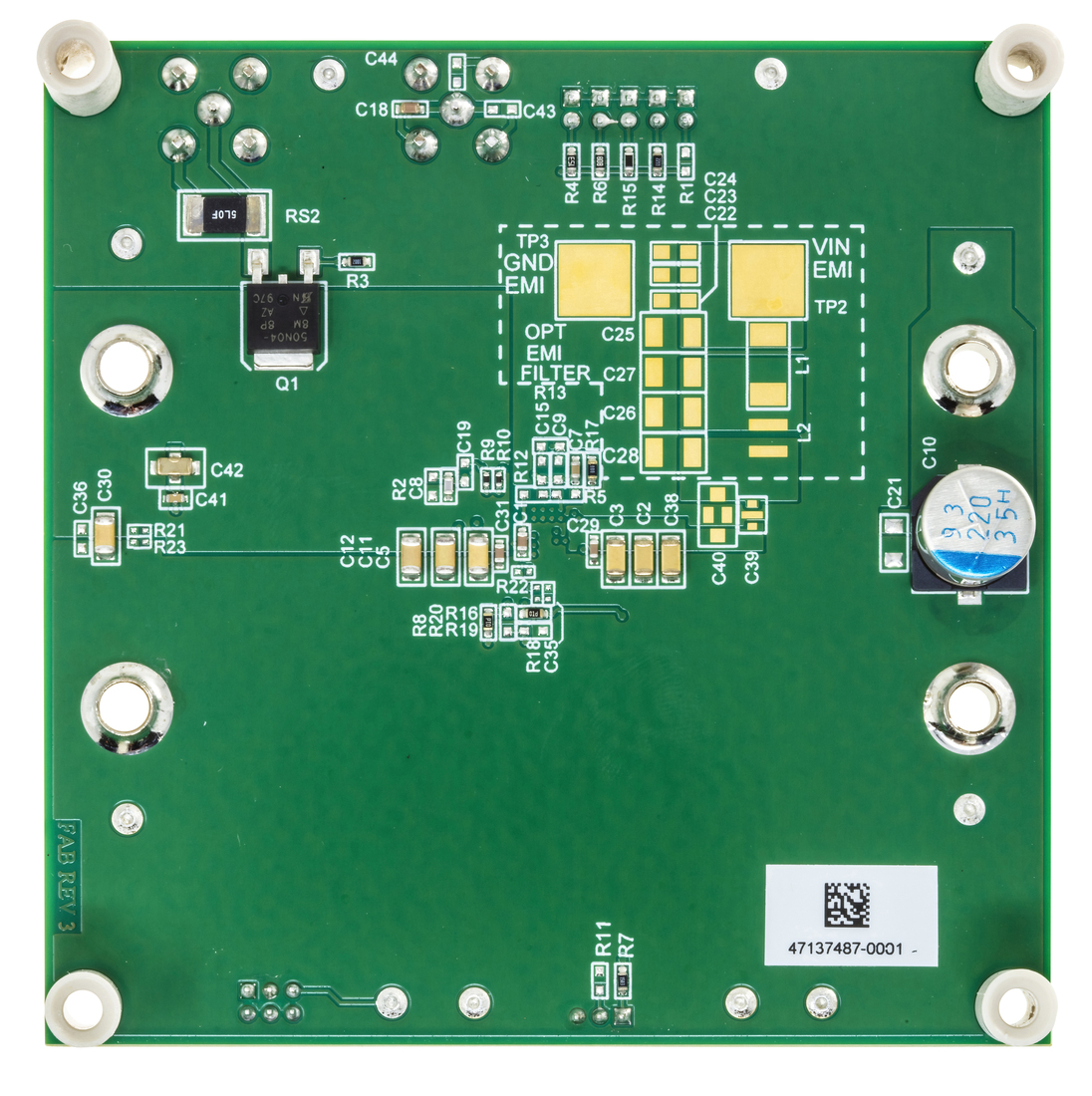

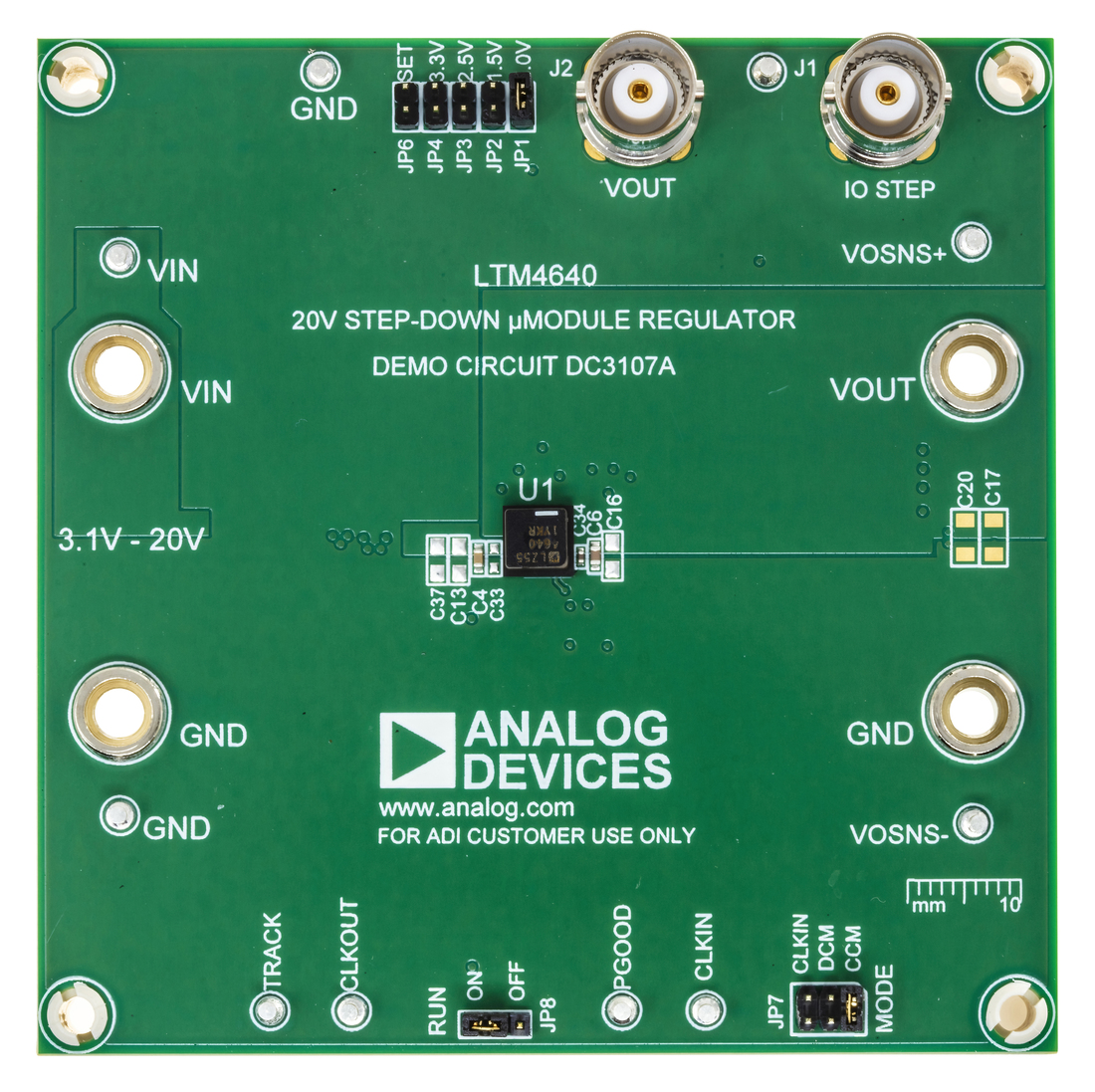

评估套件
