ADPA7007
推荐新设计使用GaAs, pHEMT, MMIC,1 W Power Amplifier, 18 GHz to 44 GHz
- 产品模型
- 4
产品详情
- Output P1dB: 31 dBm typical at 22 GHz to 36 GHz
- PSAT: 32 dBm typical at 22 GHz to 36 GHz
- Gain: 21.5 dB typical at 22 GHz to 36 GHz
- Output IP3: 41 dBm typical at 22 GHz to 44 GHz
- Supply voltage: 5 V typical at 1400 mA maximum
- 50 Ω matched input and output

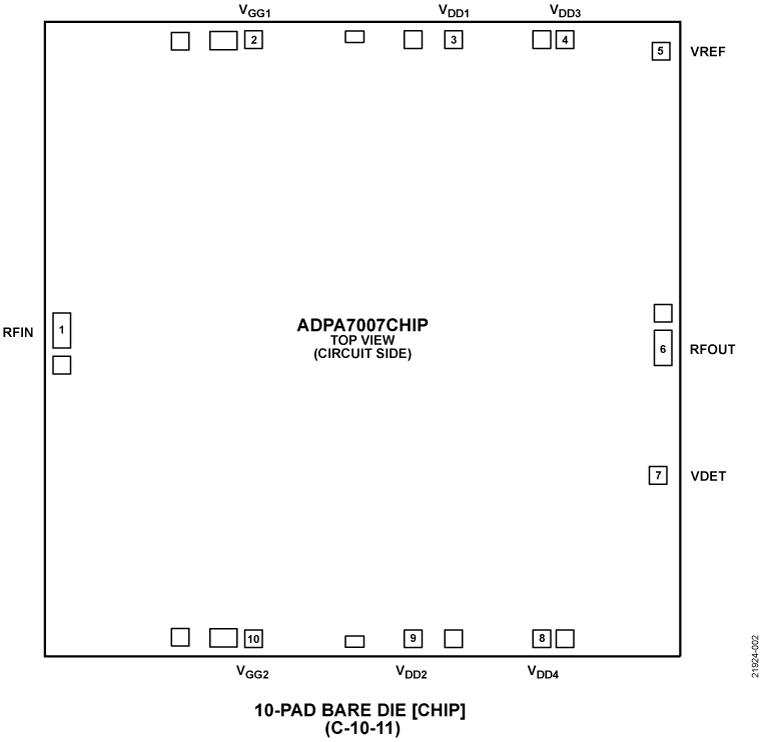

- Die size: 3.610 mm × 3.610 mm × 0.102 mm

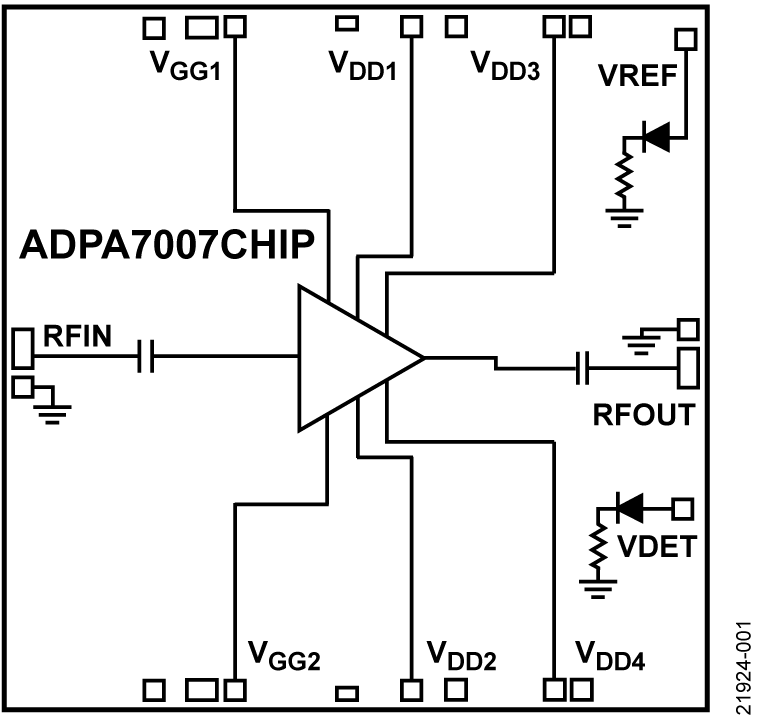

The ADPA7007CHIP is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), distributed power amplifier that operates from 18 GHz to 44 GHz. The amplifier provides a gain of 21.5 dB, an output power for 1 dB compression (P1dB) of 31 dBm, and a typical output thirdorder intercept (IP3) of 41 dBm. The ADPA7007CHIP requires 1400 mA from a 5 V supply on the supply voltage (VDD) and features inputs and outputs that are internally matched to 50 Ω, facilitating integration into multichip modules (MCMs). All data was taken with the chip connected via two 0.025 mm wire bonds that are at least 0.31 mm long.
Applications
- Military and space
- Test instrumentation
参考资料
数据手册 2
用户手册 1
应用笔记 2
评估设计文件 1
产品选型指南 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADPA7007AEHZ | 18-Lead LCC (7mm x 7mm x 1.32mm w/EP) | ||
| ADPA7007AEHZ-R7 | 18-Lead LCC (7mm x 7mm x 1.32mm w/EP) | ||
| ADPA7007C-KIT | CHIPS OR DIE | ||
| ADPA7007CHIP | CHIPS OR DIE |
这是最新版本的数据手册
工具及仿真模型
评估套件

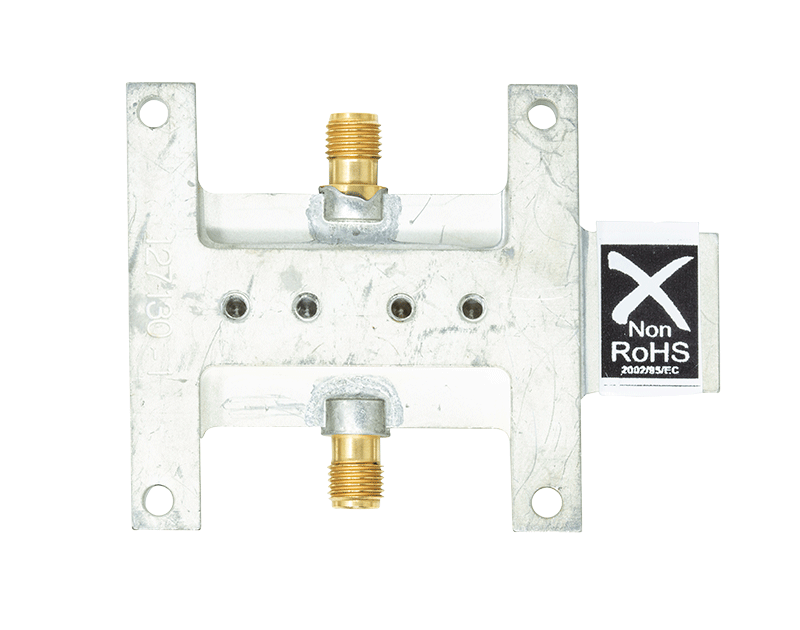

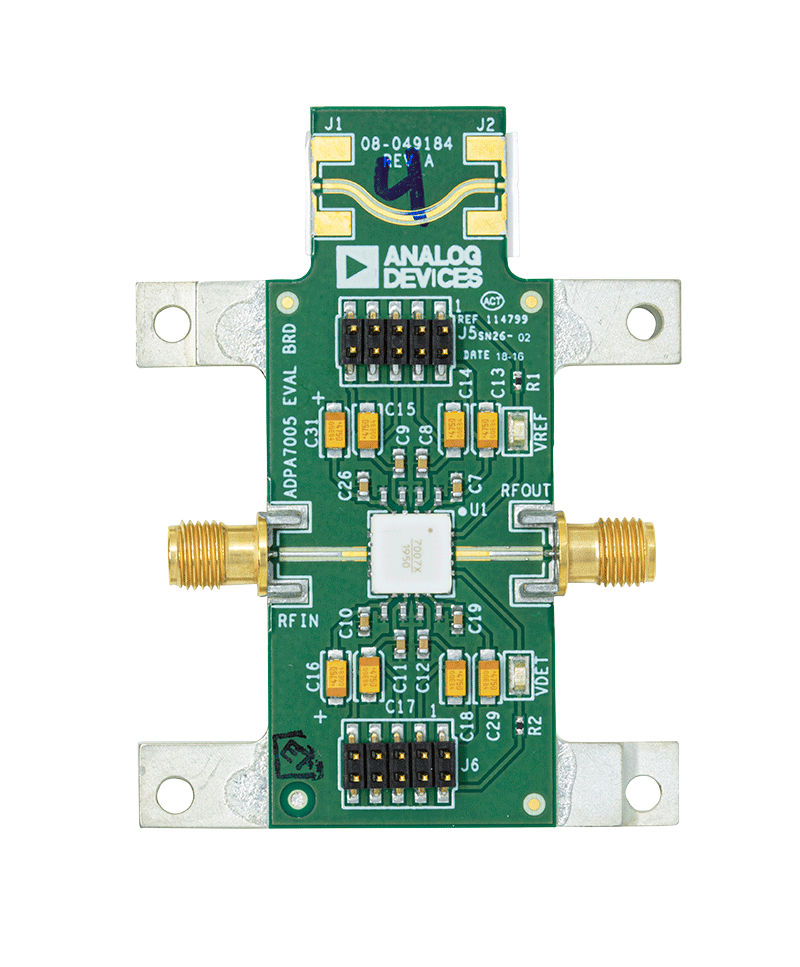

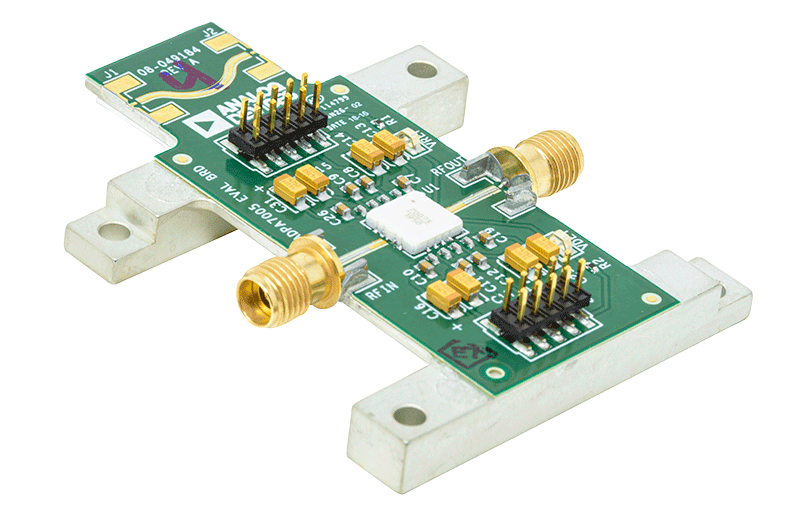

ADPA7007 评估板
