ADPA1116

推荐新设计使用

0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier

产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • Internally matched, 0.3 GHz to 6 GHz, 39.5 dBm, GaN power amplifier
  • RF input and RF output AC-coupled
  • Integrated drain bias inductors
  • Output power: 39.5 dBm typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
  • Power gain: 23.5 dB typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
  • PAE: 40% typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
  • Small signal gain: 33.5 dB typical from 0.5 GHz to 5 GHz
  • Supply voltage: 28 V
  • Quiescent current: 300 mA
ADPA1116
0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier
ADPA1116 Functional Block Diagram ADPA1116 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型


评估套件

eval board
EVAL-ADPA1116

Evaluating the ADPA1116 0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier

特性和优点

  • 2-layer Rogers 4350B evaluation board with heat spreader
  • End launch, SMA, RF connectors
  • Through calibration path (depopulated)

产品详情

The ADPA1116-EVALZ is a 2-layer printed circuit board (PCB) fabricated from a 10 mil thick Rogers 4350B copper clad mounted to an aluminum heat spreader. The heat spreader provides thermal relief to the ADPA1116 and mechanical support to the PCB. Mounting holes on the heat spreader allow it to be attached to larger heatsinks for improved thermal management. The RFIN and RFOUT ports are populated by Subminiture Version A (SMA) female coaxial connectors, and their respective RF traces are of 50 Ω characteristic impedance. The ADPA1116-EVALZ is populated with components suitable for use over the entire operating temperature range of the ADPA1116.

The RF traces are 50 Ω grounded coplanar waveguide, and the package ground leads connect directly to the ground plane. Multiple vias are used to connect the top and bottom ground planes. Multiple vias under the package paddle ensure adequate electrical and thermal conduction.

The power supply decoupling capacitors shown in Figure 6 represent the configuration that was used to characterize the device. For full details on the ADPA1116, see the ADPA1116 data sheet, which should be consulted in conjunction with this user guide when using the ADPA1116-EVALZ evaluation board.

EVAL-ADPA1116
Evaluating the ADPA1116 0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier

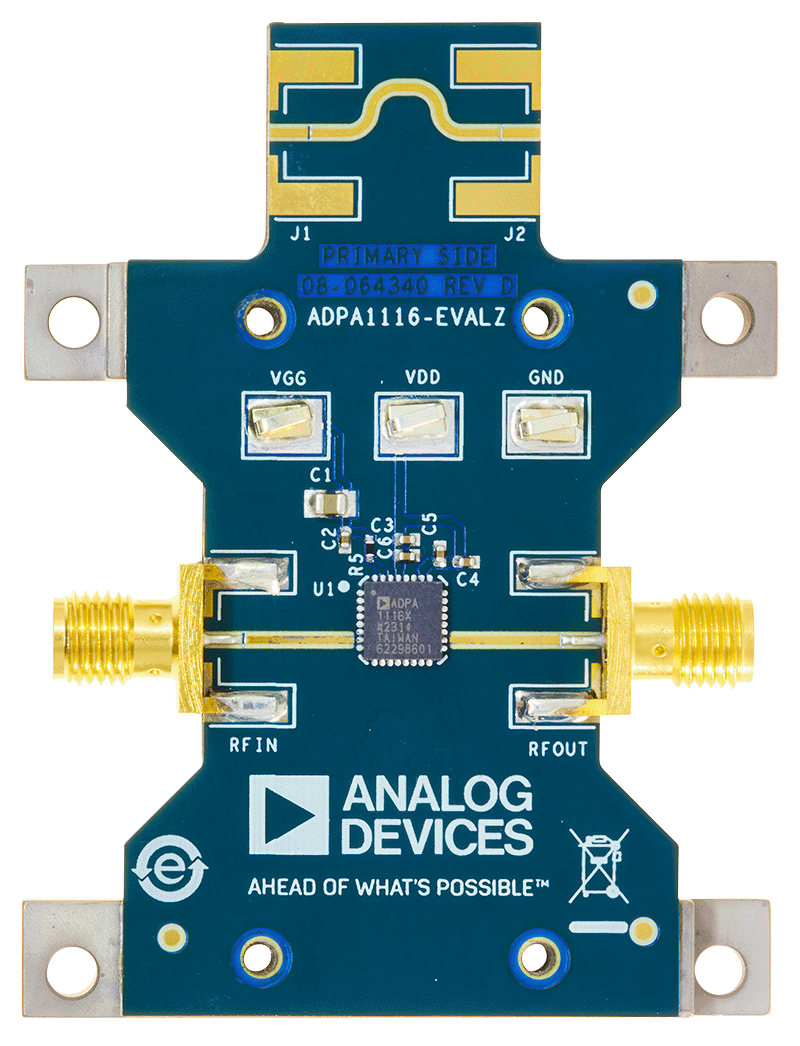

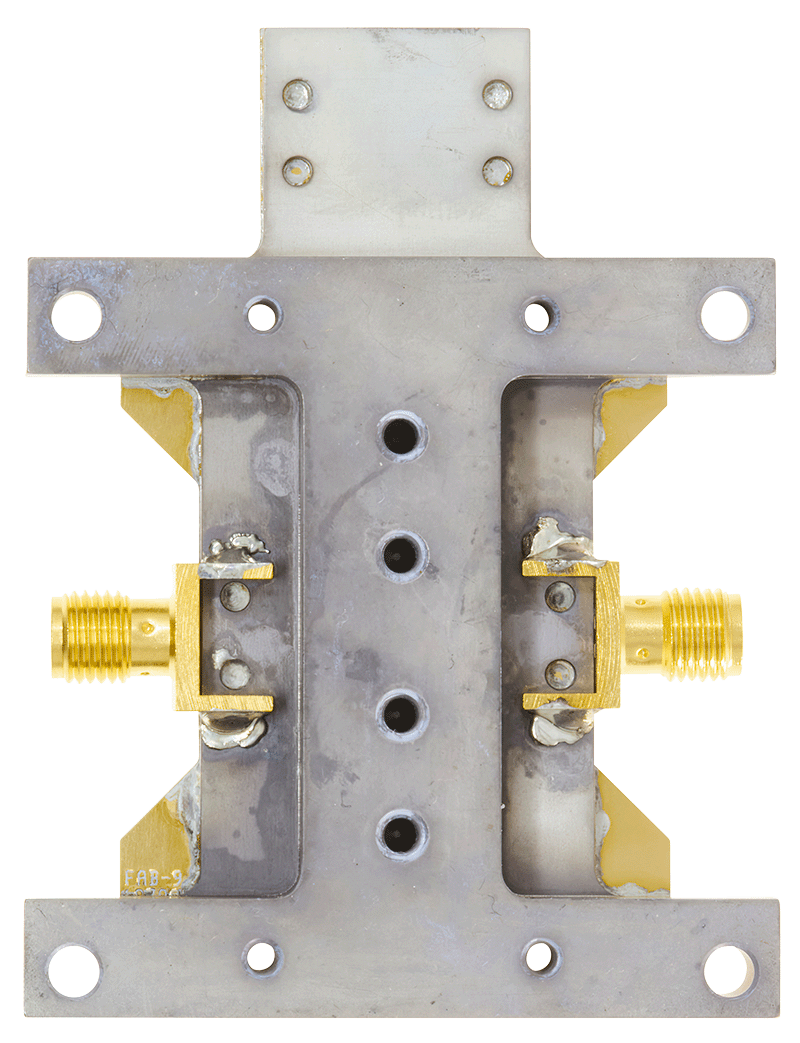

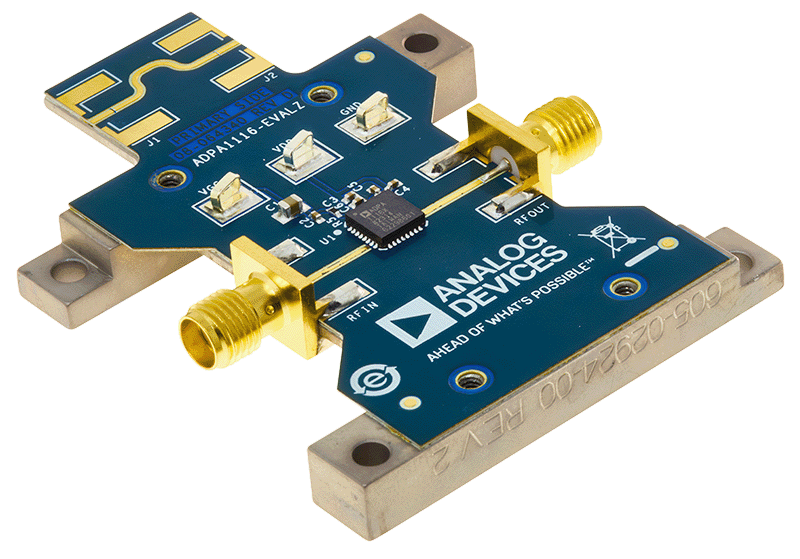

EVAL-ADPA1116 Board Photo Angle View EVAL-ADPA1116 Board Photo Top View EVAL-ADPA1116 Board Photo Bottom View
